Exmark Quest 4500-451 - 42 DECK GROUP

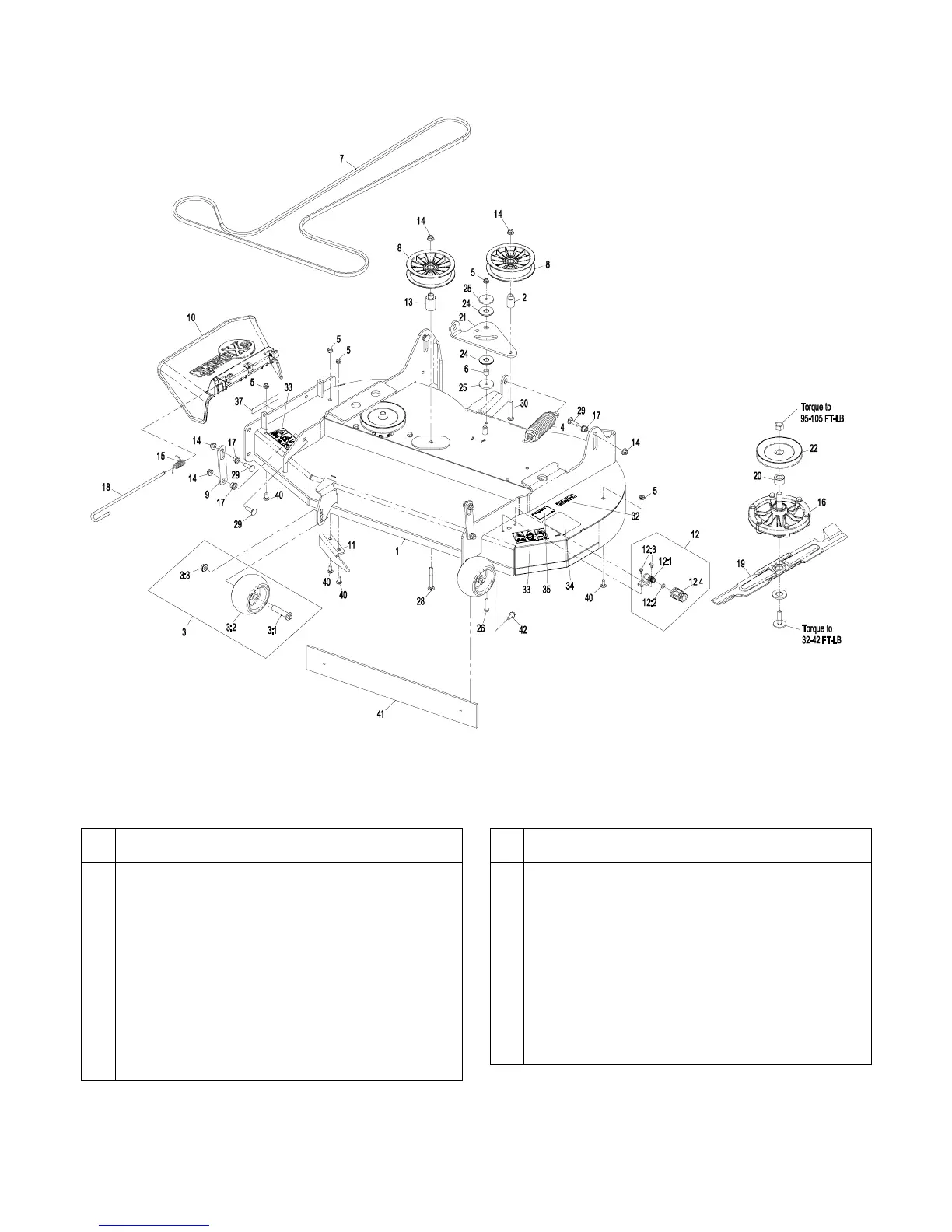

42” DECK GROUP
-3-
Item Part No. Description Qty.
1 109-9971 Asm, Deck W/ Decals ............................1
2 1-413113 Bushing-Idler..........................................1
3 109-6388 Kit, Anti-Scalp Roller ..............................2
3:1 112-3977 Bolt, Shoulder ........................................1
3:2 1-603299 Roller-Scalp, Anti ...................................1
3:3 104-8301 Nut, Nyloc 3/8-16 Flg .............................1
4 103-3330 Spring, Extension...................................1
5 104-8300 Nut, Nyloc 5/16-18 Flg ...........................5
6 108-1479 Spacer ...................................................1
7 108-6645 Belt-V.....................................................1
8 109-0977 Pulley, Idler 5"........................................2
9 109-3410 Hanger, Deck.........................................2
10 109-5151 Deflector, Discharge...............................1
Item Part No. Description Qty.
11 109-5498-03 Baffle, Discharge ................................... 1
12 109-6393 Washout Port Kit....................................1
12:1 95-2747 Fitting-Washout...................................... 1
12:2 46-6290 O-Ring................................................... 1
12:3 93-6083 Screw, HWH 1/2-20 x 1/2 Taptite...........2
12:4 95-3270 Connector-Hose..................................... 1
13 109-6572 Bushing-Idler ......................................... 1
14 104-8301 Nut, Nyloc 3/8-16 Flg.............................8
15 109-6886 Spring-Torsion....................................... 1
16 109-8744 Complete Cutter Housing Asm............... 2
17 109-8788 Bushing-Flanged.................................... 6
18 109-8854 Pin-Chute...............................................1
Exmark black touch up spray paint – gloss black.
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
V Includes all item shown on pages 3, 4 & 7. Does not include struts or strut hardware.
