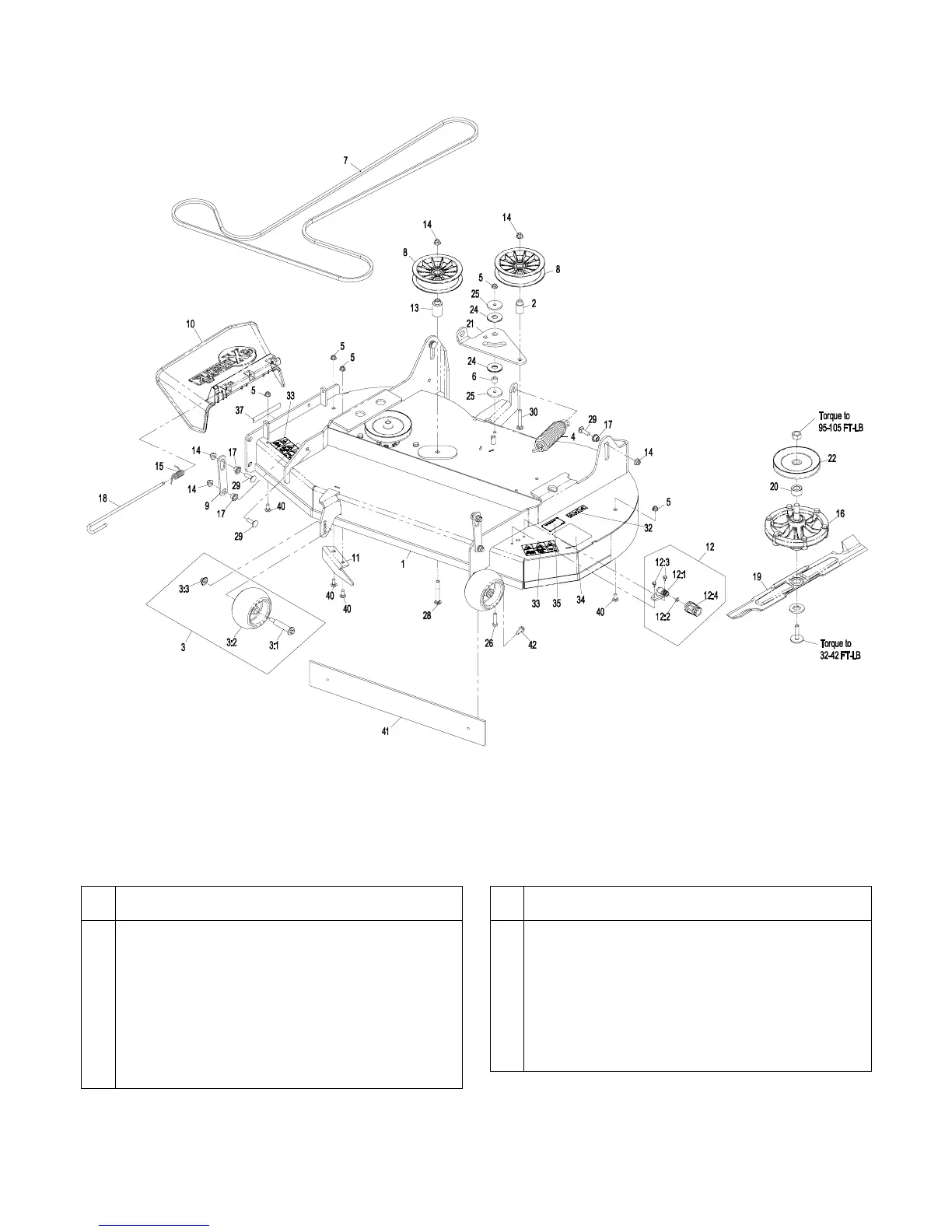

42” DECK GROUP (cont.)
-4-
Item Part No. Description Qty.
19 109-9982 Blade, High Lift Notched.........................2
20 109-9993 Spacer, Deck Sheave ............................2
21 109-9996-03 Arm, Idler...............................................1
22 110-6864 Pulley.....................................................2
24 114-0463 Washer-Friction, Composite...................2
25 115-2455 Spacer ...................................................2
26 322-7 Screw, HH 5/16-18 x 1 1/2 .....................1
28 109-6868 Bolt, Carriage 3/8-16 x 3 ........................1
29 3231-25 Bolt, Carriage 3/8-16 x 1 1/4 ..................6
30 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 ..................1
Item Part No. Description Qty.
32 109-6459 Decal-Warning, Belt Shield....................2
33 110-6691 Decal-Danger ........................................2
34 109-6036 Decal-Roller, Anti-Scalp......................... 1
35 116-0533 Decal, Blade Torque ..............................1
37 93-7009 Decal-Danger, Deflector ........................ 1
40 3230-23 Bolt, Carriage 5/16-18 x 3/4, short neck 4
41 116-1557-03 Weight................................................... 1
42 32144-41 Screw, HWH 3/8-16 x 7/8 Taptite...........2
V
109-9970 Asm, 42 Deck Complete
Exmark black touch up spray paint – gloss black.
V Includes all item shown on pages 3, 4 & 9. Does not include struts or strut hardware.
