1.4 EBC30 control components
The EBC30 control is built up around a main board that controls all basic functions. In addition, a Triac board and a relay
board, are available for special functions. The main board controls draft/exhaust and air supply/ intake functions. It can
provide 0-10 V DC signals for Variable Frequency Drives (VFDs), an actuator or other devices accepting a 0-10 V DC control
signal. It also allows interlock of up to 6 appliances for control circuit voltages between 12 V AC and 240 V AC/12 V DC and
240 V DC, and has an integrated Proven Draft Switch (PDS) function. An external PDS is therefore not required.

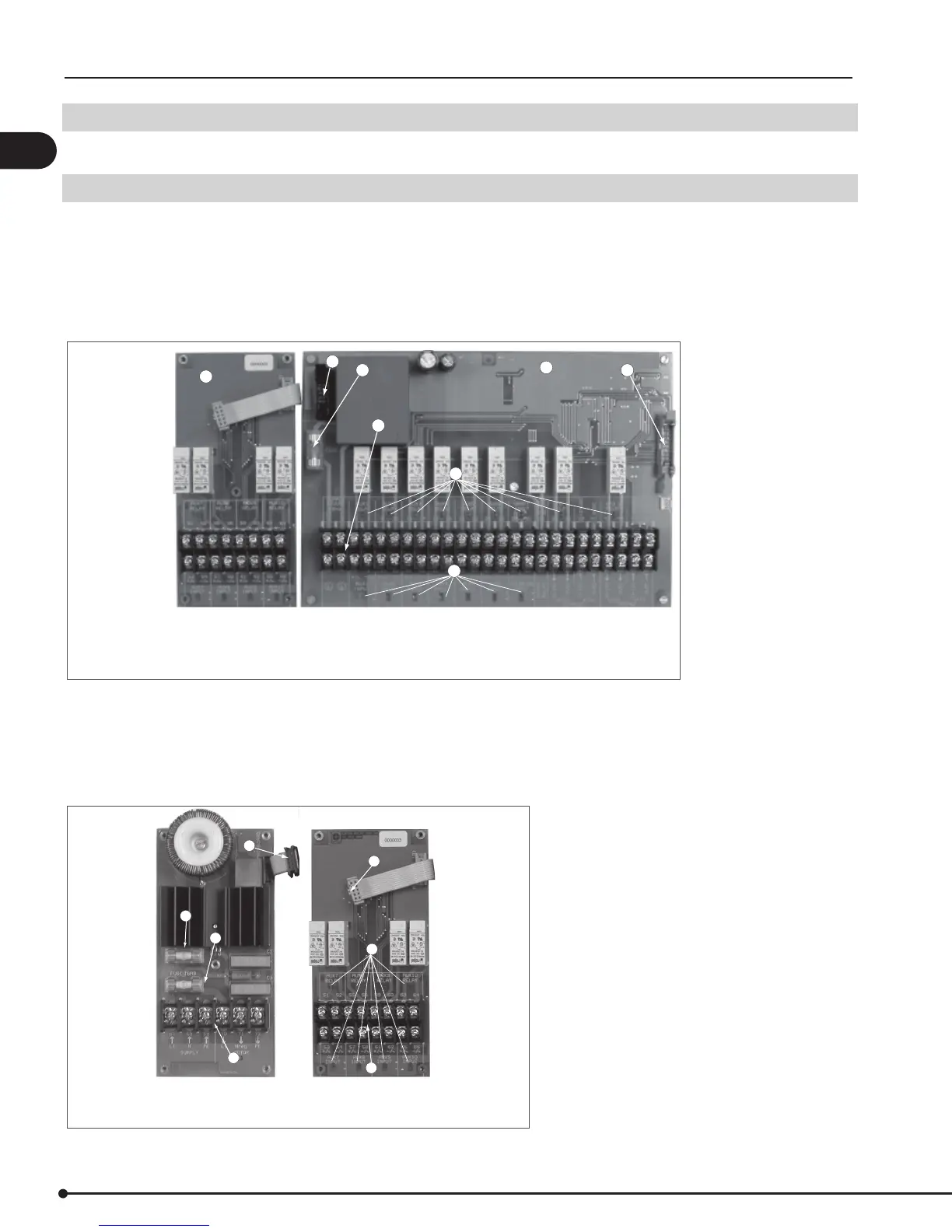

The main board layout is shown below in g. 1:
1. Mainboard
2. Relay Board or Triac Board (optional)
3. Terminals
4. Fuse protection for mainboard
1
2
6
4
3
7
7
5
5. Quick-connect socket to keypad and display
6. Quick-connect socket to add-on board
7. Operating status indicators
Main Board
Fig. 1
Two add-on boards are available. A Triac board is available so the control can operate a 1 x 120 V fan or ventilator without
the need for an external drive. A Relay Board is available for applications with more than 6 appliances. The control can only
accept a single add-on board at a time. If there is a need for using the Triac board as well as the Relay board, install the Triac
in the EBC30 and use an ES12, Relay Box in lieu of the Relay Board.
Board layouts for the Triac and the Relay Boards are shown below in g. 2:
1. Terminals
2. Fuse protection
3. Spare fuse
4
4
1
5
2
1
3
Triac Board
Relay Board
4. Quick-connect plug
5. Operating status indicators
Fig. 2
4
EBC30 3002180 100315
