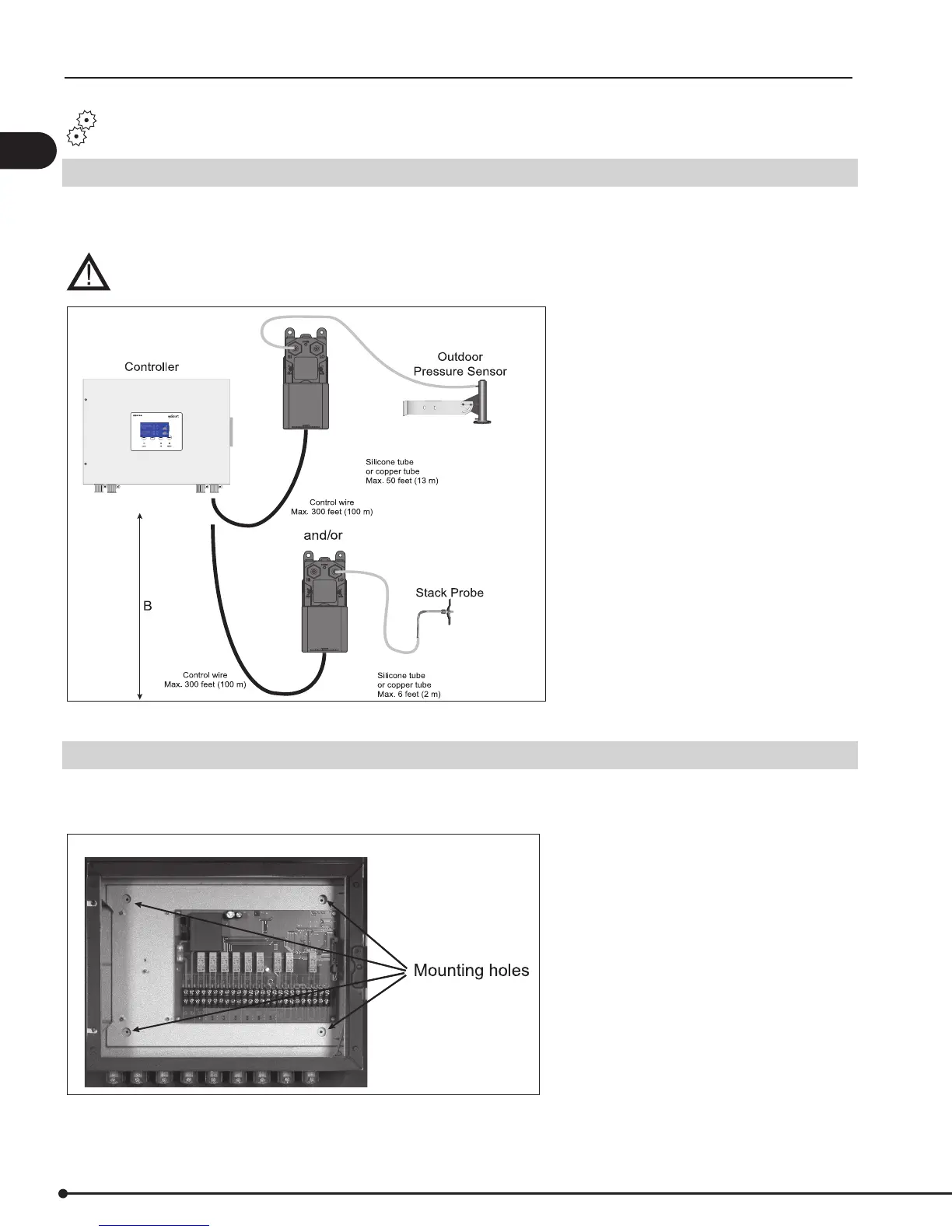

3. Mechanical installation
3.1 Location
The control and the transducer must be installed inside, preferably in the mechanical room (boiler room).
The control does not need to be installed in an enclosure. Fig. 3 shows how the components are connected.
The transducer cannot be mounted inside an airtight enclosure.
It uses the boiler room pressure as reference pressure.
Fig. 3
3.2 Mounting of control
The control can be mounted directly on a wall or similar. The mounting holes are located inside the control as shown in
Fig. 4. The distance between the control and the transducer should not exceed three hundred (300) feet.
Fig. 4
6
EBC30 3002180 100315
