2. Specications

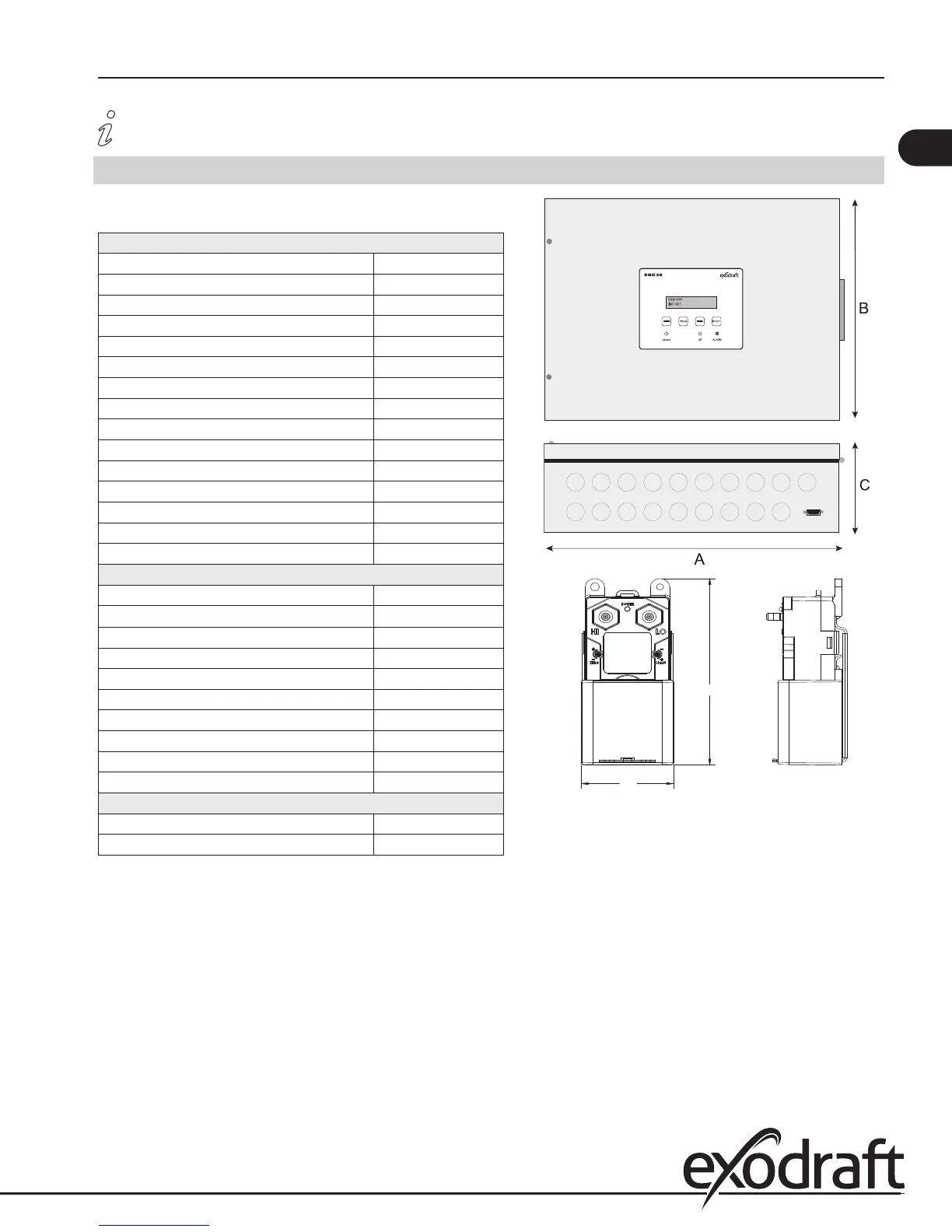

2.1 Dimensions and capacities
exodraft EBC30 control
Power supply V 1 x 120 V AC
Amperage A 6.3
Operating temperature °F/°C -4 to 122/-20 to 50
Range of operation inWC/Pa 0-0.6/0-150
Tolerance inWC/Pa 0.01/3 +/-10 %
Control signal mA max. 10
Control relay Max. 120 V AC/8A
Output V AC 10-120
V DC 0-10
Dimensions A in/mm 14.65/372
B in/mm 11.03/280
C in/mm 4.22/107
Weight lbs/kg 8.9/4.0
EMC standard Emission EN 50 081-1
Immunity EN 50 082-2
Ashcroft XTP sensor
Power supply V DC 14-36
Amperage mA 6
Output V DC 0-10
Operating temperature °F/°C 0-160/-17 - 70
Tolerance inWC/Pa +/- 0.8 %
Dimensions D in/mm 2.2/55
E in/mm 4.6/118
F in/mm 4.1/104
G in/mm 4.5/115
Weight lbs/kg .5/.2
Chimney probe
Dimensions H in/mm 4.25/108
I in/mm 3.50/89
4.854.85
2.062.06
.78
RR .8 8
5
