4.4.2 Cabinet Installation
➢ As shown in the figure below, the protective covers on both sides of the steel base of the cabinet
can be removed, and the cabinet can be transported to the concrete foundation by forklift.
➢ Align the installation hole of the cabinet base and fix the cabinet on the concrete foundation with
expansion bolts.

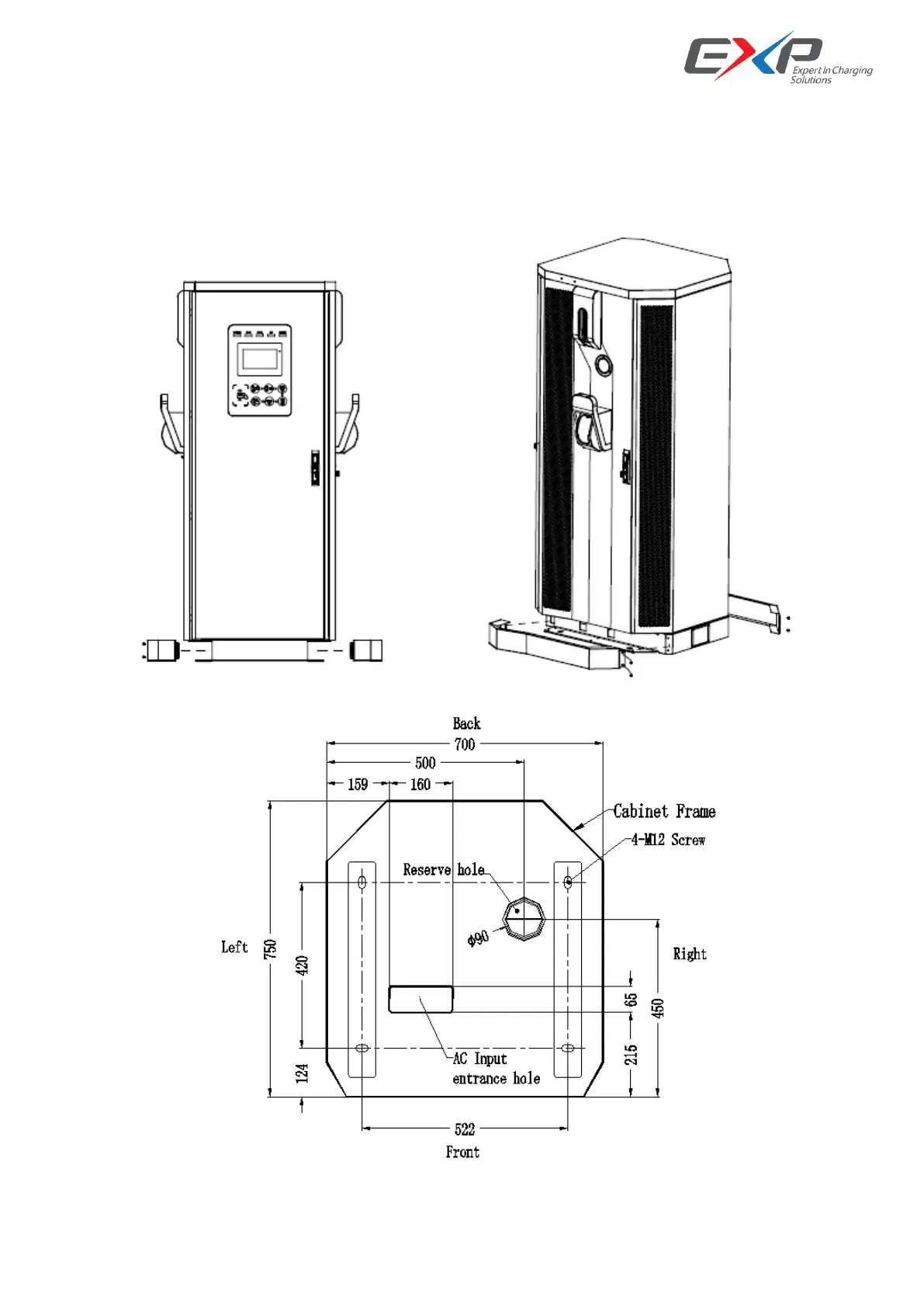

EXP180K2 cabinet installation View
EXP180K2 Top View
