Appendix 1 Engineering and Technical Parameters
※ The DC Charger has front and back doors. Aminimum 1000mm clearance should be provided on
both sides to provide space for maintenance.
※ Hot ventilation air exits to the right and left. A minimum 1000mm clearance should be provided to
prevent hot air from recirculating back to the air intake.
Note: When the system is running, the temperature of on back side door will be hot to prevent
touch by hand.

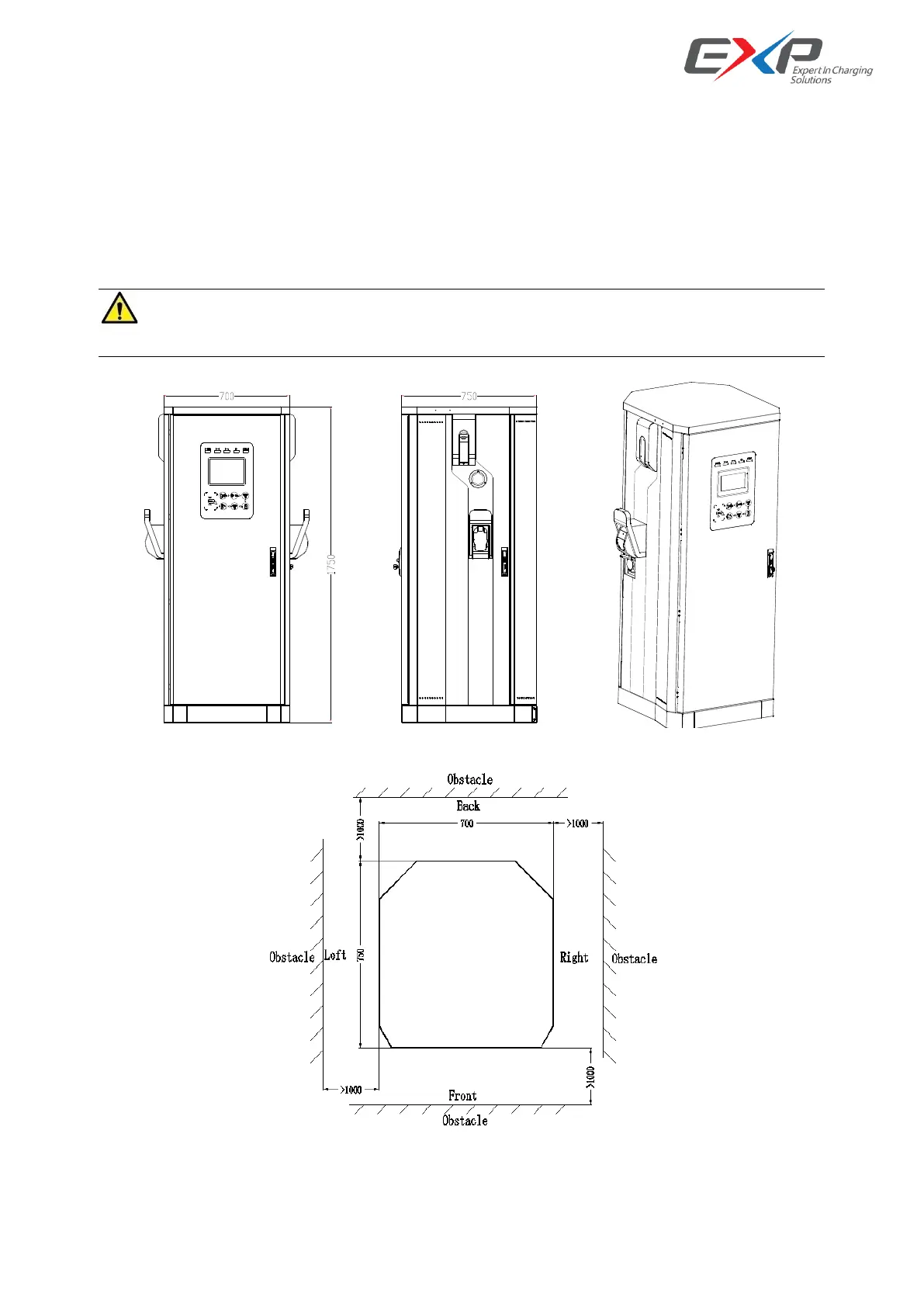

EXP180K2 Three views
EXP180K2 Space Requirement View
