4.4.3 Power cables connections

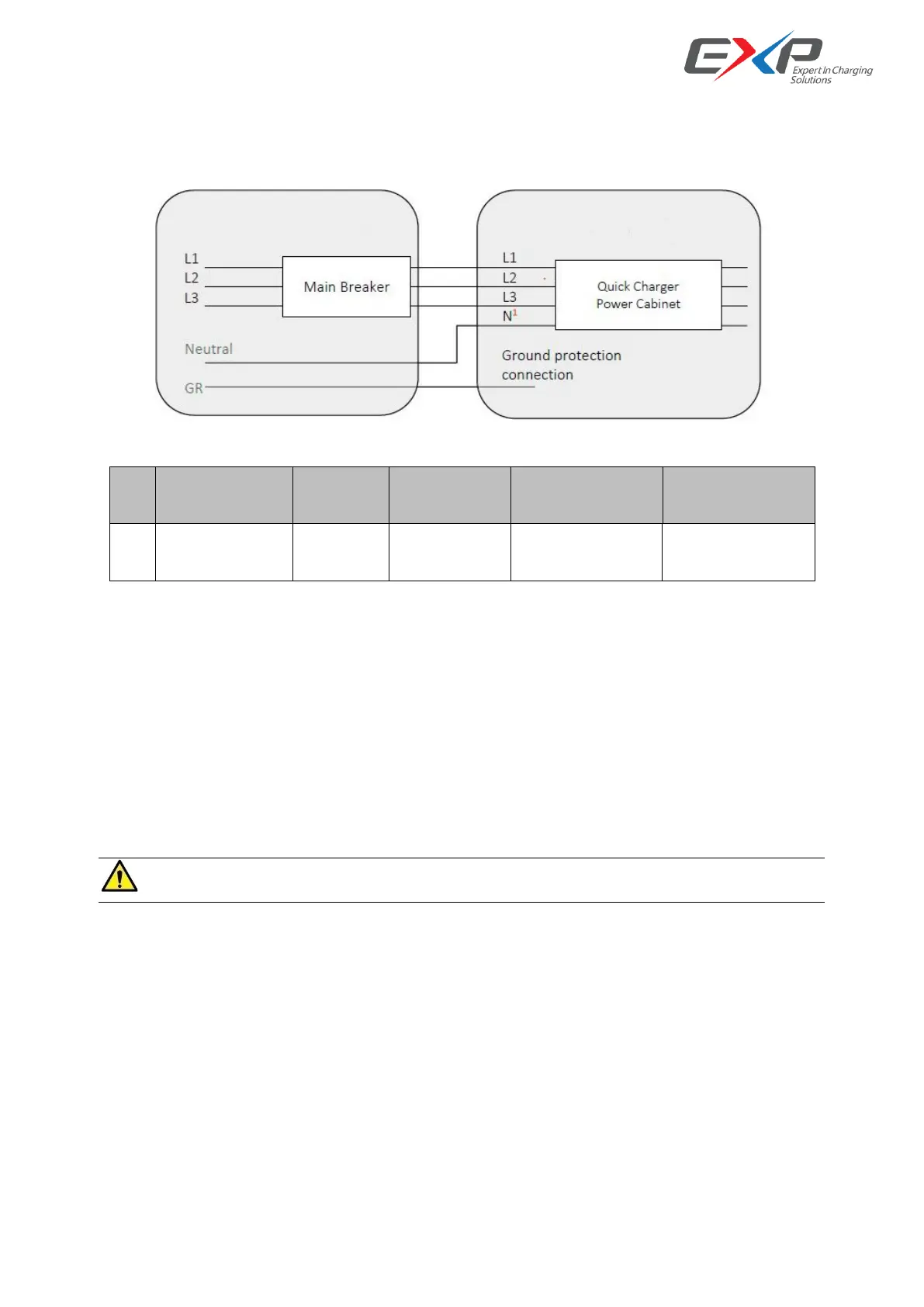

End terminals for input wiring: 5(five) end terminals up to 3phases+neutral+protective ground.
Table4-AC input wiring cables choose
NO.
The section for
AC feed cables
Amperage
at 380Vac
Max. Power
of charger
Specification of
terminal screw
Reserved length
inside cabinet
1
3*150+2*95mm
2
288A
180kW
L1/L2/L3/N is M10
PE is M8
0.5m
Notes:
➢ The AC feed power cables to the charger are not included.
➢ The AC feed power cables should be no less than 90℃ temperature resistant grade.
➢ The protective MCCB must be installed on the customer's distribution cabinet, and the upper
MCCB capacity shall not be less than 1.25 times of the input current.
➢ It is recommended that the upper MCCB should not be equipped with RCD function.
➢ This system is to be connected to a grounded, metal, permanent wiring system; or an equipment-
grounding conductor is to be run with circuit conductors and connected to equipment-grounding
terminal or lead on battery charger.
Note: Before electrical connection, all switches shall be placed in the disconnection position.
UPPER AC INPUT
EXP180K2
