4.4.4 Power Module Installation
Step-1: Open the front door. Plug the power module(s) into the module slot(s) inside the cabinet, before plug the power
module(s) must be noticed the install position，and locknut tightly.
※ Step-2: If pull the module out, It is very heavy, it is best to hold it by hand

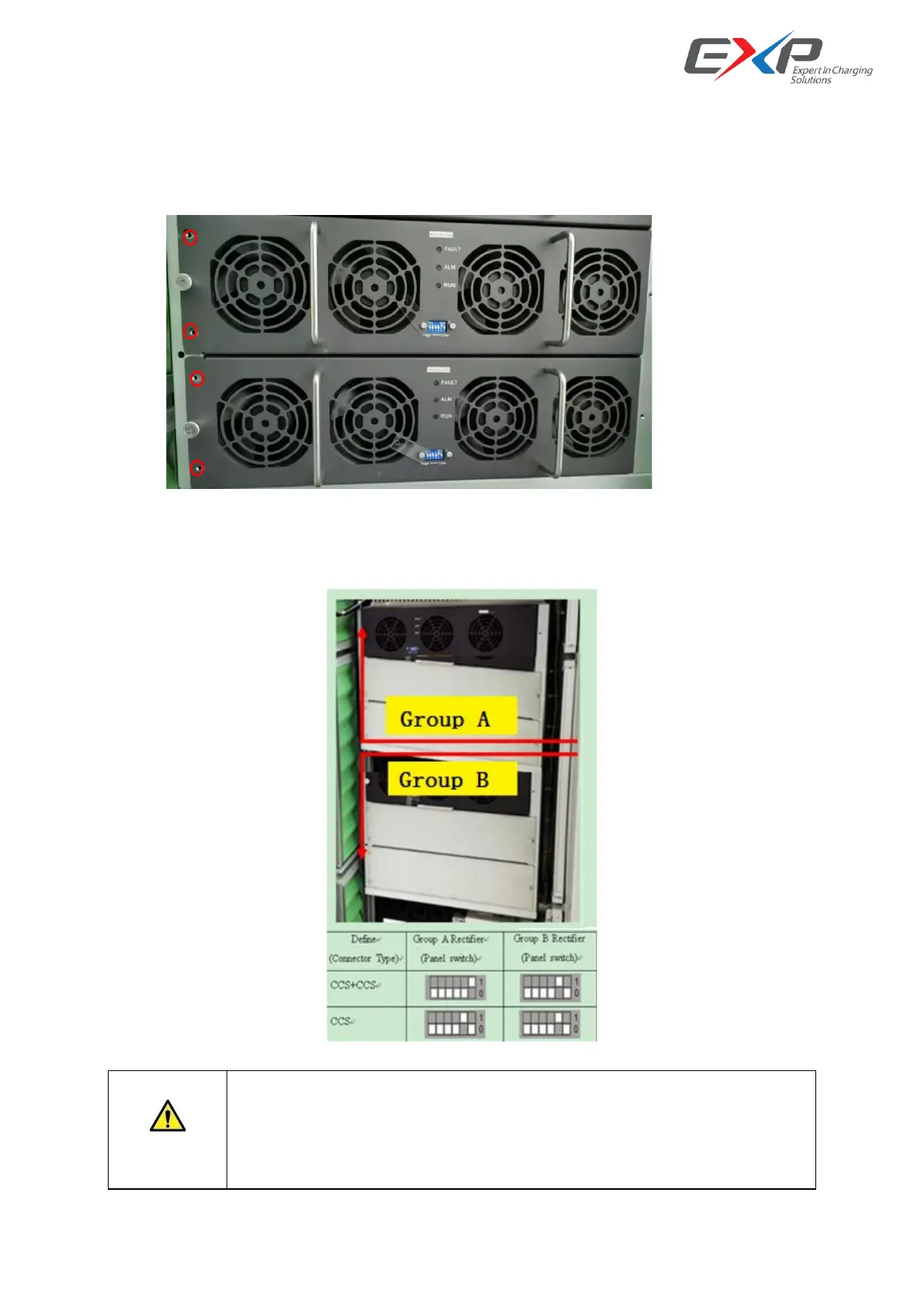

※ Step-3: power modules address setting, follow the below picture.
The module is heavy, Please be careful when moving the module
If the system is configured to less180kW output power, then some power
modules will be removed. The empty power module slots must be
covered by blanking plates. Otherwise, the system thermal management
will not function correctly.
