14 382100-en-US_V2.8 02/22
3. File Name description: Press SHIFT KEY so that NO “Shift” is appearing. Press ▲ or ▼
(Fig. 4-5-2b) to select a file number from 001 to 050.
Note: When pressing ▲ or ▼ for more than 2 seconds, quicker scrolling will result.
Examples:
1P201001: 1P2 is one phase by two wires, 01 is the folder number, and 001 is the file
number
1P301001: 1P3 is one phase by three wires, 01 is the folder number, and 001 is the file
number
3P301001: 3P3 is three phases by three wires, 01 is the folder number, and 001 is the
file number.
3P401001: 3P4 is three phases by four wires, 01 is the folder number, and 001 is the file
number.
4. Press the SHIFT KEY so the display will show the " SHIFT1 " symbol (Fig. 4-5-2c)
5. Press the SHIFT KEY again so the display will show the " SHIFT2 " symbol (Fig. 4-5-2d),
use ▲ or ▼ to select 1P/2W(1P2), 1P/3W(1P3), 3P/3W(3P3), or 3P/4W(3P4)
6. Press SHIFT KEY so that NO “Shift” is appearing. Press ▼ to select the Sampling Time.
See next section.

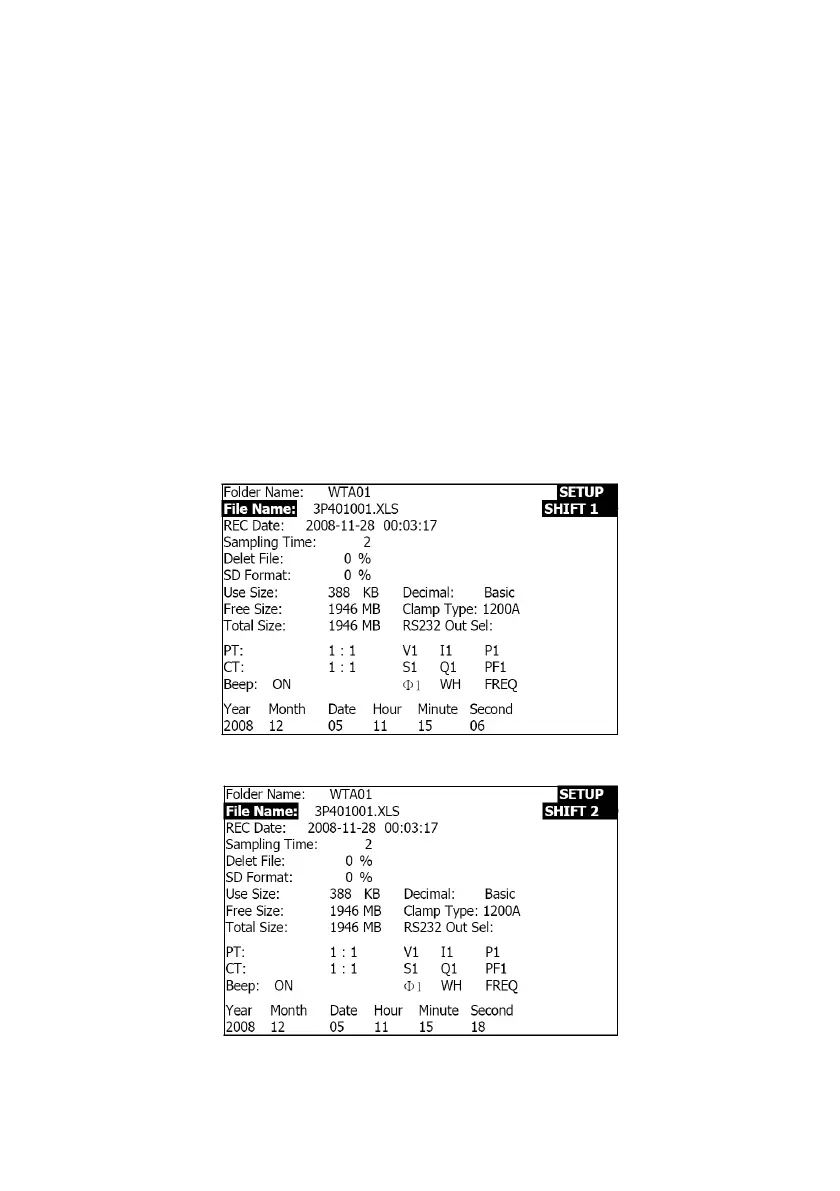

Figure 4-5-2c: File Name (Screen 3)
Figure 4-5-2d: File Name (Screen 4)
