2 SDL700-EU-EN V1.4 03/12
Introduction
Congratulations on your purchase of the Extech SDL700 Pressure Meter, an SD Logger Series
meter. This meter displays and stores pressure readings from optional pressure sensors in the
range of 30, 150, 300 psi. Supported measurement units are bar, psi, Kg/cm
2
, mm Hg, inch Hg,
meters of H
2
O, inches of H
2
O, atmosphere, hPA, and kPA. Logged data readings are stored on an
SD card for transfer to a PC. In addition, an RS232 port allows data streaming to a PC. This meter
is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal, indicates the user must refer to the
manual for further information.

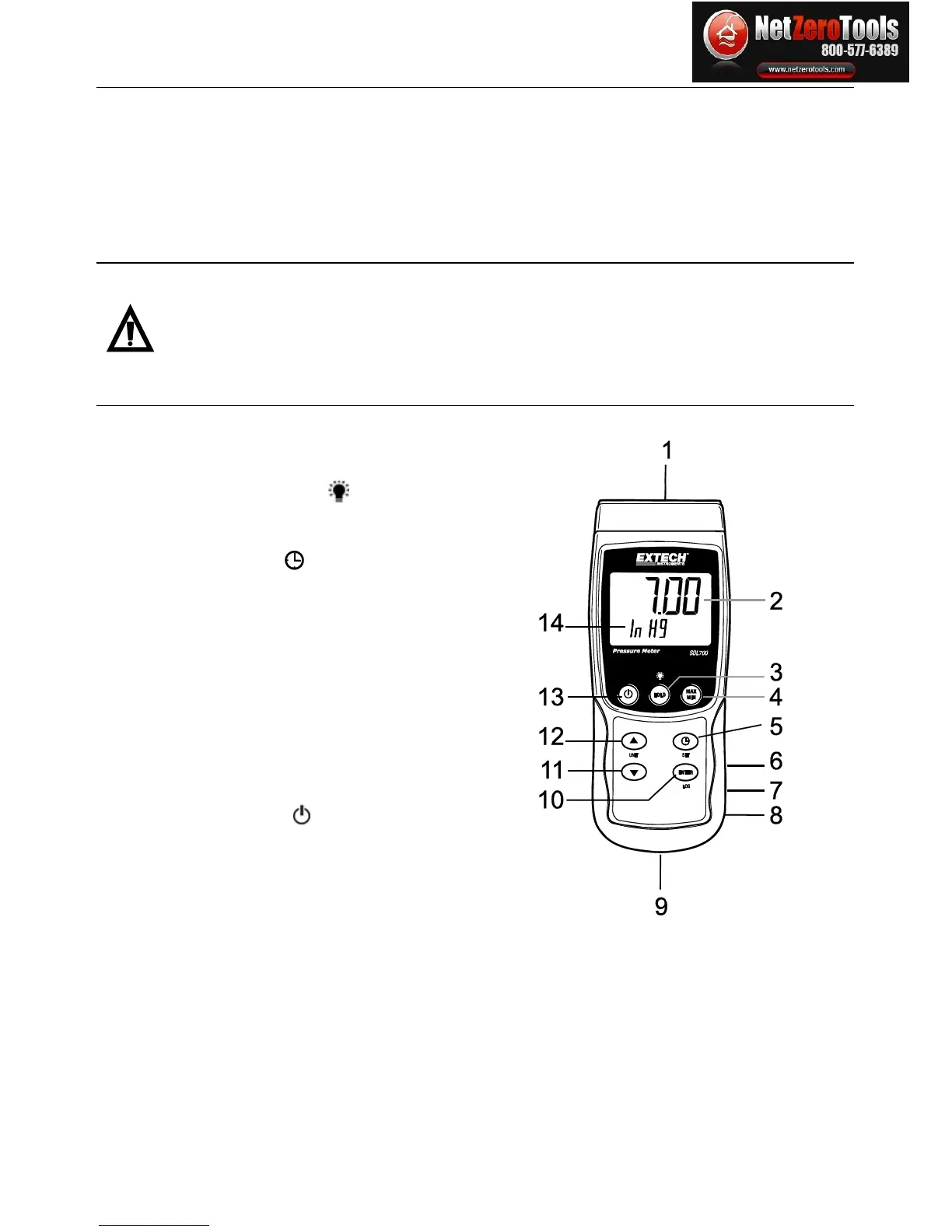

Meter Description
1. Pressure Sensor input jack
2. Measurement reading on LCD Display
3. HOLD and Backlight
key
4. MAX-MIN key
5. SET and Clock
key
6. PC interface jack
7. Reset button
8. Power Adapt
or jack
9. SD car
d slot
10. ENTER and LOG key
11. Down arrow ▼ key
12. Up arrow ▲ / UNIT key
13. Power ON-OFF
key
14. Unit of measure on the LCD Display
Notes: Items 6, 7, and 8 are located behind the snap-off compartment cover on meter’s right side.
Battery compartment, tilt stand, and tripod mount are located on the rear of the instrument
