Extech Instruments SL400 - Calibration Procedures; Manual Calibration Method

10SL400‐en‐GB_V1.02/16
ManualModeCalibration
SetthemetertoSLMmode,Aweighting,Highrange,andSlow.

Attacha94.0dB(1000Hz)soundcalibratortothemicrophoneandwaitforabout1minuteand
notethesoundvalueonthedisplay.Writedownthevalue.

Calculatethevalueoftheoffsetfromthedisplayedvalueto
thesourcednoiselevel.
Inthisexamplethevalueis+1.3(94.0dBsourced,and92.7dBdisplayed)


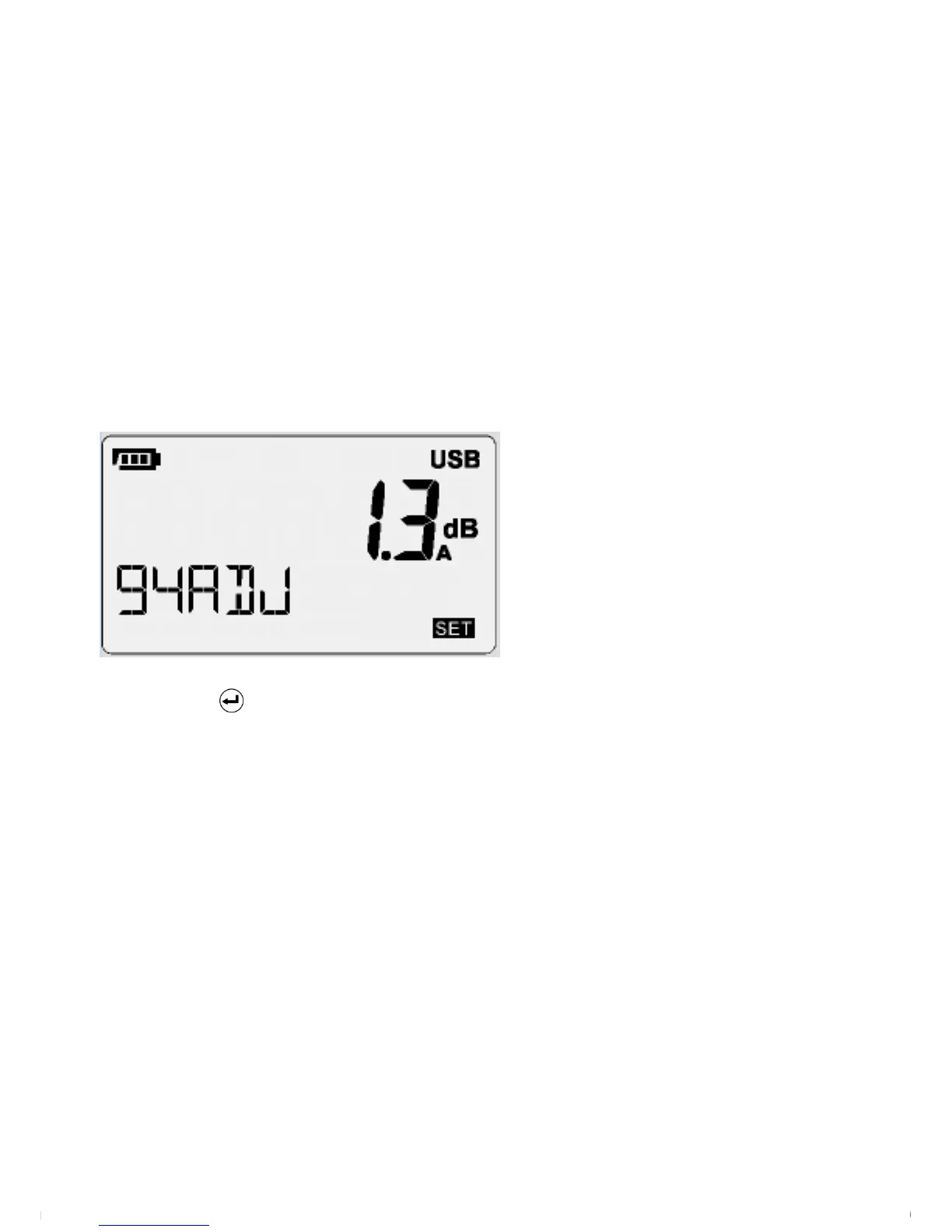

EnterSetmodeandgototheparameter94ADJ.
UsingtheUpanddownarrowssettheoffsetaccordingtotheoffsetcalculated.
Inthisexample–set94ADJto1.3



PresstheEnter
keytosavetheentryandtogetbacktothemeasurewindow.
Themetershouldnowread94.0dB(+/‐0.1dB).


