Hardware Installation and Setup

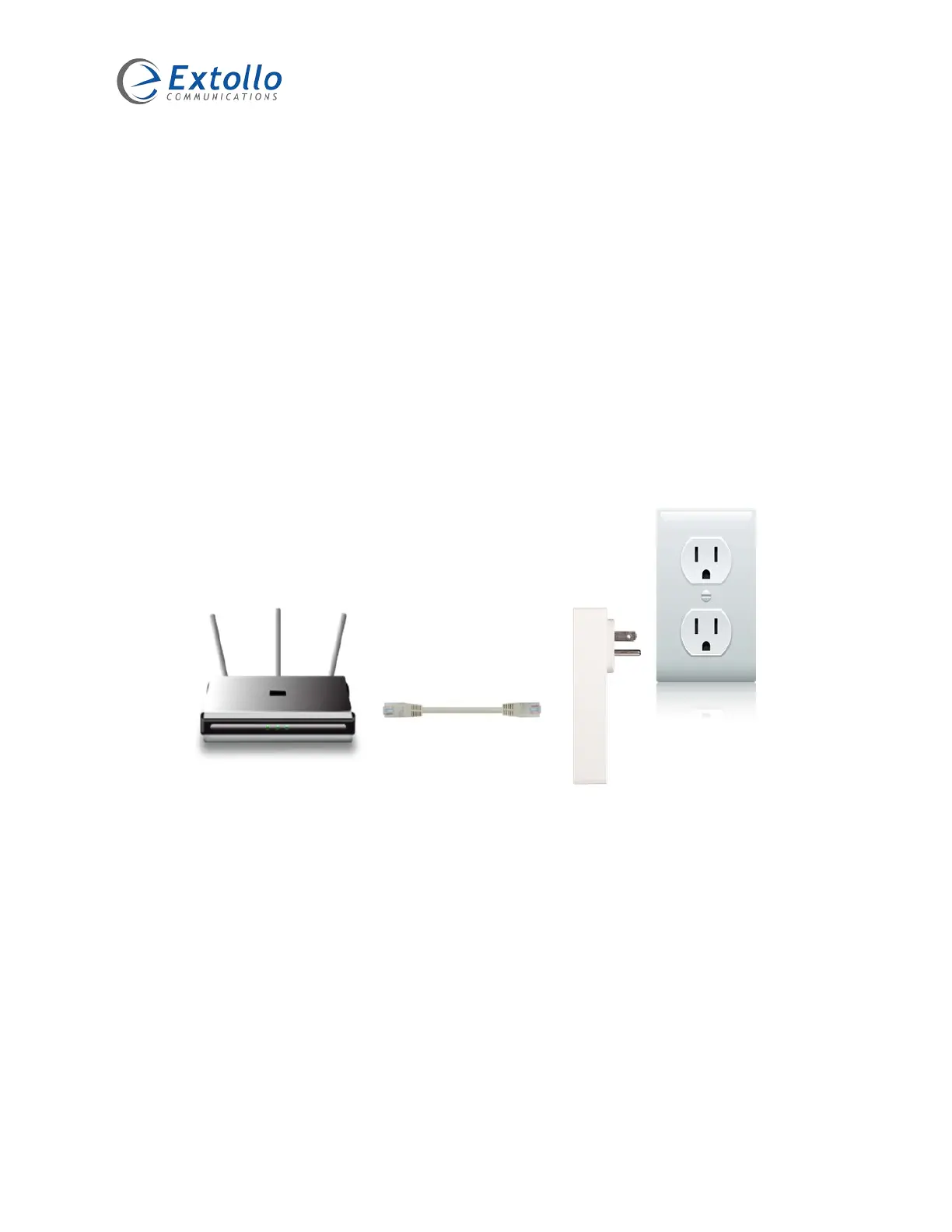

Internet Router Connection
Step 1
1. Connect one end of the Ethernet cable to the home’s Internet router.
2. Connected the other end of the Ethernet cable to the LANPlug 2000 Powerline adapter.
3. Plug the LANPlug 2000 Powerline adapter directly into the electrical outlet.
4. The Powerline LED on the LANPlug 2000 will be green and then turn amber once it has
finished its boot-up process.
Remote Device Connection
Step 2
1. In the area where an Internet connection is required, connect one end of the Ethernet
cable to the device that requires an Internet connection.
2. Connect the other end of the Ethernet cable to the LANPlug 2000 Powerline adapter.
3. Plug the LANPlug 2000 Powerline adapter directly into the electrical outlet.
4. The Powerline LED on the LANPlug 2000 will be green and then turn amber once it has
finished its boot-up process.
