Section 904
Accelerometer TL-3424_EXT
904 - 4 Page Date: 19. February 2014
PilotĀ“s Operating Handbook US
EXTRA 330LX
904.6 WEIGHT AND BALANCE
Refer to the Equipment List in Section 6 of this Handbook.
904.7 DESCRIPTION

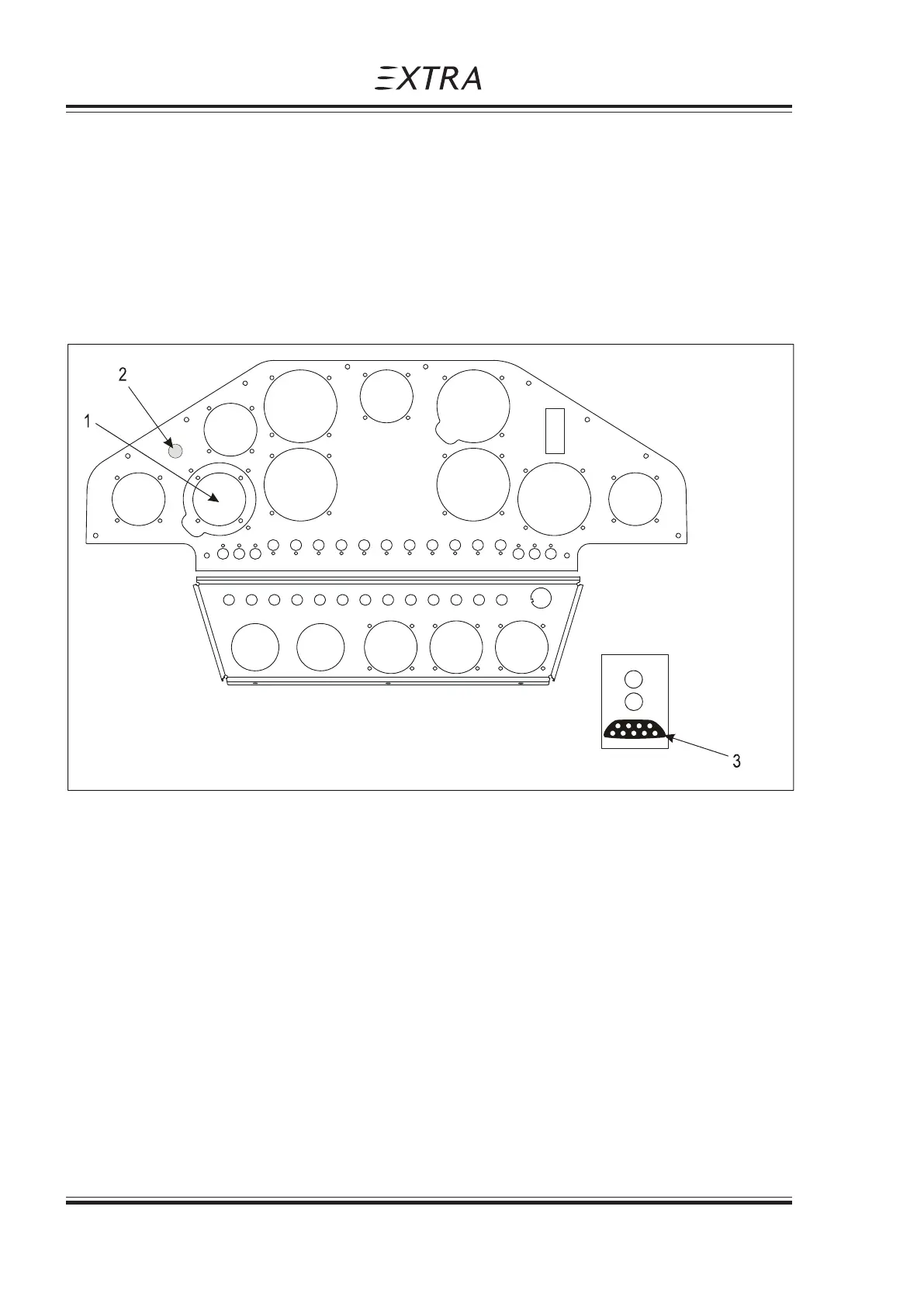

The complete installation consists of:
1 TL-3424_EXT Accelerometer
2 G/V LIMITS WARNING LIGHT
3 RS-232c (D-SUB 9 pins [female])
The TL-3424_EXT is complete weight acceleration management. The instrument incorporates a
high-precision sensor for measuring acceleration in the vertical axis. The instrument also
incorporates a sensor connected to the Pitot/static-system for measuring the indicated airspeed.
It is possible to download the measured values from the instrument via the serial cable RS-232c
into a PC.
Pressing the Control and Marker Button enters marks into the memory records and enables the
user manual control of the memory recording.
