Page Date: 19. February 2014 6 - 9
Section 6
Weight and Balance and Equipment List
PilotĀ“s Operating Handbook US
EXTRA 330LX

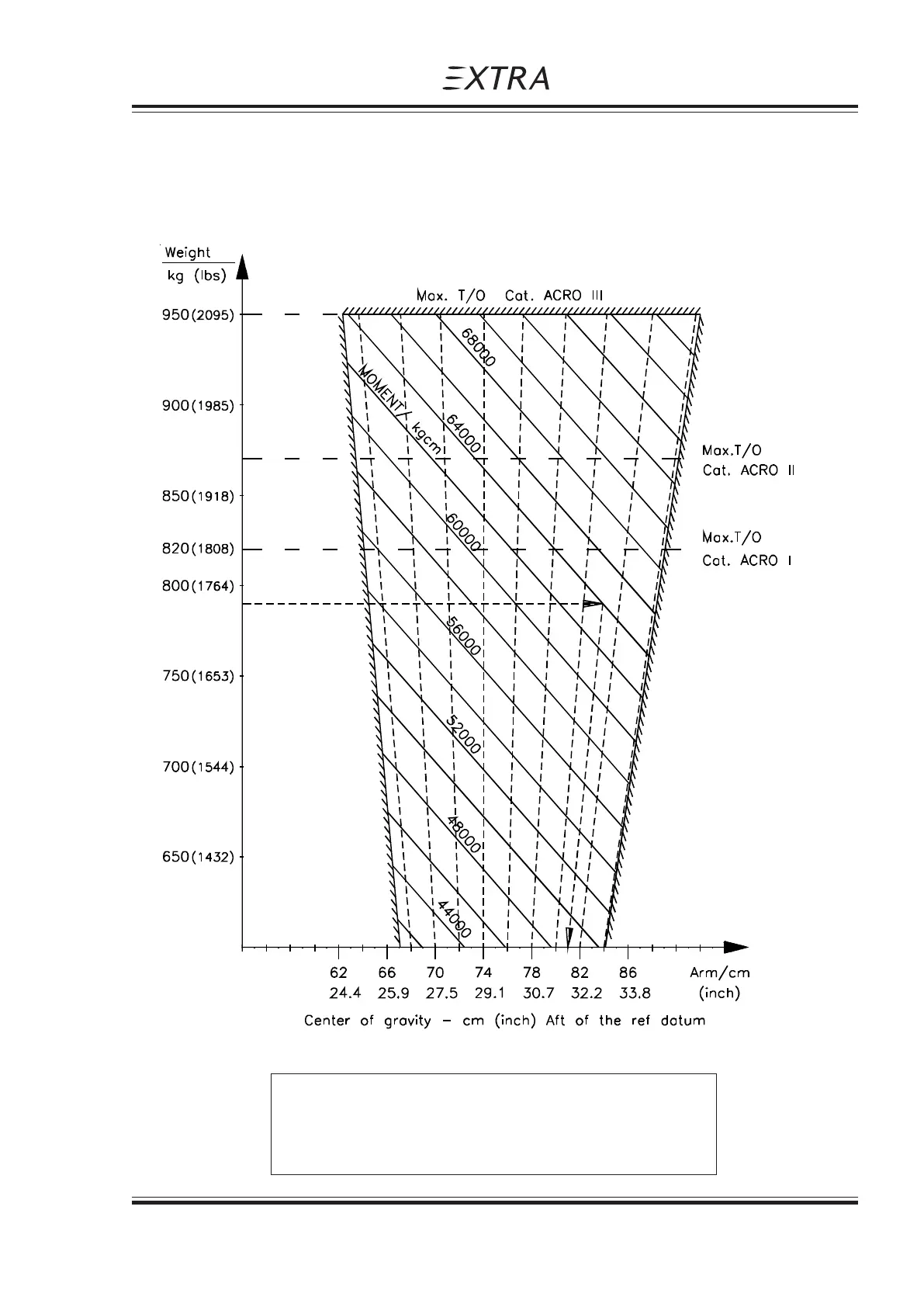

6.5 WEIGHTS AND MOMENTS LIMITS
EXAMPLE:
At 790 KG (1741 LBS) and 640000 kgcm the C/G location is
80.0 cm (31.4") aft of ref datum
