Section 922
GARMIN GTN 635/650/750
Page Date: 19. February 2014 922 - 13
PilotĀ“s Operating Handbook US
EXTRA 330LX
AUDIO SPLIT MODE
1. While the Audio Control page is displayed, touch the Split Mode key to display Crew Intercom
selections.
2. Touch the Split Mode key again to toggle the Crew Intercom selection off.
3. Touch the Crew Intercom key to toggle activation of the Crew Intercom allowing the Pilot and
Co-Pilot to talk to each other.
4. Touch the desired Pilot and Co-Pilot Radio selections.

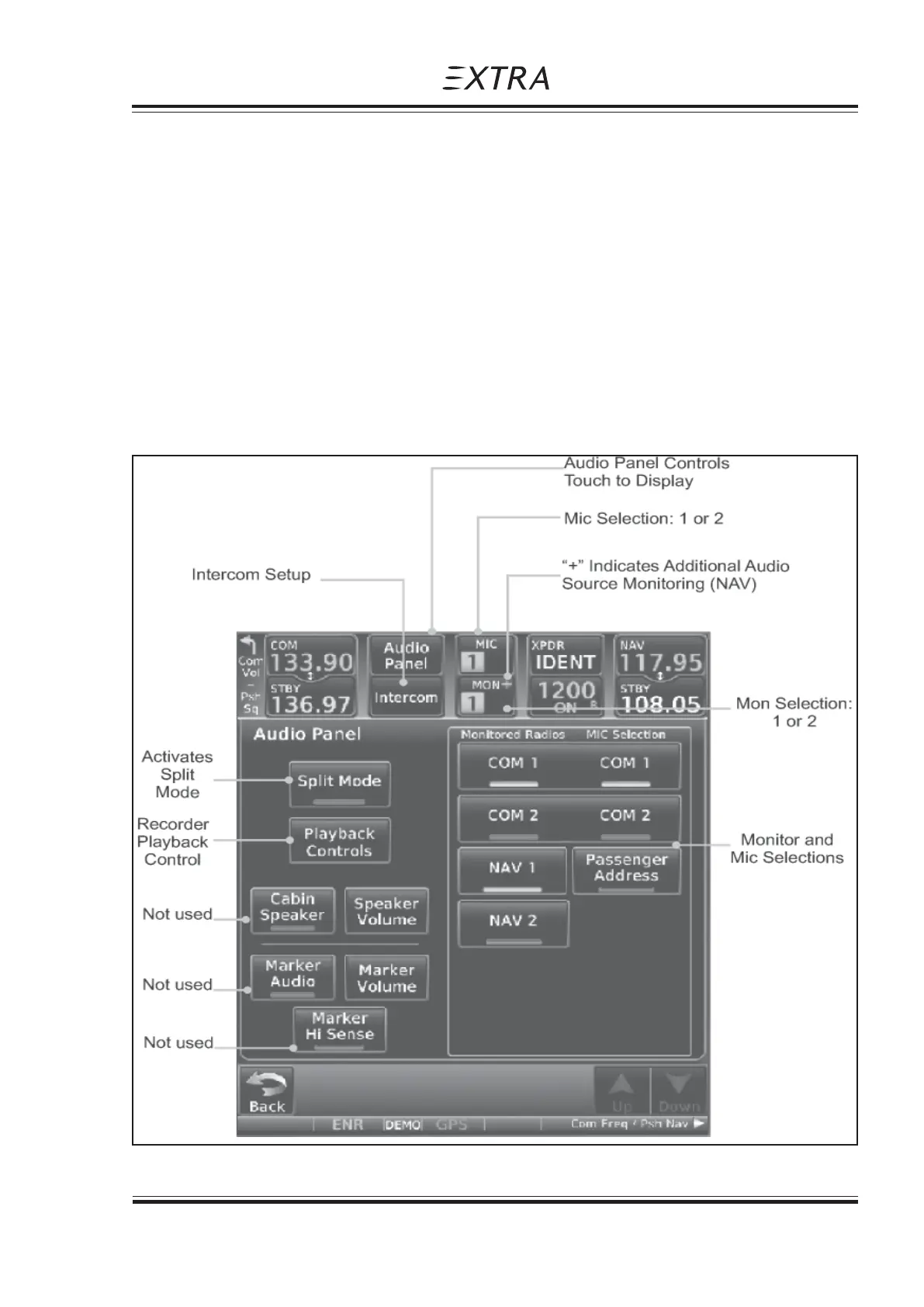

Figure 5, GTN 750 Audio Panel Operation
3. The selected Mic will be shown in the MIC window.
MONITOR
1. Monitor is automatically selected for the associated Com Mic Radio.
2. Touch the Mon key to toggle between the automatically selected monitored channel (selected
Mic) and the other available channels.
