INSTALLING COMFORT MAXI/ COMFORT PLUS
The insert is supplied with a sliding metal base that allows it to be installed in a pre-existing ue.
The sliding base allows the easy extraction of the insert both for feeding pellets into the feed-box and for any maintenance or
cleaning at the end of the season. If there is no pre-existing ue, it can be built using the insert support pedestal (optional kit);
in fact, the latter attaches the insert to the oor.
Components description:
A. Primary air intake pipe
B. Flue exhaust pipe
C. Adaptation frame
D. Sliding base and rails
E. Plug for power socket
F. Ducting pipe

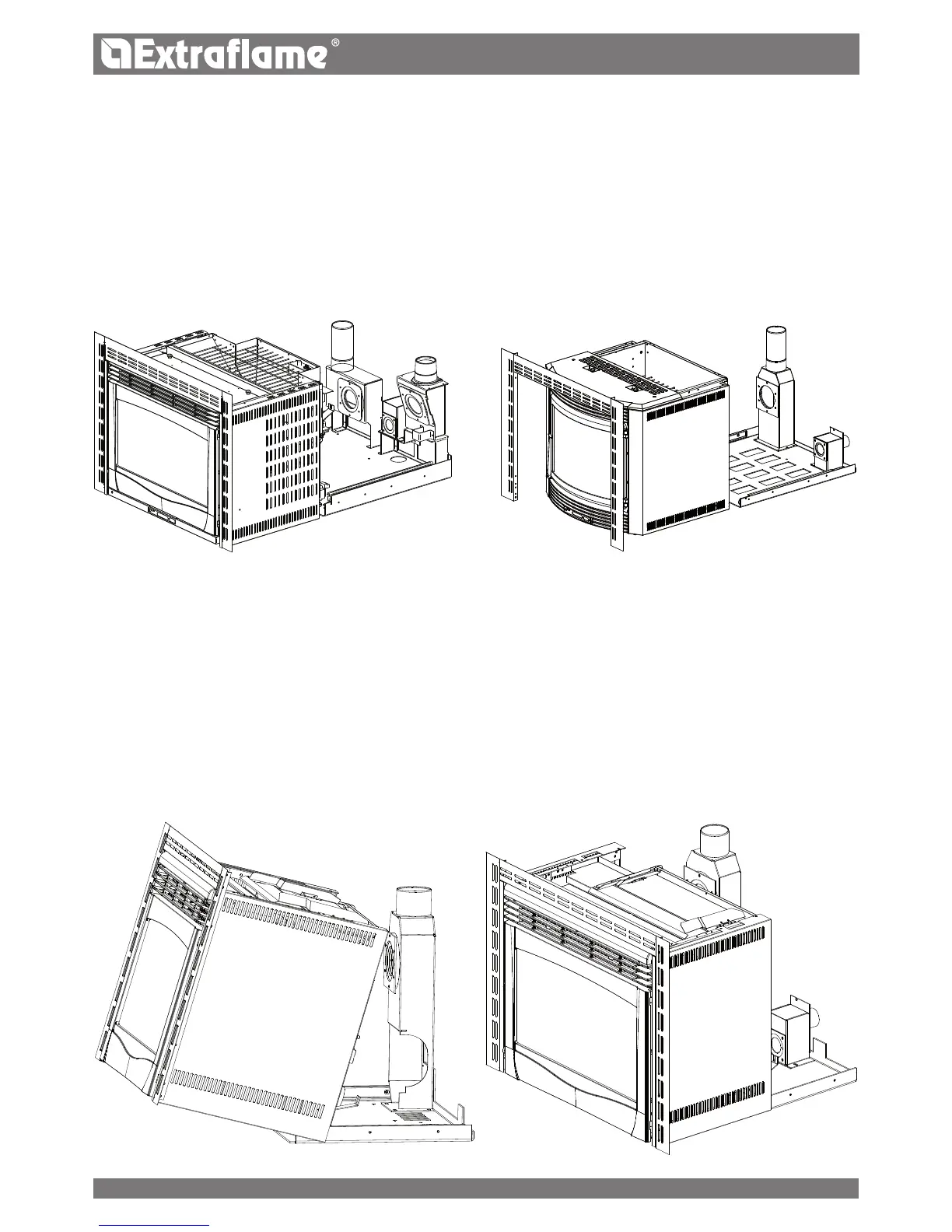

ASSEMBLY WITH SLIDING BASE
Take the sliding base and position it in the pre-existing ue. Use chalk to mark the blocking holes of the base on the ue surface.
Drill 8 mm holes for the steel expansion inserts.
Make a hole measuring 60 mm in line with the air intake.
Remember the power socket on the rear of the insert so that the plug is accessible once installation is completed.
Fix the base using the clamping screws.
Create a ue exhaust and socket connection respecting the points described previously.
Take the insert, tilt it so that the wheels t into the relative rails, make it run until the ue gas insert is completely inserted into
the ue gas conveyor box.
