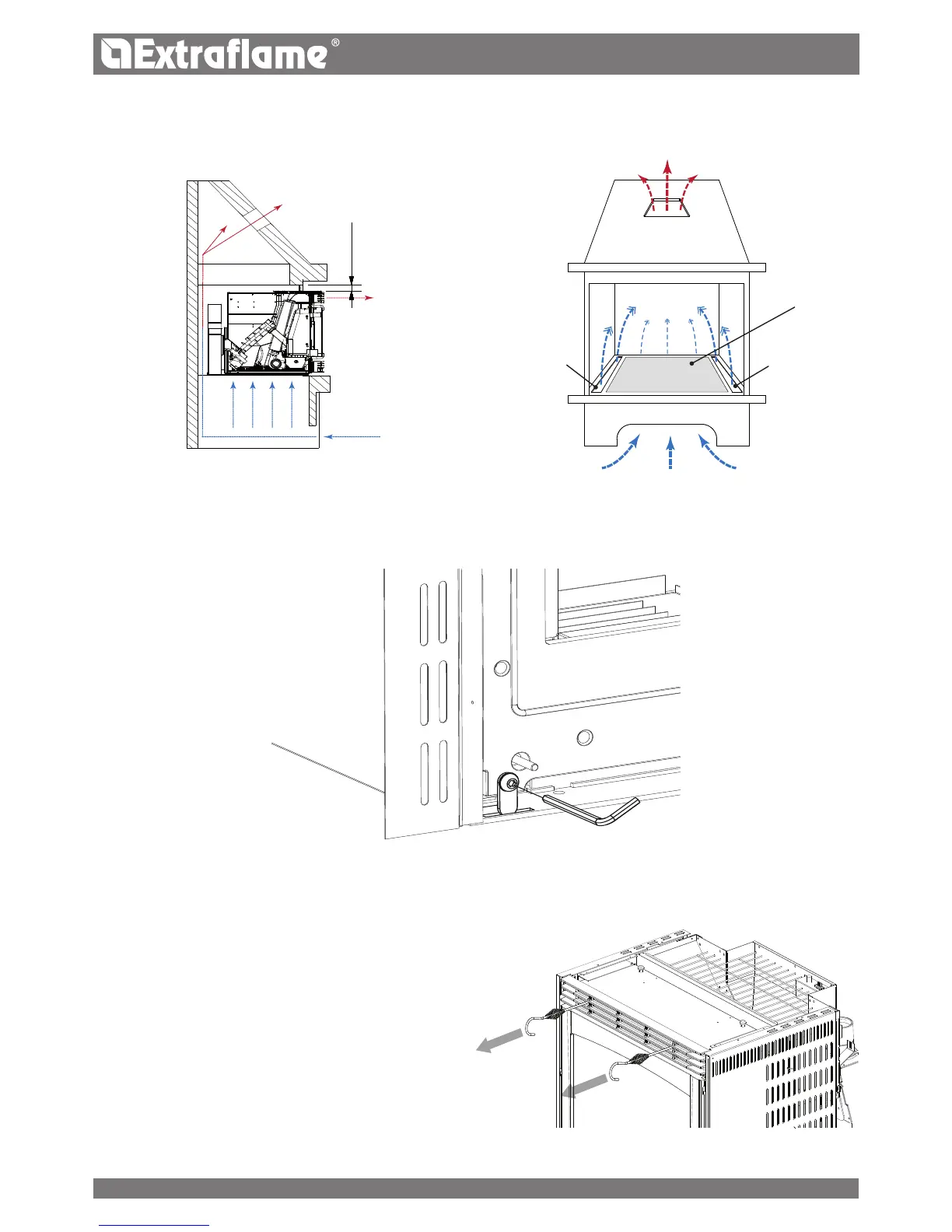

For correct functioning of the insert, during construction of the ue the measurements between the insert and internal walls of
the ue must be respected (gure below).
From the clearance measurements of the stove given in the technical features, it is necessary to consider at least 50 mm of air
in the upper part and on the 2 sides.
INSERT LOCKING AND RELEASING SAFETY DEVICE
Open the fire door and use the supplied Allen key to turn the screw at the bottom left corner clockwise.
To understand whether the insert is attached to the base properly, connect the plug to the socket and make sure it works with
the supplied remote control.
INSERT EXTRACTION
The extraction of the insert allows pellets to be loaded inside
the feed-box and to perform routine maintenance, (cleaning
the ash pipe at the end of the year) or special maintenance
(replacement of mechanical parts if the product should
break).
Follow this procedure to extract the insert:
Open the re door and use the supplied Allen key to turn the
screw at the bottom left corner anticlockwise.
Using the relevant pokers, pull the machine towards yourself
until it blocks automatically.
Base
Comfort Plus
Air inlet
275cm²
Air inlet
275cm²
22
