MAX300-RTG: Installation Manual Hardware Installation
12

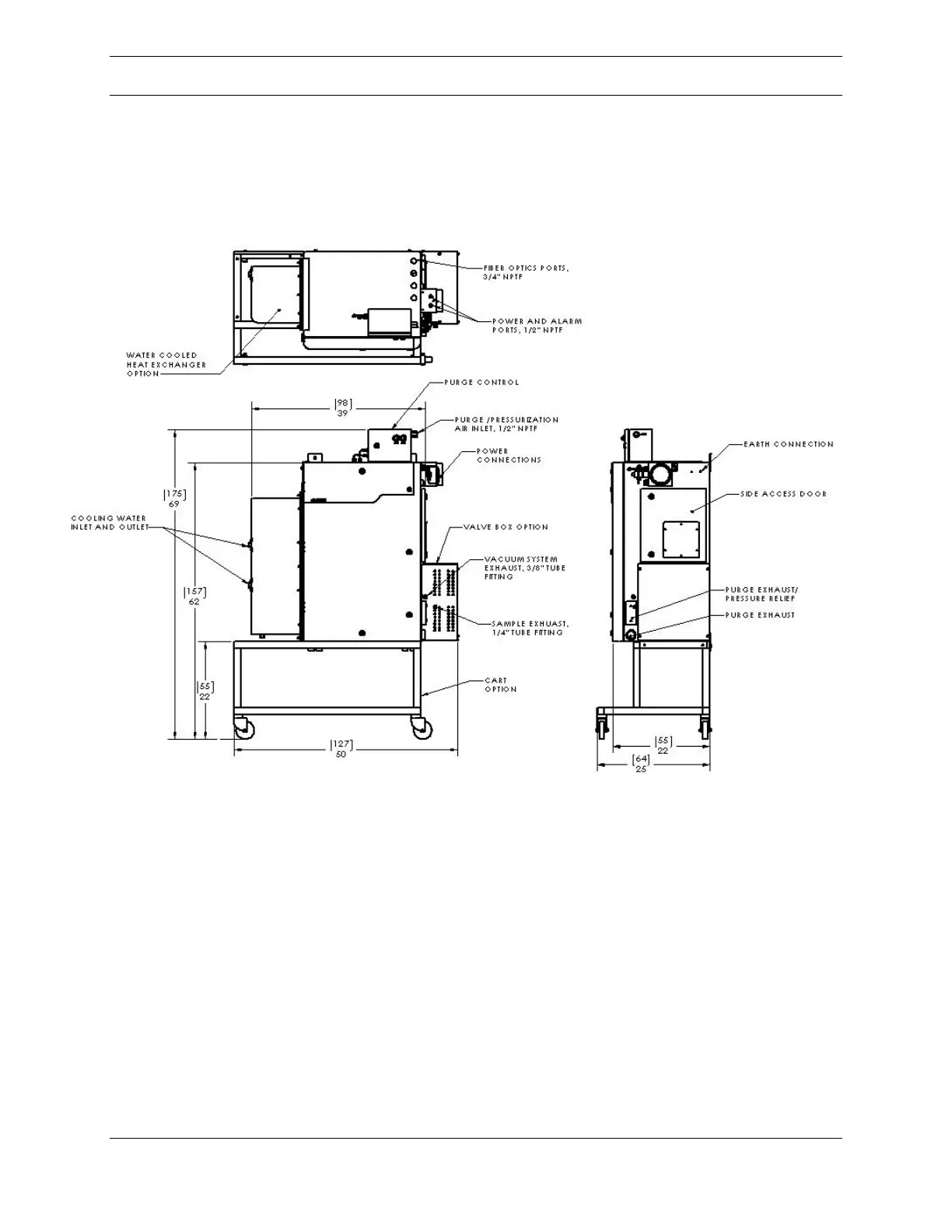

Figure 5: Layout of the ATEX/IECEx Zone 1/Class I Div 1 unit (230V or 115V) with
water cooled heat exchanger and cart option
