MAX300-RTG : Hardware Manual Hardware Maintenance
63
Analyzer Assembly
Contained within the vacuum chamber is the actual chamber assembly. This
assembly consists of the ionizer, quadrupole mass filter, and detector, as shown
in Figure 35 below.

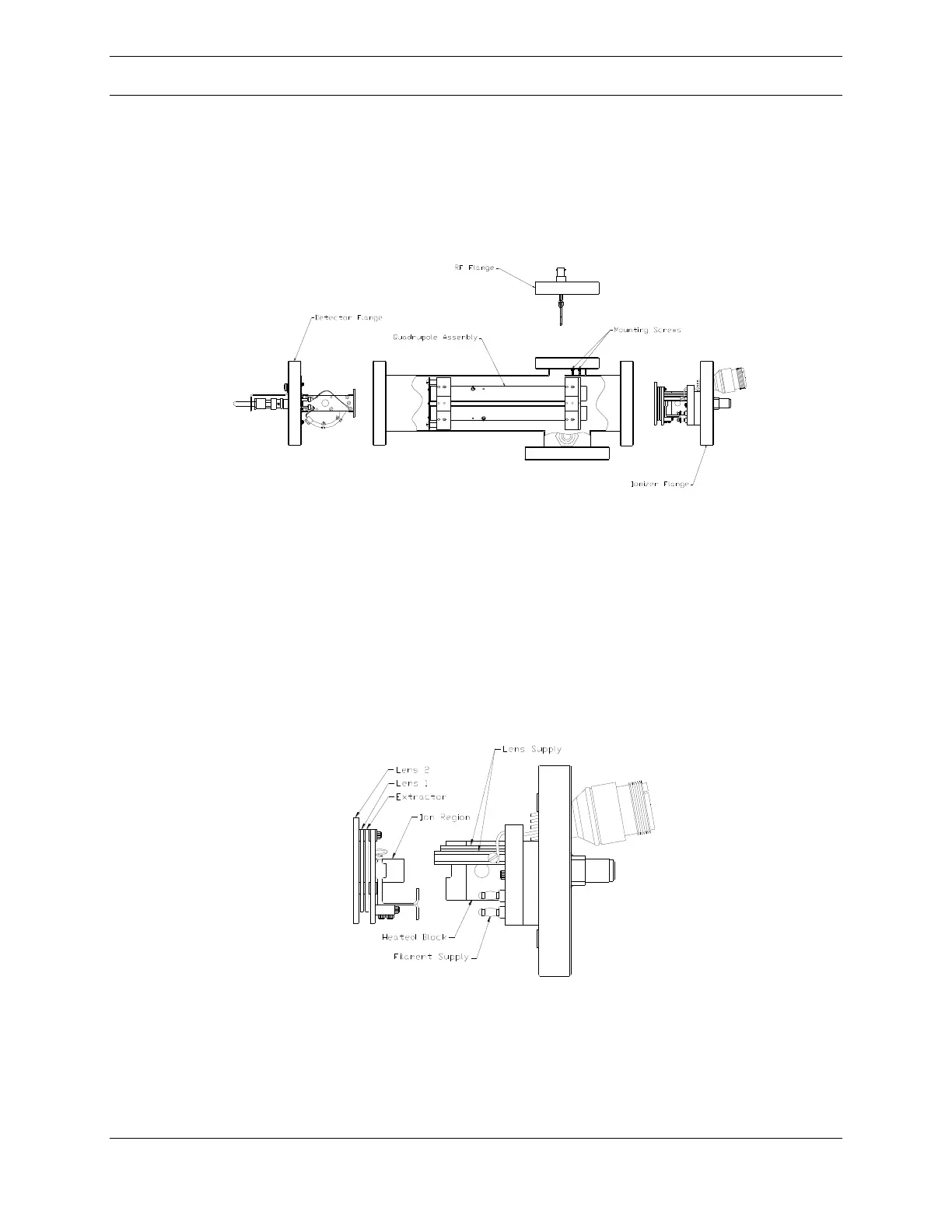

Figure 35: Analyzer Assembly
Ionizer and Filaments
The MAX300-RTG ionizer assembly, depicted in Figure 36, below, includes the
most frequently serviced components of the ionizer into a single removable
module. This module includes two filaments, the ion region, and the lens stack.
Figure 36: Ionizer
