Configuring the Summit 200 using ExtremeWare Vista
Summit 200 Series Switch Installation and User Guide 257

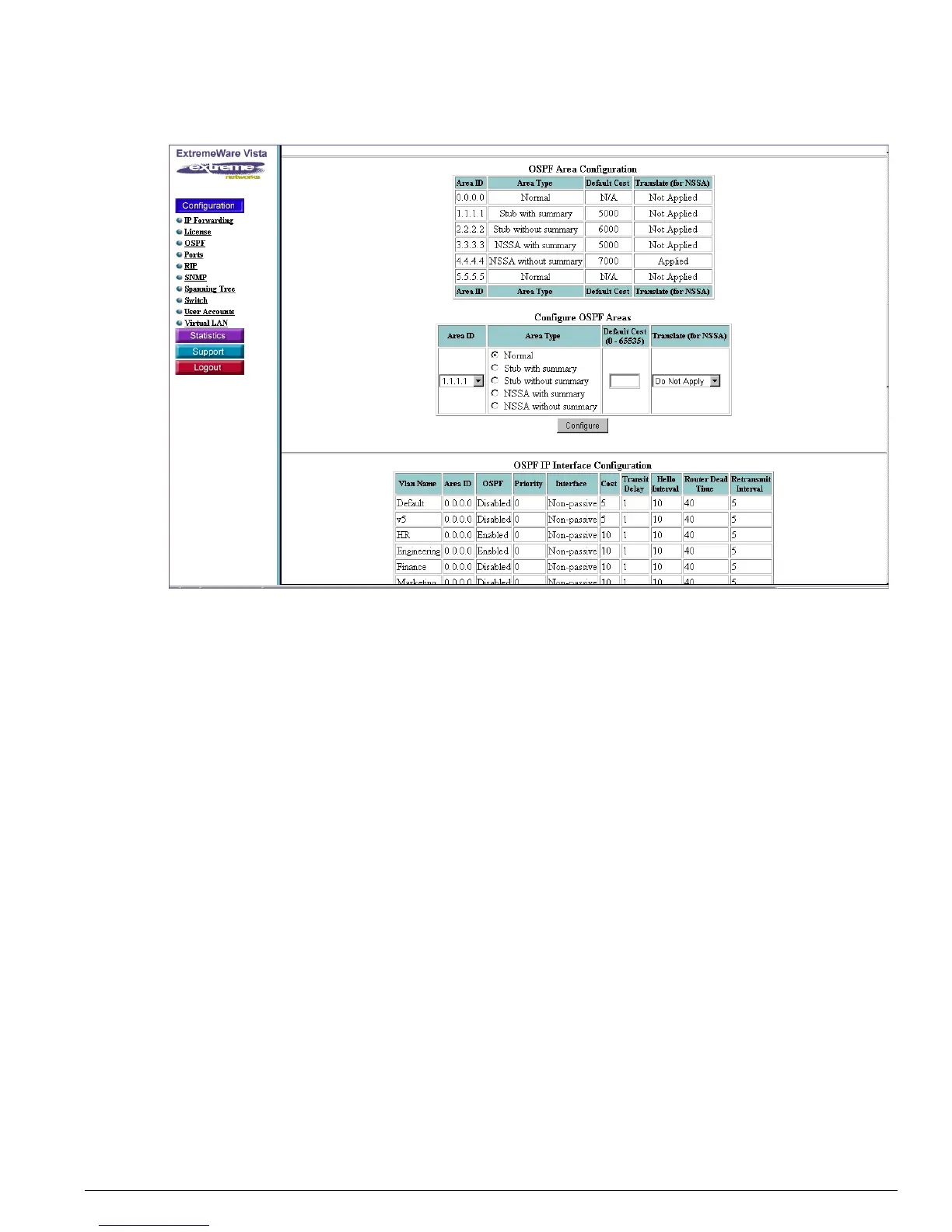

Figure 49: OSPF Area Configuration
For more information on area types, see “Areas” on page 211.
Configure an IP interface for OSPF
Using this portion of the window, you can:
Review the existing OSPF IP interface configuration
Associate a VLAN with an area ID
Configure OSPF for each VLAN area
Configure a route filter for non-OSPF routes exported into OSPF
Configure the timers for one interface in the same OSPF area
Configure miscellaneous OSPF parameters, such as cost
Configure virtual links
As shown in Figure 50, the top table lists the existing OSPF IP interface configuration. The table consists
of the following fields:
VLAN name
Area ID
OSPF—Either enabled or disabled
Priority—Always set to zero for Summit 200
Interface—Either passive or non-passive
