Reviewing ExtremeWare Vista Statistical Reports
Summit 200 Series Switch Installation and User Guide 281
Use—The number of times the entry is used
VLAN—VLAN name
Origin—Route origin. One of the following:
• direct
• blackhole
• static
• ICMP
• OSPFIntra
• OSPFInter
• RIP
• OSPFExtern1
• OSPFExtern2
• BOOTP
As shown in Figure 73, you can also use the View Options to restrict different aspects of the view. For
more information on IP routing, see “Populating the Routing Table” on page 193.

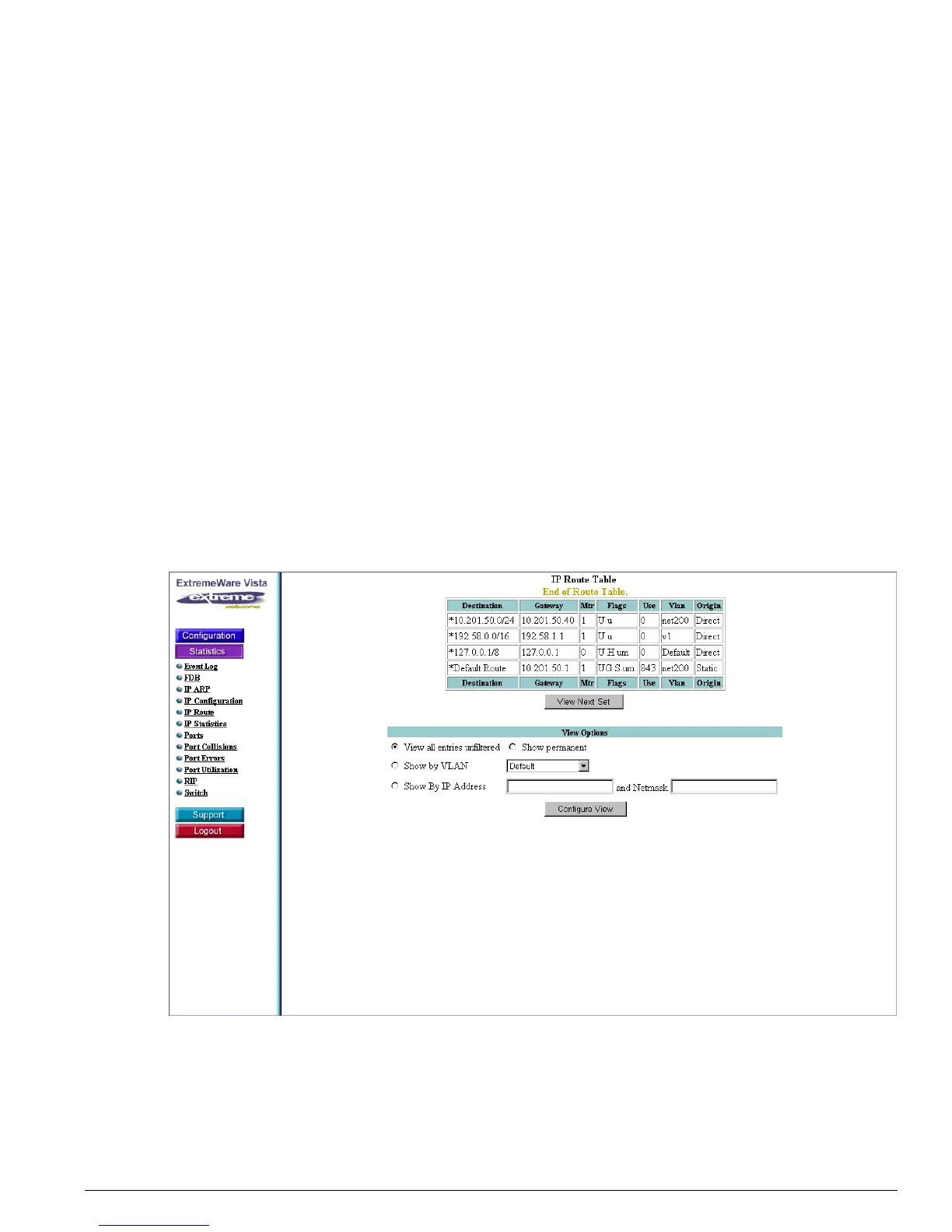

Figure 73: IP Route Table
IP Statistics
This window provides ICMP error reporting statistics and error counts from the switch as a whole, and
also on individual interfaces. For information about error counts across the whole switch, see “Global IP
