Configuring the Summit 200 using ExtremeWare Vista
Summit 200 Series Switch Installation and User Guide 263

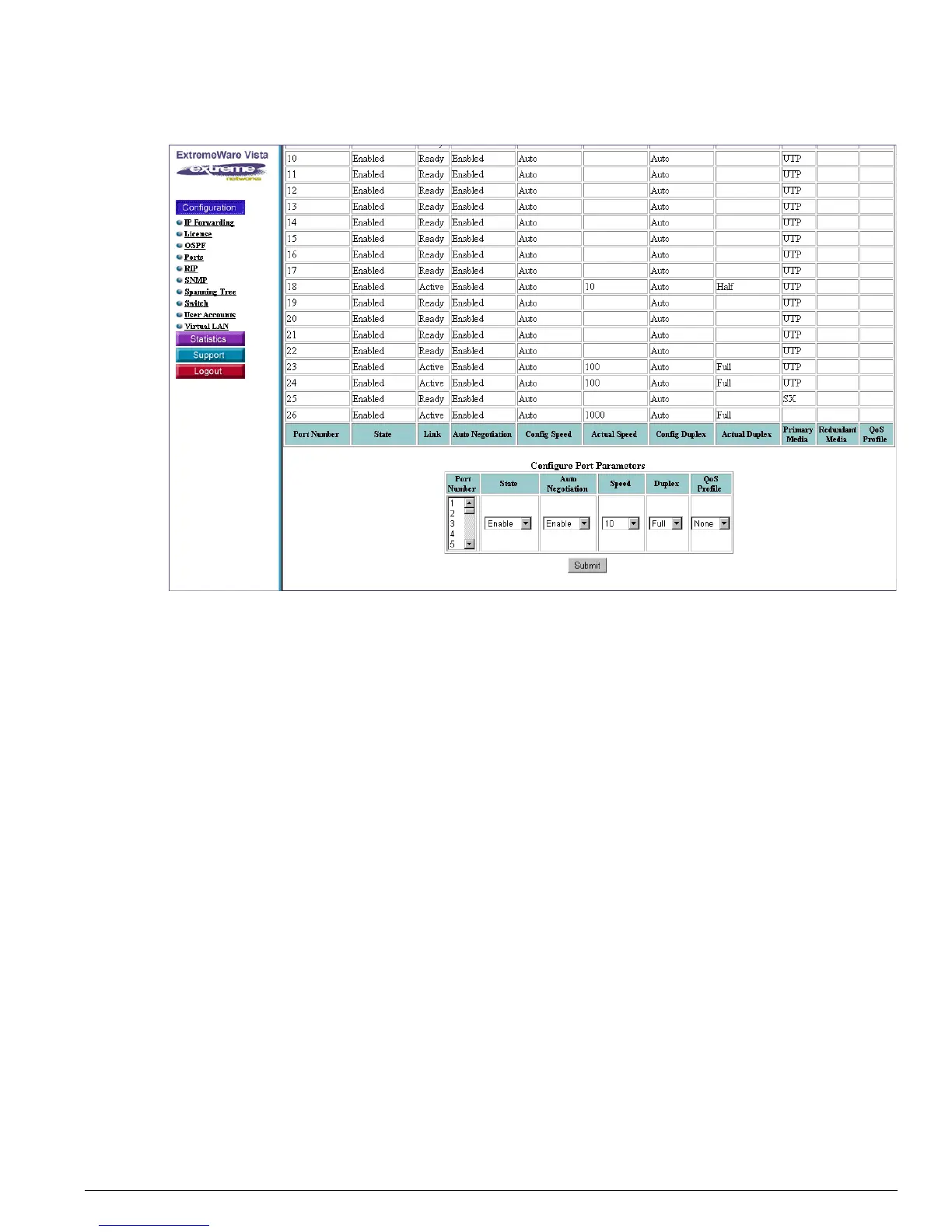

Figure 55: Configure Port Parameters
RIP
The RIP configuration window allows you to configure global RIP parameters or RIP for an IP interface.
Configure Global RIP Parameters
Use the global parameters to set up RIP for the switch. See the top portion of Figure 56 for an example
of the global parameters window. From this portion of the window, you can make multiple changes
with a single update:
• Enable or disable RIP for the switch.
• Enable or disable aggregation.
• Enable or disable redistribution of OSPF static routes through RIP.
• Enable or disable split horizon algorithm for RIP.
• Enable or disable poison reverse algorithm.
• Enable or disable trigger update mechanism.
• Change the periodic RIP update timer.
— Minimum setting = 10 seconds
— Maximum setting = Less than the RIP route timeout
— Default setting = 30 seconds
• Change the route timeout. The default setting is 180 seconds.
• Change the RIP garbage time. The timer granularity is 10 seconds. The default setting is 120 seconds.
