262 Summit 200 Series Switch Installation and User Guide
Using ExtremeWare Vista on the Summit 200
Redundant Media—The backup wiring media, always unshielded twisted-pair (UTP)
QoS Profile—A QoS profile in the format of QPn, where n is from 1 to 8

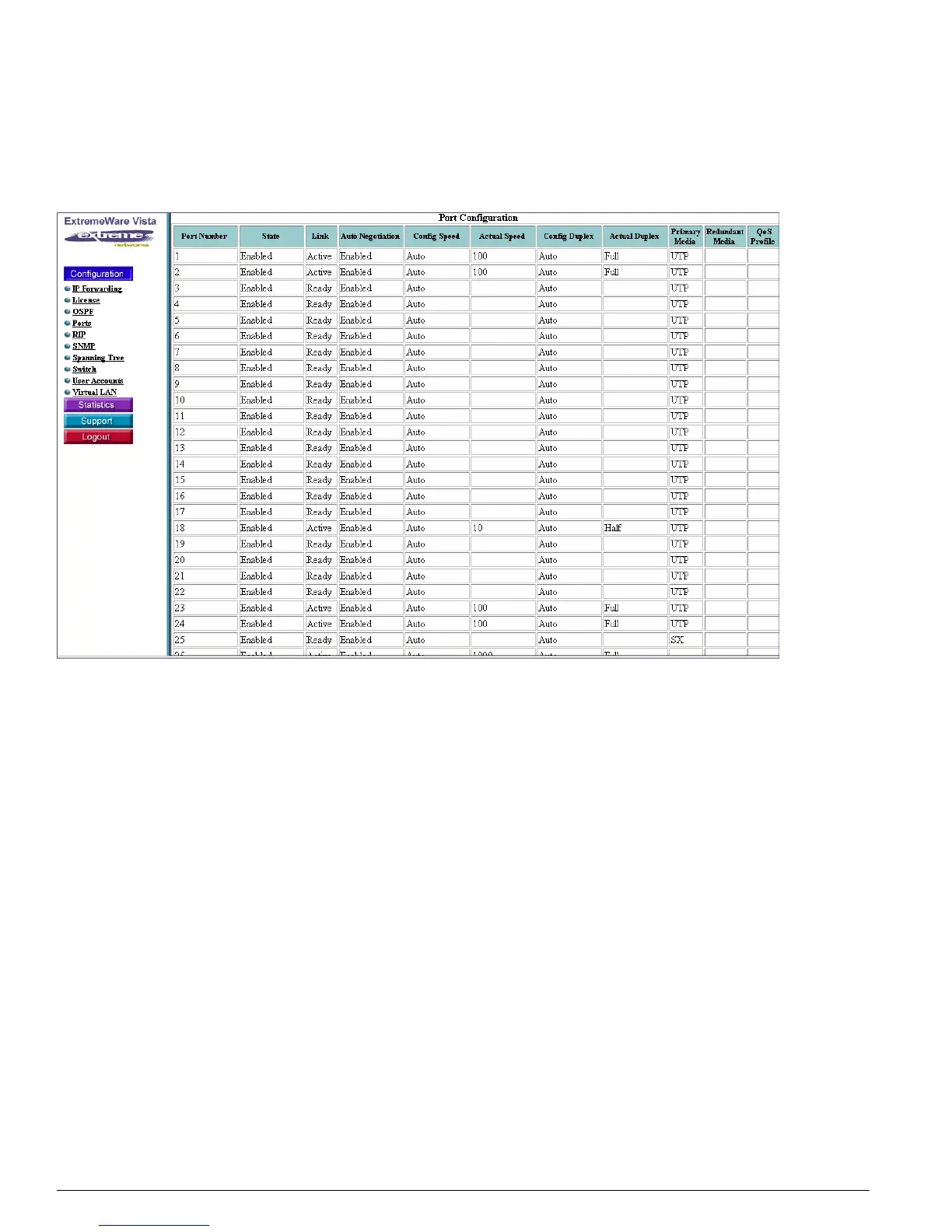

Figure 54: Port Configuration Window
Below the Port Configuration table is the box for configuring port parameters. When configuring ports,
you must select appropriate values for all parameters before submitting the change.
The selectable fields are:
Port Number—Summit 200-24 shows port numbers 1 to 26 while the Summit 200-48 shows port
numbers 1 to 50
State—The port state, either enabled or disabled
Autonegotiation—The autonegotiation of the port speed and the duplex setting, either enabled or
disabled
Speed—The setting for port speed, either 10, 100, or 1000
Duplex—The autonegotiation setting for the duplex setting, either half or full
QoS Profile—A QoS profile in the format of QPn, where n is from 1 to 8
