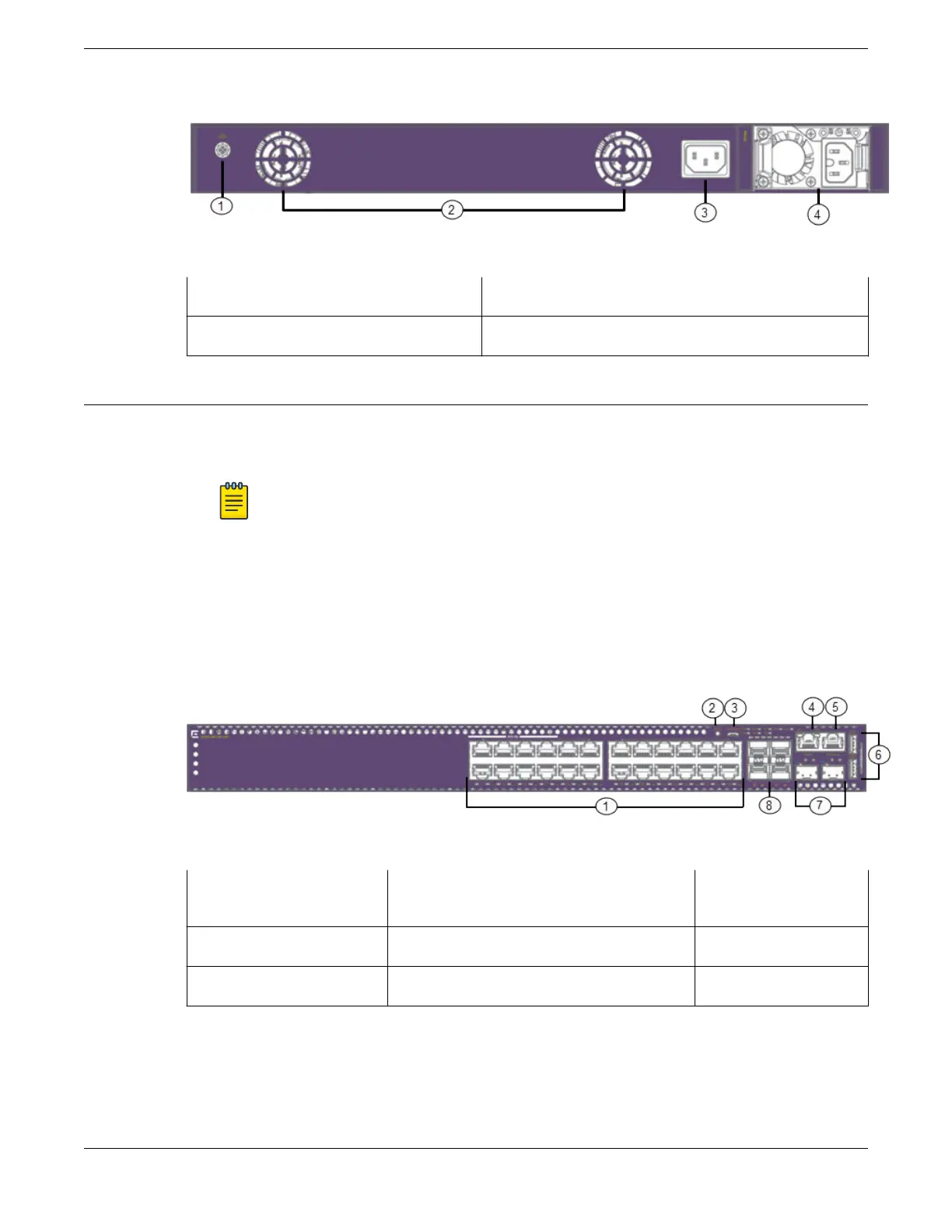

Figure 4: 5420F-24P-4XE Rear Panel
1 = Grounding lug 3 = AC power inlet connector
2 = Fixed fan modules 4 = Power supply slot
5420F-24S-4XE Switch Features
The front panel of the 5420F-24S-4XE switch includes:
24 100/1000BASE-X SFP MACsec capable ports (unpopulated)
Note
Half-duplex is not supported on these ports when operating at 1Gbps.
4 1/10Gb SFP+ MACsec capable uplink ports (unpopulated)
2 Stacking/SFP-DD ports (unpopulated)
1 Serial console port (RJ-45)
1 10/100/1000BASE-T out-of-band management port
2 USB Type-A ports for management or external flash
1 USB Micro-B console port
Figure 5: 5420F-24S-4XE Front Panel
1 = 100/1000BASE-X ports 4 = 10/100/1000BASE-T out-of-band
management port
7 = SFP-DD stacking
ports
2 = Mode button 5 = RJ-45 serial console port 8 = 1/10G SFP+ ports
3 = USB Micro-B console port 6 = USB Type-A ports
The rear panel of the switch includes:
2 fixed fan modules
Grounding lug
5420F-24S-4XE Switch Features
ExtremeSwitching 5420 Series Overview
16 ExtremeSwitching 5420 Series Hardware Installation Guide
