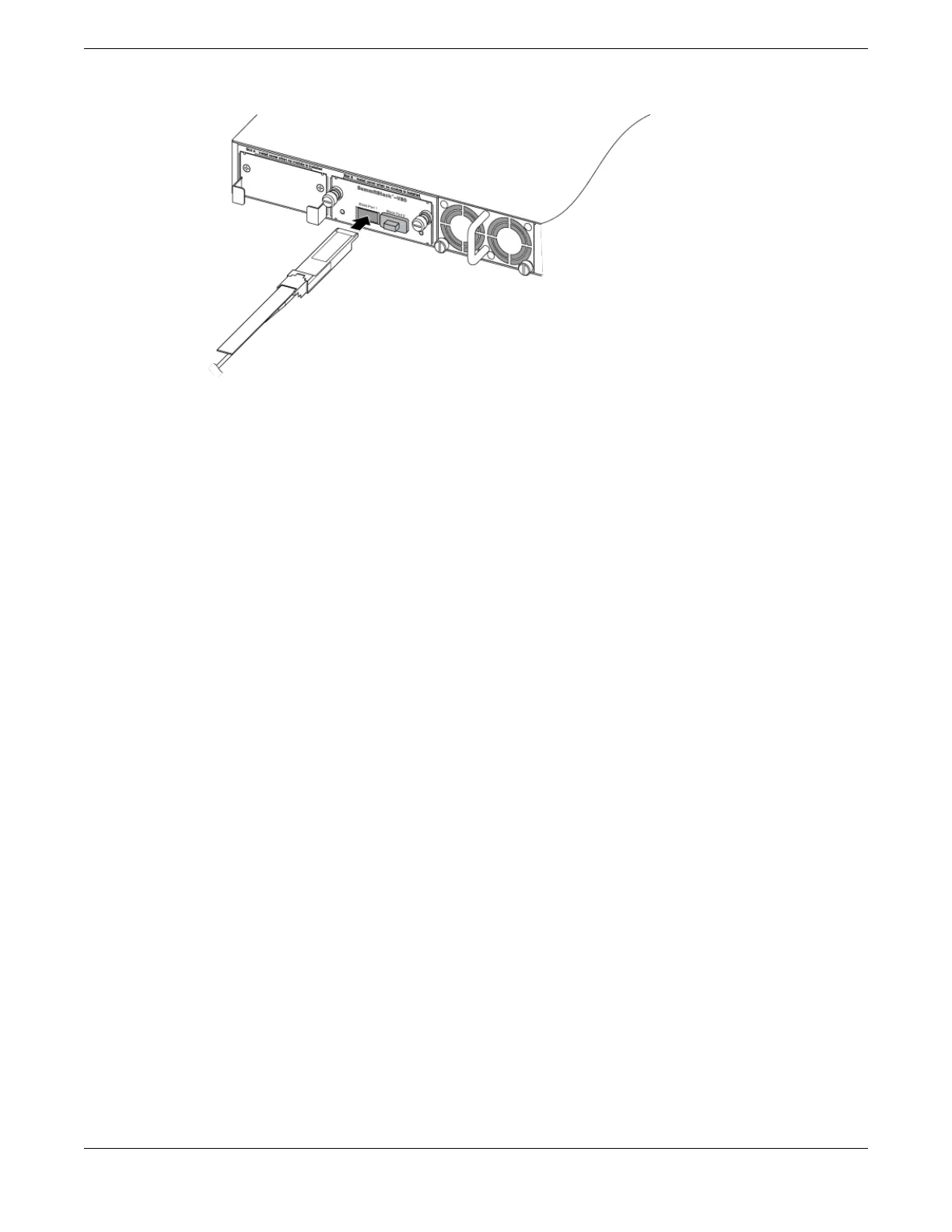

Figure 48: Connecting a QSFP+ Active Optical Direct-Attach Cable to a
SummitStack-V Module
2. Push the connector into the port until you hear it click into place.
Connecting Your Stack to the Management Network
Before you can configure ExtremeXOS for a new stack, your management console must be connected
to at least one switch in the stack.
Connect your management console to the Ethernet management port on the switch that will become
the stack primary node. If you plan to configure redundancy, connect to the console ports of all
switches in the stack that will be primary-capable.
If you followed the cabling examples in Connecting the Switches to Form the Stack Ring on page 66,
and if you use the Easy Setup configuration procedure, only slots 1 and 2 can become the primary node.
However, you can connect all switch management ports in the stack if you choose to do so. There is an
alternate IP address configuration that will enable you to log in directly to each switch in the stack
through its Ethernet management port.
See the ExtremeXOS 31.3 User Guide for instructions to perform the software configuration for your
stack.
Building Stacks
Connecting Your Stack to the Management Network
ExtremeSwitching 5420 Series Hardware Installation Guide 73
