CrossPoint / MAV Matrix Switchers • Operation 9
Operation
NOTE: The video selection button is labeled “RGBHV” on
the CrossPoint switchers and “Video” on the MAV Plus
switchers. The two labels are used interchangeably in this
guide.
Creating a Tie

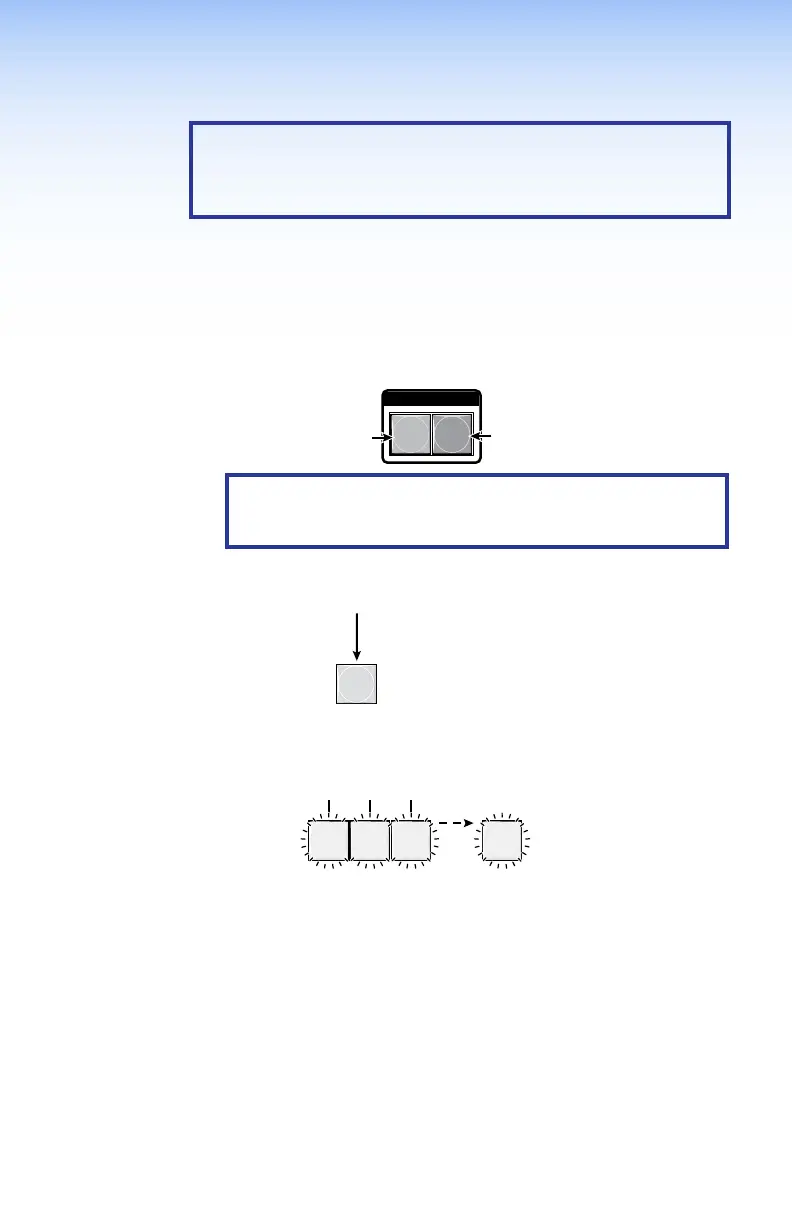

1. Press and release the Esc button to clear any input button,
output button, or control button indicators that may be lit.
2. Press and release the Video button, Audio button, or both to
select or deselect video, audio, or both, as desired.
Green when selected.
Off when deselected.
Red when selected.
Off
when deselected.
I / O
RGBHV AUDIO
NOTE: Audio or video can be broken away (tied by itself)
by selecting only the Video button or only the Audio
button.
3. Press and release the desired input button.
The button lights to indicate the selection.
5
4. Press and release the desired output button(s).
3 4
ENTER
8
Amber
indicates
RGBHV
/
video
and
audio
tie.
Green
indicates RGBHV/video only tie.
Red
indicates audio only tie.
Green
indicates the
need to confirm the
change.
5. Press and release the Enter button. All button indicators turn
off.
