A
Status lights — one on each side can be programmed to provide system feedback.
z Light red or green
z Blink or light continuously
B
Motion sensor — detects motion between three to five feet from the touchpanel, and at
least 15° from the center axis.
z When no motion has been detected for a user-defined period of time, the touchpanel
enters sleep mode.
z When motion is detected by the sensor, the screen display is restored and active.
C
Speaker — is located below the screen and provides audible feedback for the user. The
TLPPro 720 Series touchpanels have a single speaker on the left side of the panel. The
TLPPro1020 Series touchpanels have two speakers, one on each side of the panel.
DD

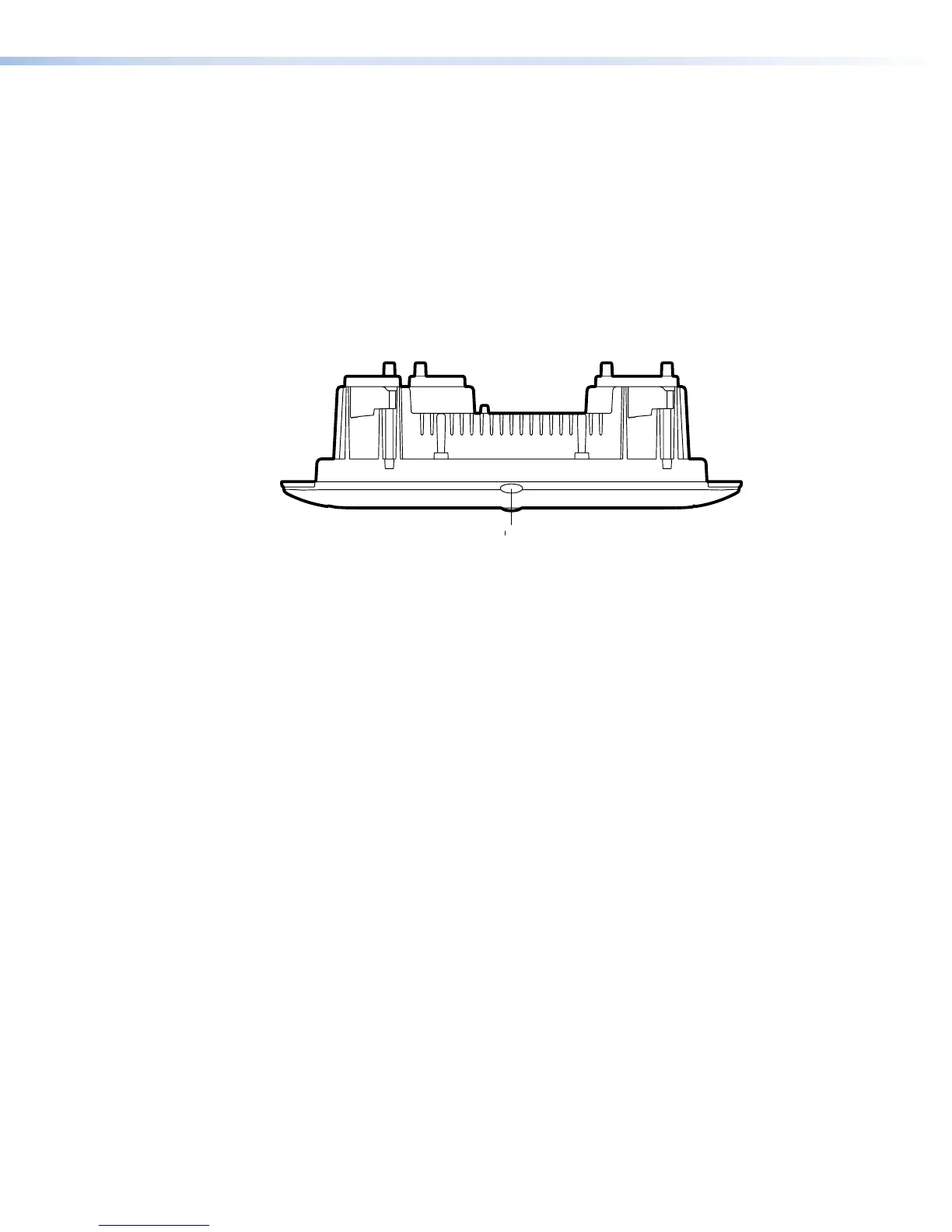

Figure 3. TLP PRO 720M Top View
D
Ambient light sensor — monitors ambient light level and adjusts screen brightness, based
on the settings configured using the setup menu (see page 14).
E
LCD screen — has a 800x480 resolution with a touch overlay (TLP Pro 720 Series) or
1024x600 resolution with a touch overlay (TLP Pro 1020 Series).
F
Communication LED — shows the configuration and connection status of the touchpanel:
z Unlit during normal operation (the touchpanel is configured and connected to an IP Link
Pro control processor).
z Blinks red if the touchpanel has been configured but is not connected to an IP Link Pro
control processor.
z Permanently lit if the touchpanel has not been configured and is not connected to an IP
Link Pro control processor.
The indicator can be toggled between enabled and disabled, using the setup menu (see
page 14).
TLP Pro 720 Series and TLP Pro 1020 Series • Panel Features 6
