Placement with a Kensington Security Lock

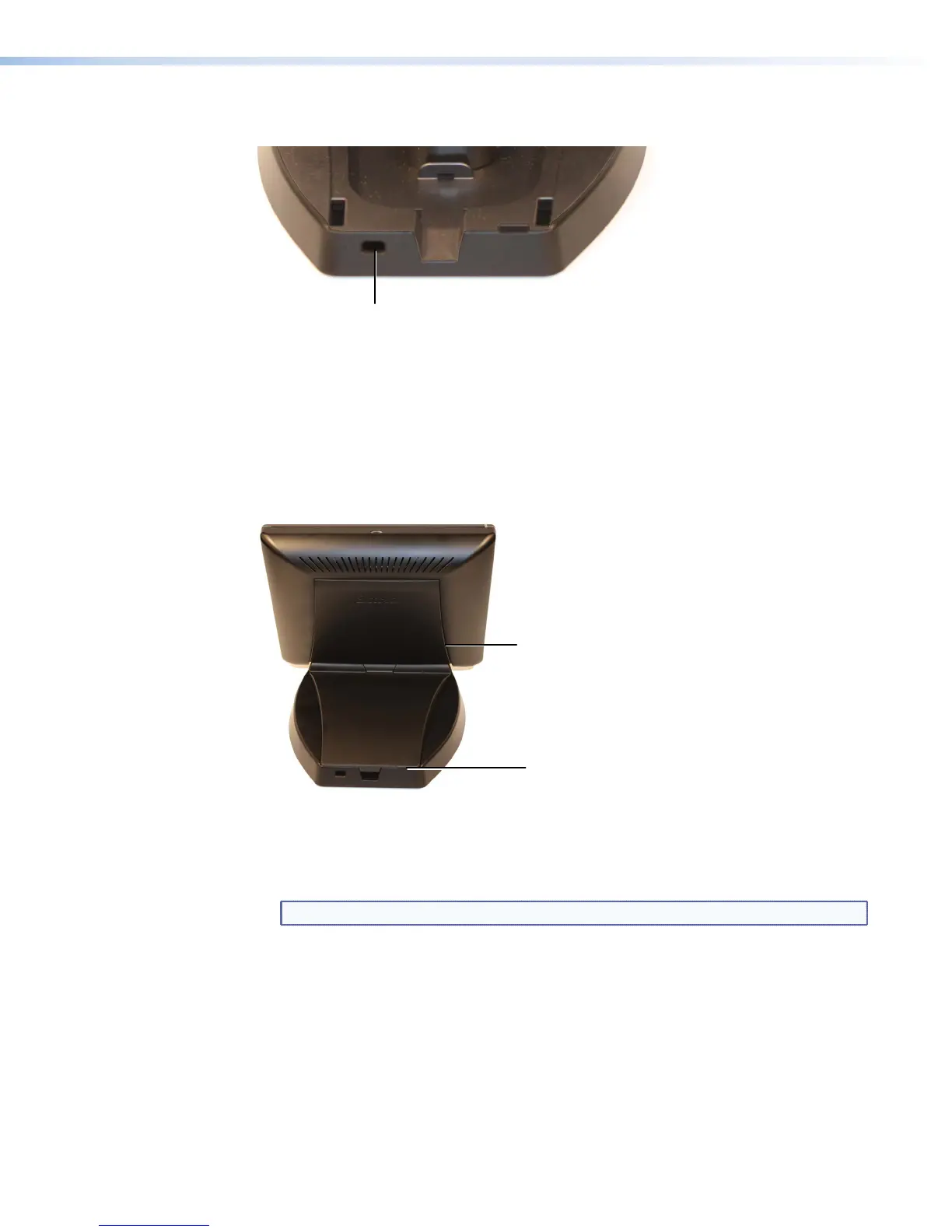

Figure 23. TLP Pro 720T Base, Showing Kensington Security Slot
For added security, attach a Kensington Security Lock (not provided) to the metal-reinforced slot
on the rear edge of the base. Figure 23 shows the rear edge of the TLP Pro 720T base, but the
TLP Pro 1020T base is very similar.
Follow the instructions that are provided by the manufacturer to install the lock.
SMA-1 swivel mount adapter
Both touchpanels can also be mounted with the optional Extron SMA-1 swivel mount adapter,
which allows them to be mounted permanently and swivel up to 180° in either direction.
Notch to Remove
Base Cover (2)
Notches to Remo
Back Cover (4)
Figure 24. Remove the Back and Base Covers
1. Remove the back cover and base cover, using the provided Extron removal tool. There are
two notches on each side of the back cover and two notches on the back edge of the base
cover.
NOTE: You must remove the back cover before you can remove the base cover.
TLP Pro 720 Series and TLP Pro 1020 Series • Mounting 27
