11XTP II CrossPoint Series • Installation
NOTE: See item
B
on figure 2 on page 4, figure 3 on
page 5, and figure 4 on page 6.

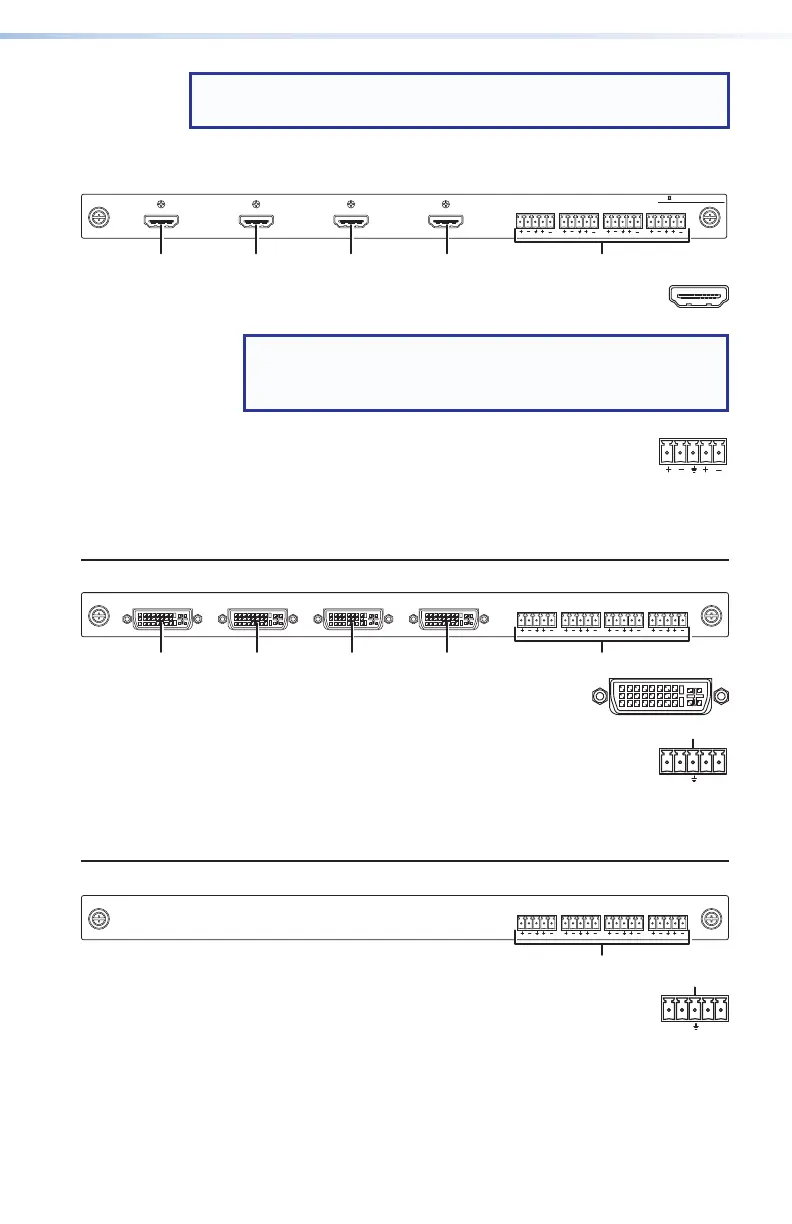

XTP II CP 4o HD 4K PLUS and XTP CP 4o HDMI (HDMI output
boards)
AUDIO
LR LRLR LR
OUTPUTS
XTP II CP 4o HD 4K PLUS
6666666677
6
HDMI connectors — Connect an HDMI video
display to each of these ports.
NOTE: See HDMI connectors on page 16 to secure
the connector with a LockIt HDMI Cable Lacing
Bracket.
7
Audio (local audio) connectors — Connect audio
devices, such as audio amplifiers or powered
speakers to these 3.5 mm, 5-pole captive screw
connectors to receive unamplified, line level audio (see
Local audio connectors on page 17 to wire the
connectors).
XTP CP 4o DVI Pro (DVI Pro output board)
OUT
XTP CP 4o DVI Pro
AUDIO
LR LRLR LR
OUT
8888888877
8
DVI connectors — Connect a DVI video
display to each of these ports.
7
Audio (local audio) connectors — Connect audio
devices, such as audio amplifiers or powered
speakers to these 3.5 mm, 5-pole captive screw
connectors to receive unamplified, line level audio (see
Local audio connectors on page 17 to wire the
connectors).
XTP CP 4o SA (analog audio output board)
OUT
XTP CP 4o SA
AUDIO
LR LRLR LR
OUT
77
7
Audio (local audio) connectors — Connect audio
devices, such as audio amplifiers or powered
speakers to these 3.5 mm, 5-pole captive screw
connectors to receive unamplified, line level audio (see
Local audio connectors on page 17 to wire the
connectors).
LR
RS-232 IR
Tx Rx Tx Rx
RS-232 IR
Tx Rx Tx Rx
