EYE-LCD4600M/W-SN14

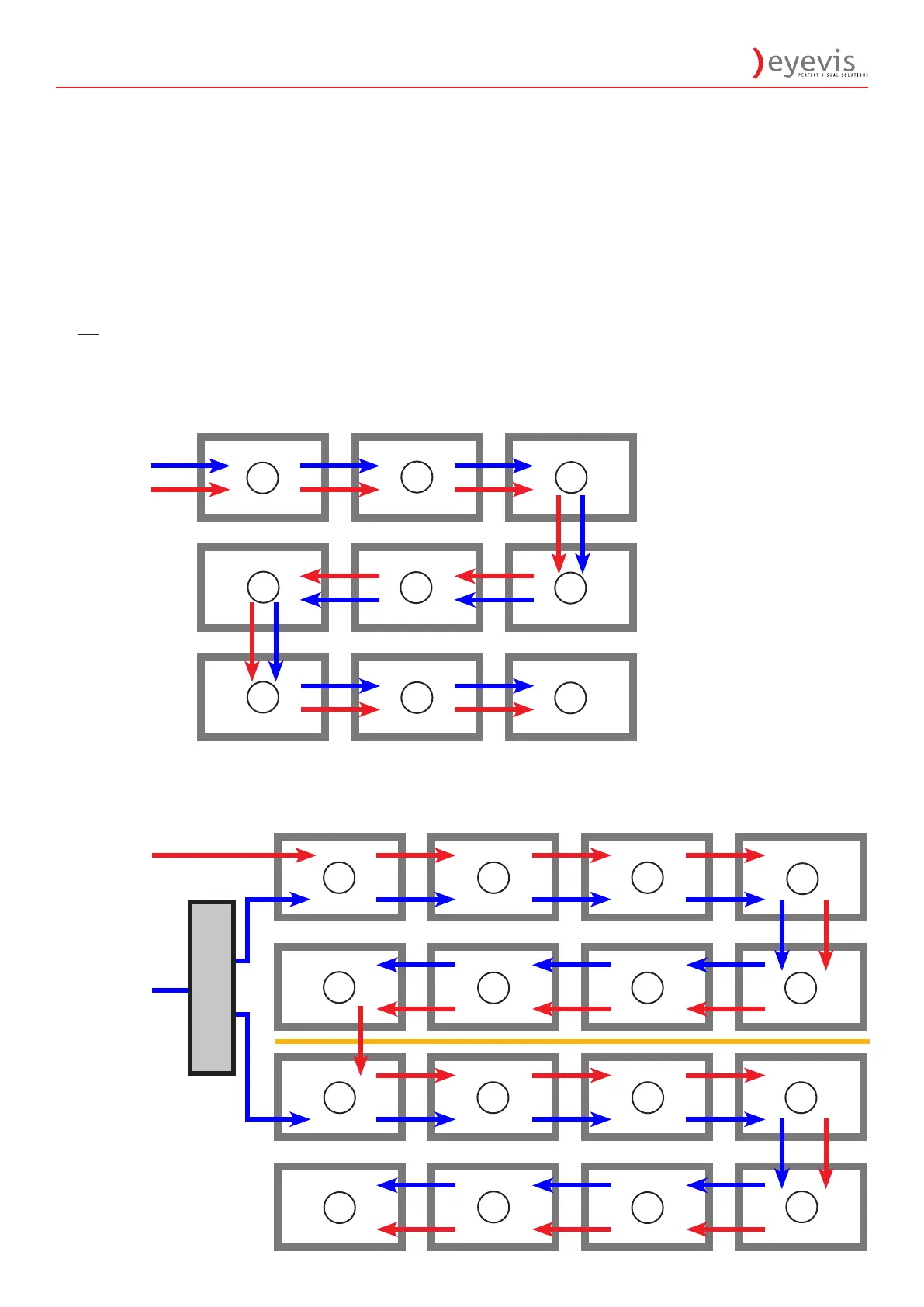

2.3.5 Example Video Wall Matrix 4x4 Displays
) In a video wall made up of more than 9 dsiplays, the DVI signal has to be split up into several daisy-
chains, e.g. 2 chains for 4x2 displays each.
2.3.6 Linking the Displays
) The EYE-LCD4600M/W-SN displays are especially designed for video wall applications.
) The size of the video wall matrix may range from 1x1 up to 10x10 displays
) Displays within a video wall matrix have to be addressed consecutively from 0 - 99
) Signal-Daisy-Chain DVI: DVI signals can be daisy-chained through up to 9 displays (depending on the
resolution, cabel lengths, cable quality, graphic cards, etc.). For video wall sizes comprising more than 9
displays, the signal hasto be split up (c.f. 2.7.3 Example video wall matrix 4x4).
) No Daisy-Chain for video signals
2.3.7 Example Video Wall Matrix 3x3 Displays
) Direct signal-daisy-chain for DVI signals in a display matrix comprising up to 9 displays.
DVI / RGB
RS232
1
2
3
4
5
6
7
8
9
DVI / RGB
DVI Splitter
1 2
3
4
5 6
7 8
9 10
11
14
13 15
12
16
RS232
