7.8.4. Remove gravity latch and finger catch from bag.
IMPORTANT! Discard the screws included in the same bag as the gravity latch
and finger catch, as they will not be used. Instead, use the screws included in
the separate hardware bag for the following steps.
7.8.5. Center finger catch on the gate square tube opposite the hinge and mark center of
holes with a pencil. Drill three 1/8″ holes through one side of the vertical handrail
tube (FIG. 7.17).
7.8.6. Use 1/4" nut driver to secure catch with screws (FIG. 7.18).

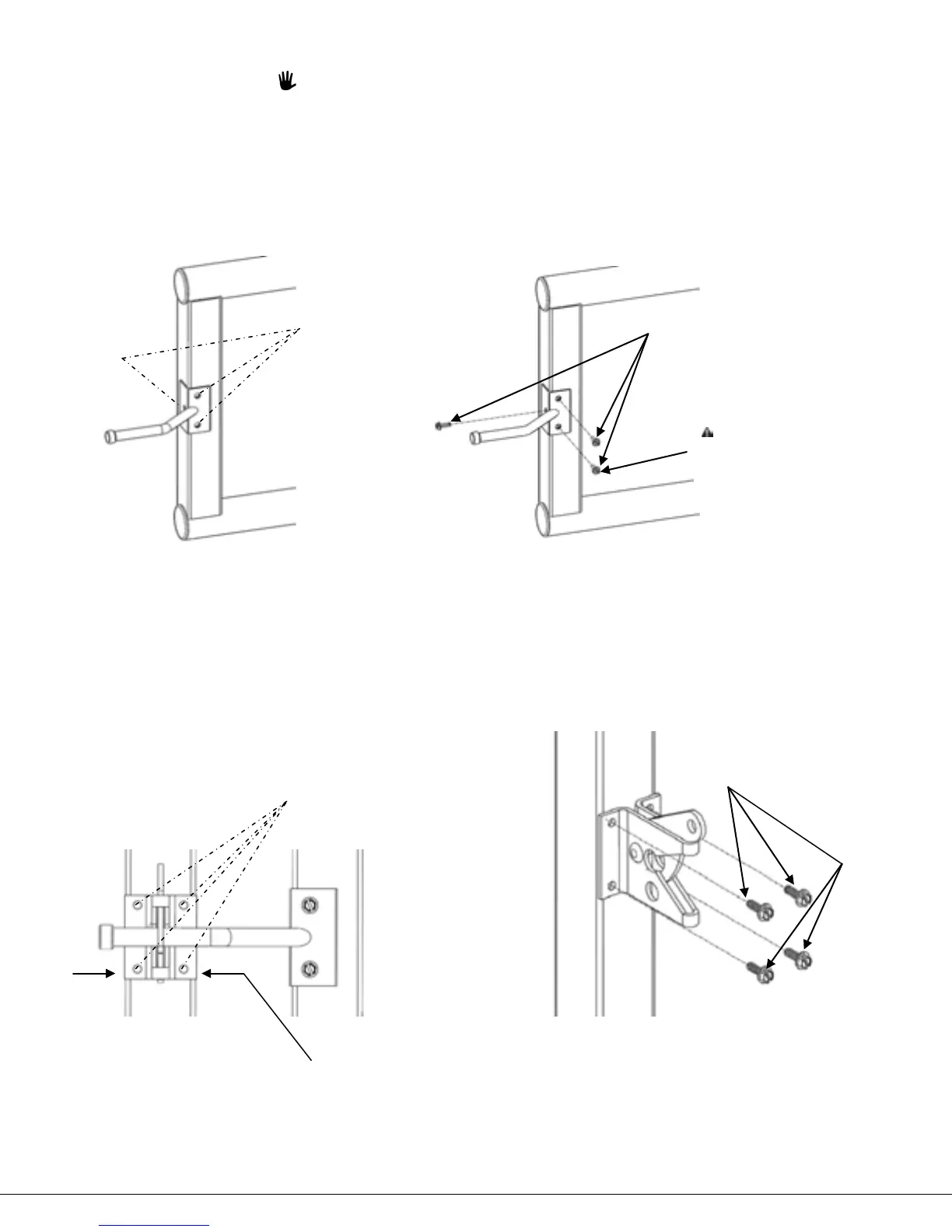

FIG. 7.17
FIG. 7.18
7.8.7. Clip the latch to the finger catch and center on the step or ramp vertical square tube.
Mark center of the holes with pencil. Drill four 1/8″ holes through one side of the
vertical handrail tube (FIG. 7.19).
7.8.8. Use 1/4″ nut driver to secure latch using screws. (FIG. 7.20).
FIG. 7.19
FIG. 7.20
WARNING
INSTALL BOLT FROM
THIS SIDE
8 X 1/2″ LONG HEX
WASHER HEAD SCREW
WASHER HEAD SCREW
