4.3. ASSEMBLE HORIZONTAL PICKET RAMP HANDRAILS
4.3.1. Assemble the Horizontal Picket ramp handrails before installing on the ramp.
4.3.2. Starting with the uppermost holes, insert a horizontal picket between the ramp handrail
frame posts and secure using the 5/16”-18 x 2-1/4” long hex bolts and 5/16” flat washers
provided (FIG. 4.4).
4.3.3. Insert the five remaining horizontal pickets in the same manner until all six have been
installed. It is strongly recommended the bolts be assembled loosely and not fully
tightened until all twelve have been installed and the handrail has been installed on the
ramp.
4.3.4. Install the handrail on the ramp and connect the ramp handrails per “HANDRAILS’
section.

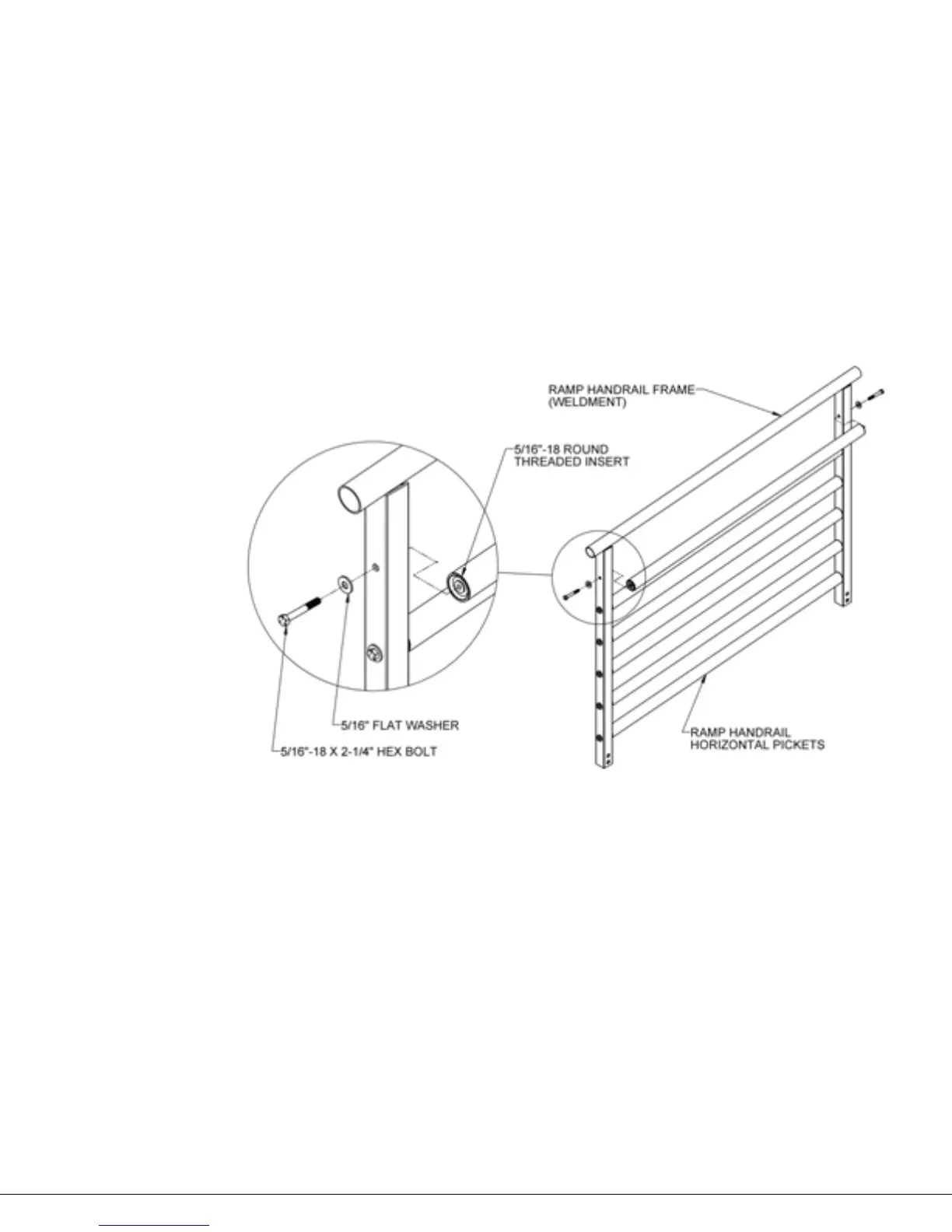

FIG. 4.4
