2. PLATFORMS

2.1. INSTALL PLATFORMS

If your system does not include a platform, skip to ‘CONNECT RAMP SECTIONS’.

Platform handrails are shown for clarity of how to orient platforms in various configurations. It

is strongly suggested that all platforms and ramps be installed before installing handrails (see

‘HANDRAILS’ section).

2.1.1. There are four basic platform arrangements (one or more of these platform arrangements

may be used in an installation). All four require the same procedure for assembly except for

FIG.2.3 which requires an additional PPPC (PLATFORM TO PLATFORM CONNECTOR).

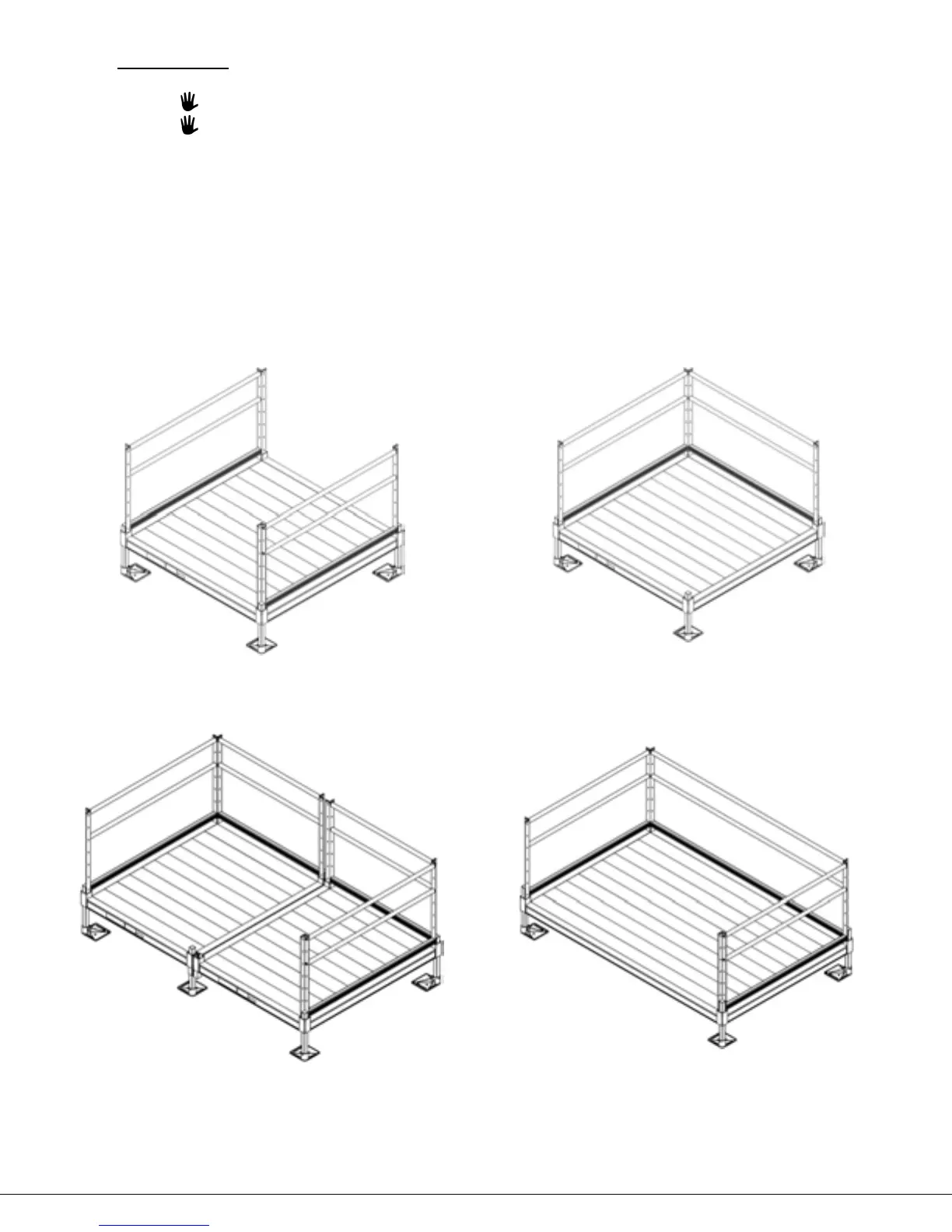

FIG. 2.1 Platform in straight configuration.

FIG. 2.2 Platform in turn configuration.

FIG. 2.3 Platforms in turn back configuration (two 5' x 4' platforms shown

combined to make 5' x 8’ turn back).

FIG. 2.4 8’ x 5’ turn back platform.

FIG. 2.1

FIG. 2.2

FIG. 2.3

FIG. 2.4
