Page 60 of 72
7.2. RAMP LOWER TRANSITION
7.2.1. The lower transition, in combination with an PRST (RAMP SUPPORT TOP) is commonly
used to span wider gaps or accommodate larger angular misalignment than can be
achieved with an upper transition. It can also be used in place of the ground transition in
some situations. Despite being called a lower transition, it can be used at either end of a
ramp or ramp run.
The lower transition is the larger of the two transitions.

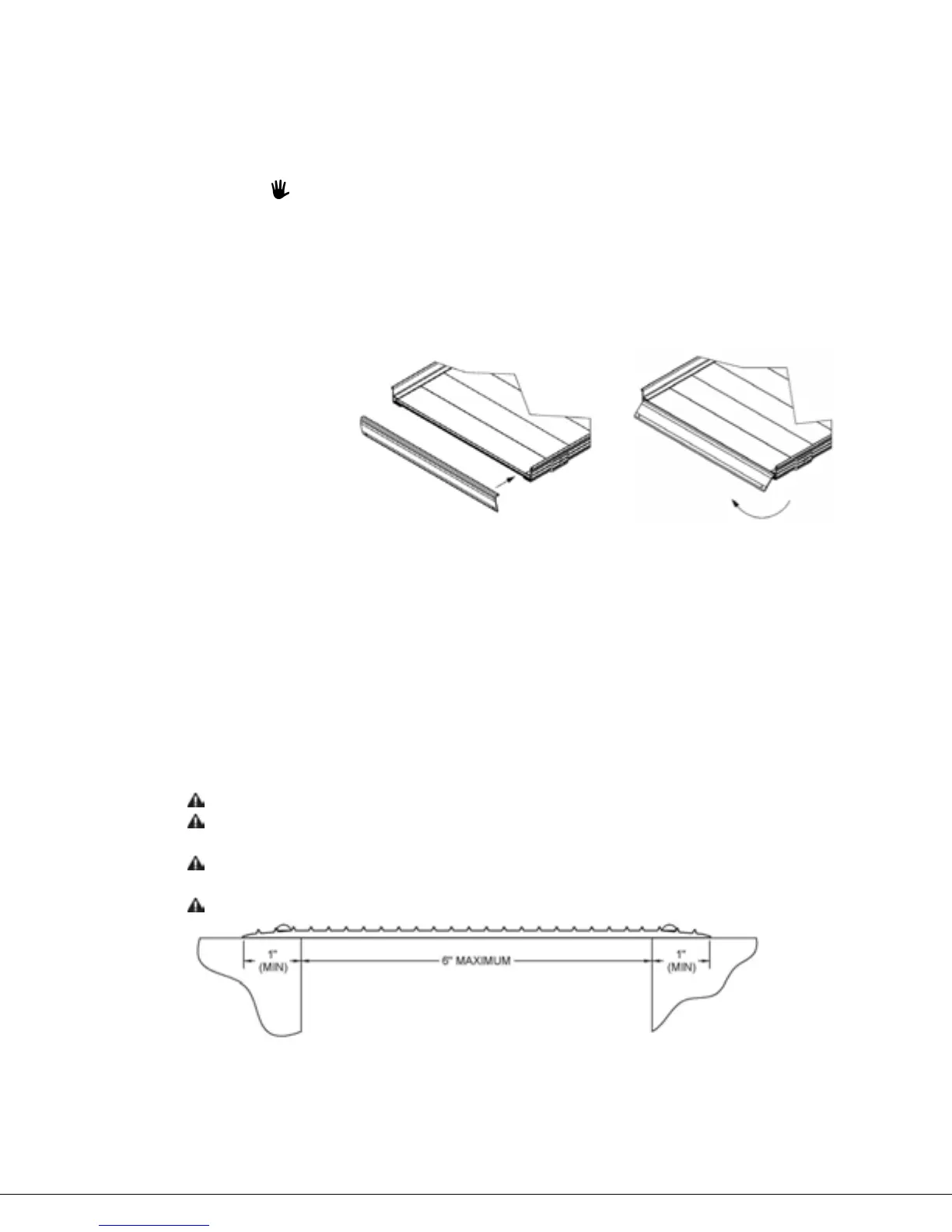

7.2.2. Lift the end of the ramp and install the lower transition as shown (FIG. 7.3).
7.2.3. If the lower transition is resting on the ground, anchoring is optional.
7.2.4. If a lower transition is resting on any type of raised area (i.e., a platform, deck or porch),
it must be anchored using the same procedures as used in ‘ANCHOR RAMP UPPER
TRANSITION.’
FIG. 7.3
7.3. SINGLE BRIDGE PLATE
7.3.1. Securing to WOODEN SURFACE OR PLATFORM:
7.3.1.1. To secure to a wooden deck or platform, use the four supplied 1/4″ x 1″ self-
drilling self-tapping screws.
7.3.2. Securing to CONCRETE OR ASPHALT:
7.3.2.1. To secure to concrete or asphalt, drill a 1/4″ diameter hole at least 1 1/4″
deep. Ensure that all debris from the hole is removed using a shop vacuum,
blower or other suitable type of equipment.
7.3.2.2. Insert the four supplied pin head mushroom anchors and secure by using a
hammer to drive the pin in flush with the mushroom.
Use PBPxx (BRIDGE PLATE) in the horizontal (flat) position only.
It is intended to be used to bridge gaps up to a maximum of 6” between a platform and a porch
or deck. IT IS NOT INTENDED TO BE USED AS A RAMP OR ON AN INCLINE.
Ensure that at least 1” on each of the supporting edges of the plate is supported on a good,
sound construction surface that is free from defects (FIG 7.4).
