INSTALL RAMP HANDRAIL END LOOPS
6.1.6. The PATHWAY 3G Modular Ramp System may include both upper and lower end loops
(FIG. 6.4). Upper and lower end loops are installed in the same manner. If the end loop
being installed doesn’t fit correctly (i.e. the connector plate is angled the wrong direction,
the lower leg seems too long or short), you are most likely trying to install it on the wrong
end of the ramp or ramp run.
6.1.6.1. Install the o-ring over the swaged portion of the end loop until it rests against
the loop shoulder (FIG. 6.5).

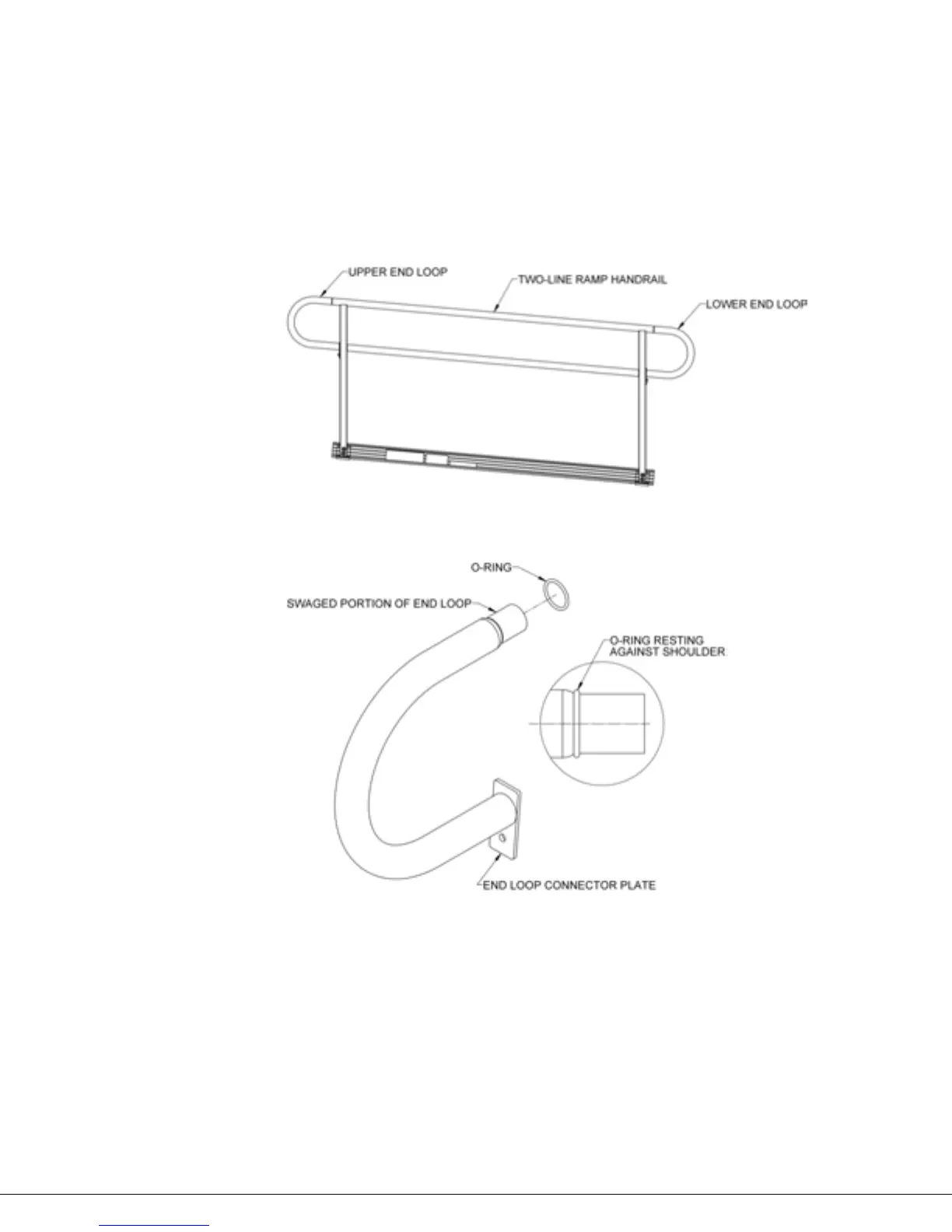

FIG. 6.4
FIG. 6.5
