Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
MAINTENANCE
(5 - 6.2 Nm) torque. The hold downs must be tight enough to prevent movement of the battery, but do not
tight enough to cause distortion of the battery cases. Inspect all wires and terminals. Clean corrosion from
the battery terminals or the wire terminals with a solution of sodium bicarbonate (baking soda) and soft brush
if needed.
Make sure you connect the battery wires as shown.
Tighten the battery terminal hardware to 98 - 105 in. lbs.
(11 -12 Nm) torque. Do not over-tighten the terminal
stud nut, this will cause a “mushroom” effect on the
battery post which will prevent the terminal nut from
being correctly tightened.
Protect the battery terminals and battery wire
terminals with a commercially available coating.

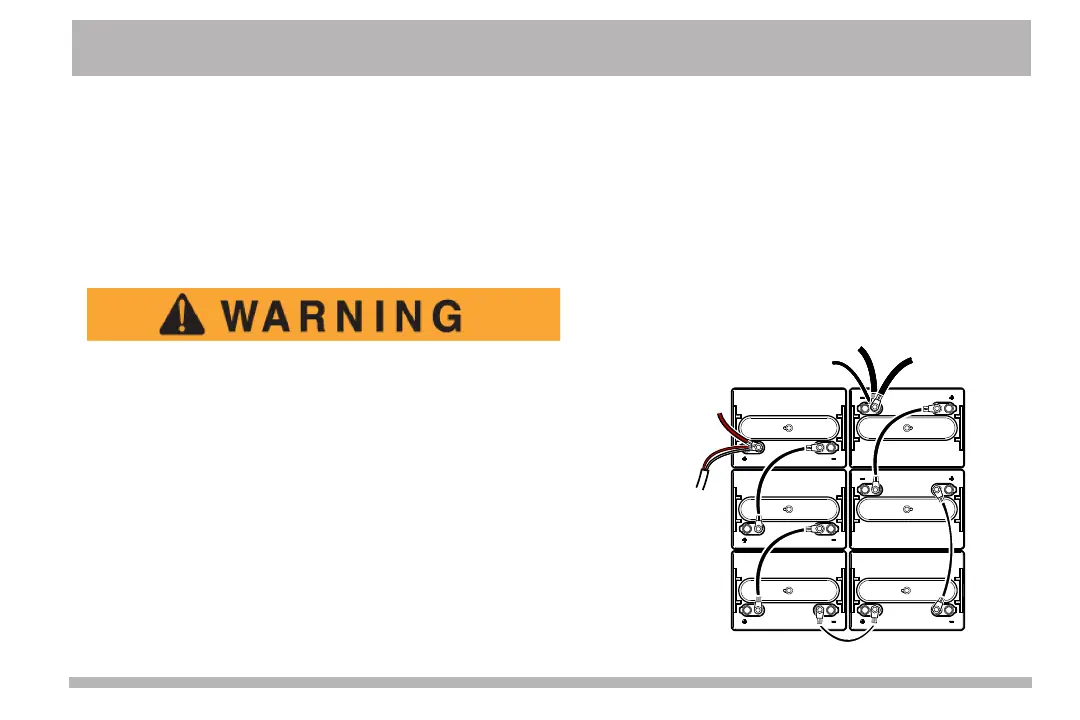

6 - 8V BATTERY SYSTEM
BL+ Red Wire
from Solenoid
Black Wire from
Charger Receptacle
BL- Black Wire
from Controller
Black Wire
from Harness
Red and Grey
Wires
from
Charger Receptacle
Be careful when you use aerosol containers
near the battery terminals. Use a container
with insulation to prevent an explosion.

Ezgo 2Five Specifications

General

Seating Capacity	4
Drive Train	Rear-wheel drive
Category	Golf Cars
Power Source	Electric
Lights	LED headlights, taillights, and brake lights
Motor	AC induction motor
Brakes	Hydraulic Disc
Suspension	Independent front suspension with leaf spring rear suspension
Batteries	Six 8V deep cycle
Frame	Welded Steel
Instrumentation	Digital display
Mirrors	Side Mirrors
Safety Features	Seat belts, horn, and reflectors
Charger	On-Board Charger
Ground Clearance	4.5 inches
Top Speed	25 mph
