Platform Overview
About i2000/i4000 Series models
The i2000/i4000 Series platform is a powerful system that is designed specifically for application
delivery performance and scalability
.
For more information, please see the data sheet at www.f5.com/pdf/products/big-ip-platforms-
datasheet.pdf.
About the platform
Before you install this platform, review information about the controls and ports located on both the front
and back of the platform.
On the front of the platform, you can use the LCD touchscreen to view information about, manage, and
reset the system. Y
ou can also use the front-panel LEDs to assess the condition of the system.

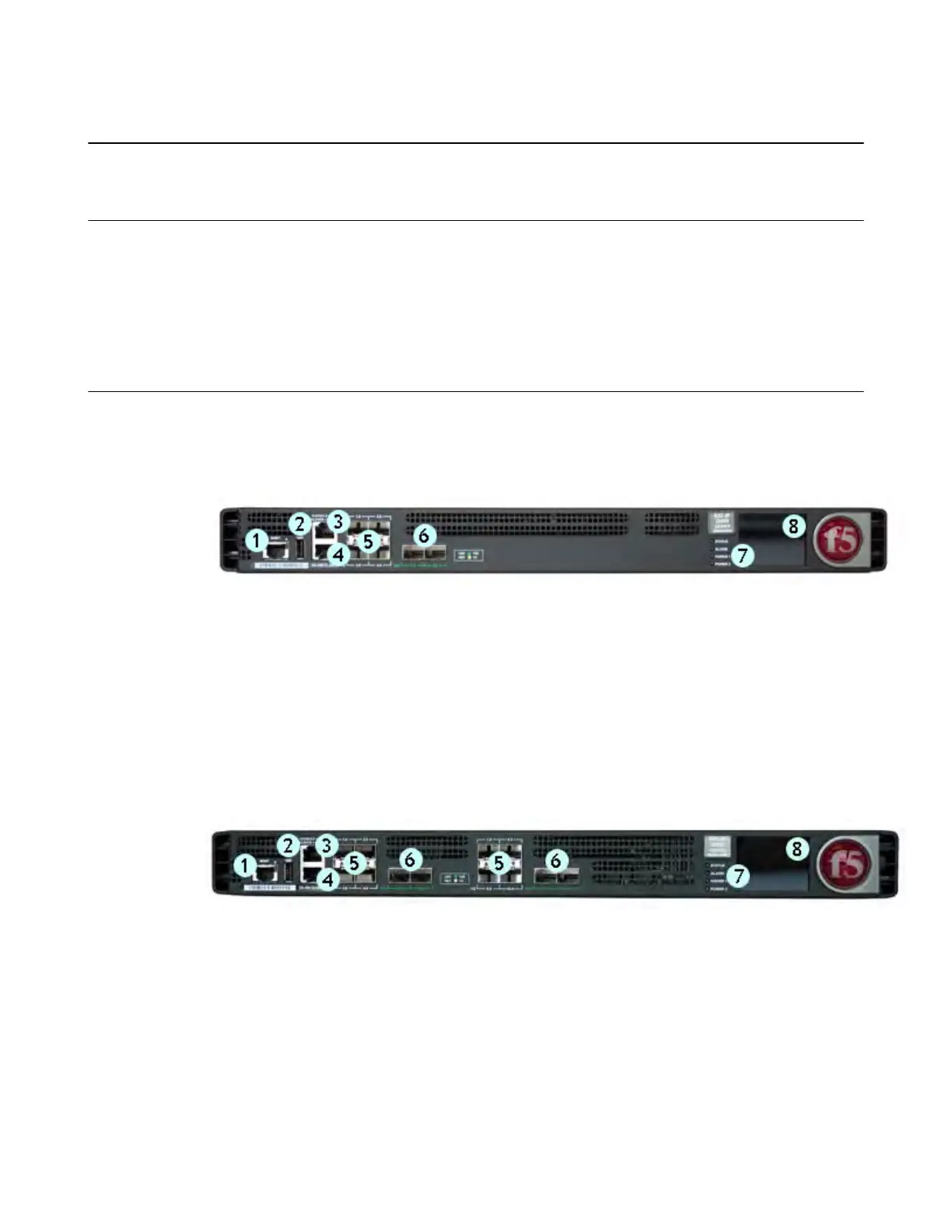

Figure 1: Front view of the i2000 Series platform
1. 10/100/1000-BaseT capable management port
2. Hi-Speed USB port
3. Console serial port
4. Serial (hard-wired) failover port
5. 1GbE SFP ports (4)
6. 10GbE SFP+ ports (2)
7. Indicator LEDs
8. 2.2 inch LCD touchscreen
Figure 2: Front view of the i4000 Series platform
1. 10/100/1000-BaseT capable management port
2. Hi-Speed USB port
3. Console serial port
4. Serial (hard-wired) failover port
5. 1GbE SFP ports (8)
6. 10GbE SFP+ ports (4)
7. Indicator LEDs
8. 2.2 inch LCD touchscreen
