FAAC 390 User Manual

6
ENGLISH
ENGLISH
AUTOMATION 390
These instructions apply to the following model:
FAAC 390
The 390 external automation with articulated arms automates
residential swing-leaf gates with leaves of up to 3m in length,
and is ideal for applications on large pilasters without the need
to provide niches (sometimes required to observe the installa-
tion dimensions of piston driven devices).
It consists of an irreversible electro-mechanical operator with
guard and an articulated-arm activation system to be fitted to
the gate with the appropriate accessories.
The irreversible system ensures the gate is mechanical locked
when the motor is not operating. No lock need be installed for
leaves up to 1.8 m in length.
A manual release makes it possible to move the gate in the
event of a power-cut or fault.
Ü To obtain anti-crushing protection, you have to use electronic
appliances with a torque control electronic device.
The 390 automation was designed and manufactured to control
access of vehicles. Avoid any other use whatever.
1. DESCRIPTION AND TECHNICAL SPECIFICATIONS

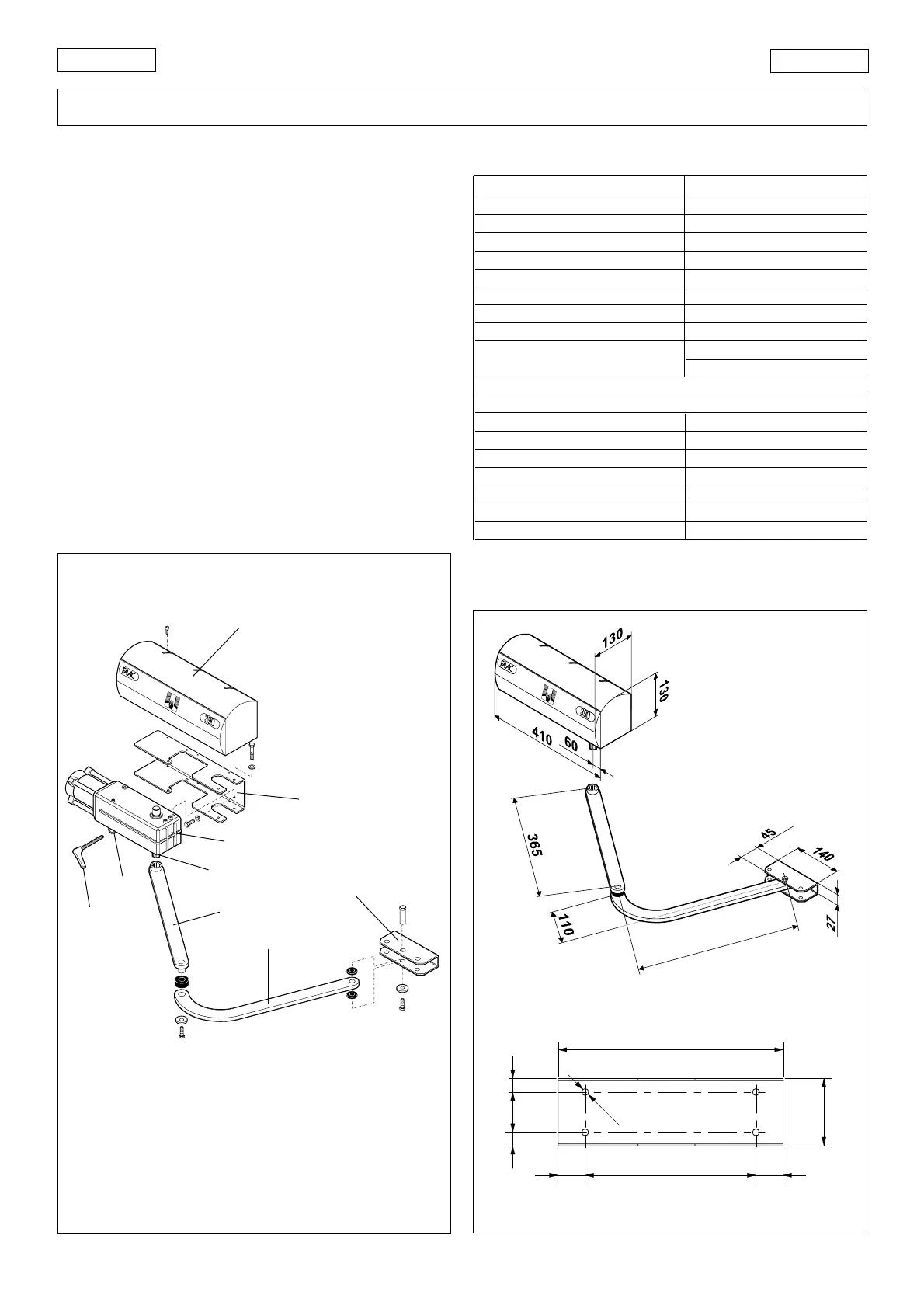

Fig. 1
aa
aa
a Guard
bb
bb
b Operator securing base-plate
cc
cc
c Gearmotor
dd
dd
d Transmission shaft
ee
ee
e Straight lever of articulated arm
ff
ff
f Curved lever of articulated arm
gg
gg
g Front coupling
hh
hh
h Release
ii
ii
i Release wrench
TAB. 1 TECHNICAL SPECIFICATION OF OPERATOR 390
MODEL 390
Power supply 230V~ (+ 6 % - 10 %) 50Hz
Power absorbtion (W) 280
Max torque (Nm) 250
Angular velocity (°/sec) 9
Use frequency (cycles/hour) 15
Ambient temperature -20 ÷ +55 °C
Weight of gearmotor (Kg) 11.5
Protection class IP 31
Leaf max length (m) 1.8 (without electric lock)
3 (with electric lock)
Gearmotor overall dimensions LxHxD (mm) see fig. 2
Technical specifications of electric motor
RPM 960
Reduction ratio 1 : 640
Thermal protection for winding 140°C
Power (W) 280
Current absorption(A) 1.5
Starting capacitor 8µF
Power supply 230V~ (+ 6 % - 10 %) 50Hz
2. DIMENSIONS
Fig. 2
• measurements in mm
400
332
250
60
100
==
==
Ø10
a
b
d
c
e
g
h
f
i

FAAC 390 Specifications

General

Max Leaf Weight	300 kg
Operation Temperature	-20°C to +55°C
Protection Class	IP 54
Usage	Residential
Motor Type	Electromechanical
Voltage	230V
Maximum Leaf Weight	300 kg
Type	Electromechanical Swing Gate Operator
Gate Type	Swing Gate
Max Leaf Length	3 m
Maximum Leaf Width	3 m
