AUTOMATION SYSTEM 550 & 550 MPD
These instructions apply to the following models:
550 I - 550 Slave
The FAAC 550 automation system is designed to operate residential
counterbalanced up-and-over garage doors.
It consists of an electromechanical operator, a control unit
with courtesy light and a protective cover integrated into a
single unit to be mounted on the garage door panel using the
relevant accessories.
The irreversible system locks the door mechanically when the
motor is not running, so a lock is not required. A manual release
device allows the door to be operated in the case of a power
failure or malfunction.
Anti-crushing safety is assured by an adjustable electronic
device.
The 550 automation system allows two operators (550 I + 550
Slave) to be installed on the same door.
The 550 automation system has been designed and constructed
for vehicle access control. Do not use for any other purpose.

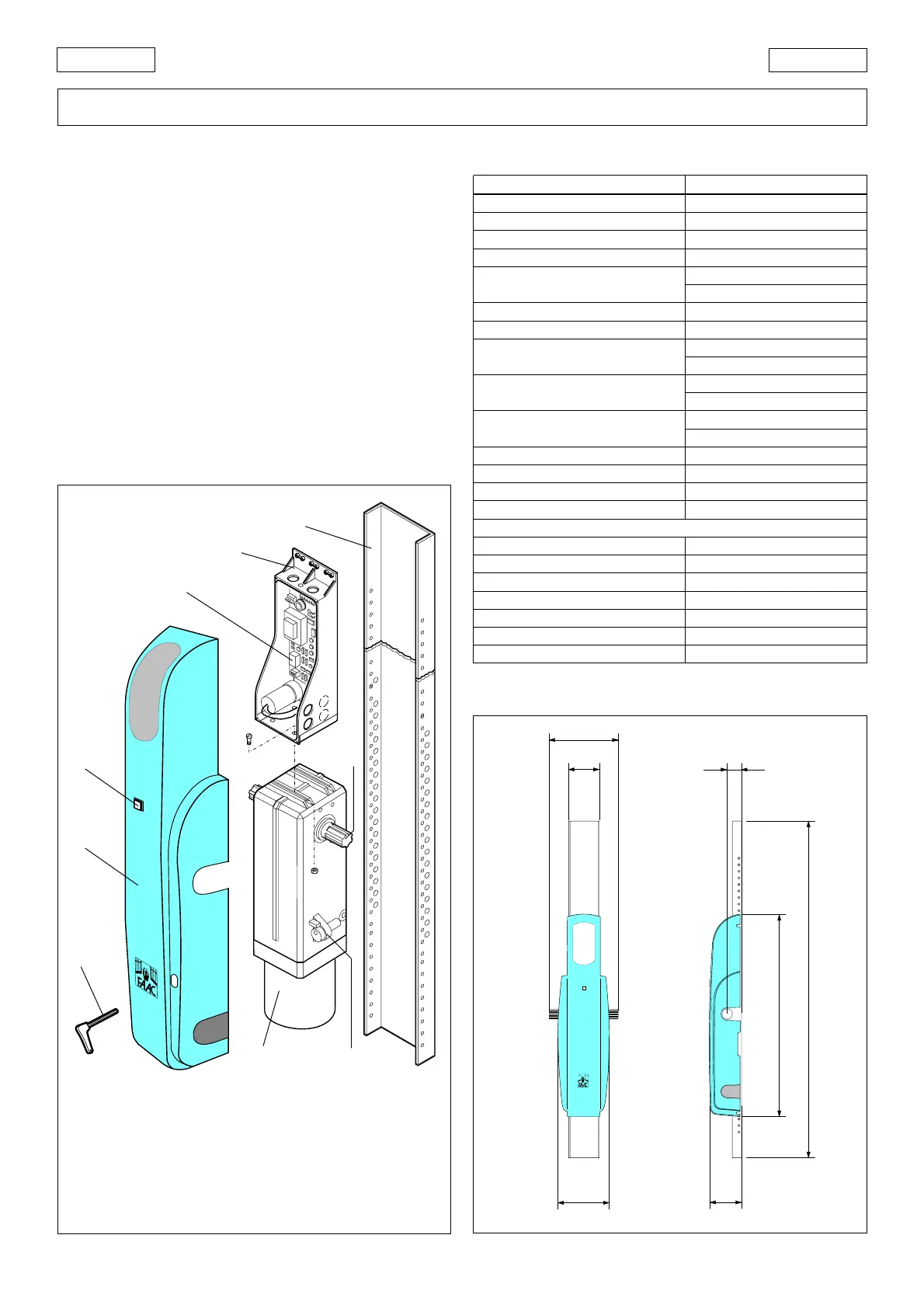

1. DESCRIPTION AND TECHNICAL SPECIFICATIONS
Fig. 1
햲햲
햲햲
햲 Cover
햳햳
햳햳
햳 OPEN button
햴햴
햴햴
햴 550MPD control unit
햵햵
햵햵
햵 Control unit box
햶햶
햶햶
햶 Back plate
햷햷
햷햷
햷 Drive shaft
햸햸
햸햸
햸 Release device
햹햹
햹햹
햹 Geared motor unit
햺햺
햺햺
햺 Release key
TABLE 1 550 OPERATOR TECHNICAL SPECIFICATIONS
MODEL 550
Power supply 230VAC - 50Hz
Power consumption (W) 360
Max. torque (Nm) 300
Angular velocity (°/sec) 12
Duty cycle (cycles/hour) 15 (without limit switch)
25 (with limit switch)
Temperature range -20 ÷ +55°C
Geared motor weight (kg) 13
Housing protection IP 31
IP 44 (with Kit)
Max. door width (m) 3 (1 operator)
4 (2 operators)
Max. door height (m) 2.7 (1 operator)
3 (2 operators)
Max. door weight (kg/m
2
) 10
Clutch electronic
Control unit 550MPD
Geared motor dimensions LxHxD(mm) see fig.2
Technical characteristics of electric motor
Speed (rpm) 1400
Reduction ratio 1 :700
Thermal cutout on winding 135 °C
Power (W) 350
Current draw (A) 1.5
Surge capacitor 8µF
Power supply 230VAC - 50Hz
2. DIMENSIONS
Fig. 2
175
100
160 120
50
670
1500/2000
• values in mm
햲
햳
햵
햴
햶
햸햹
햺
햷
