FAAC 550 MPD User Manual

15
ENGLISH
ENGLISH

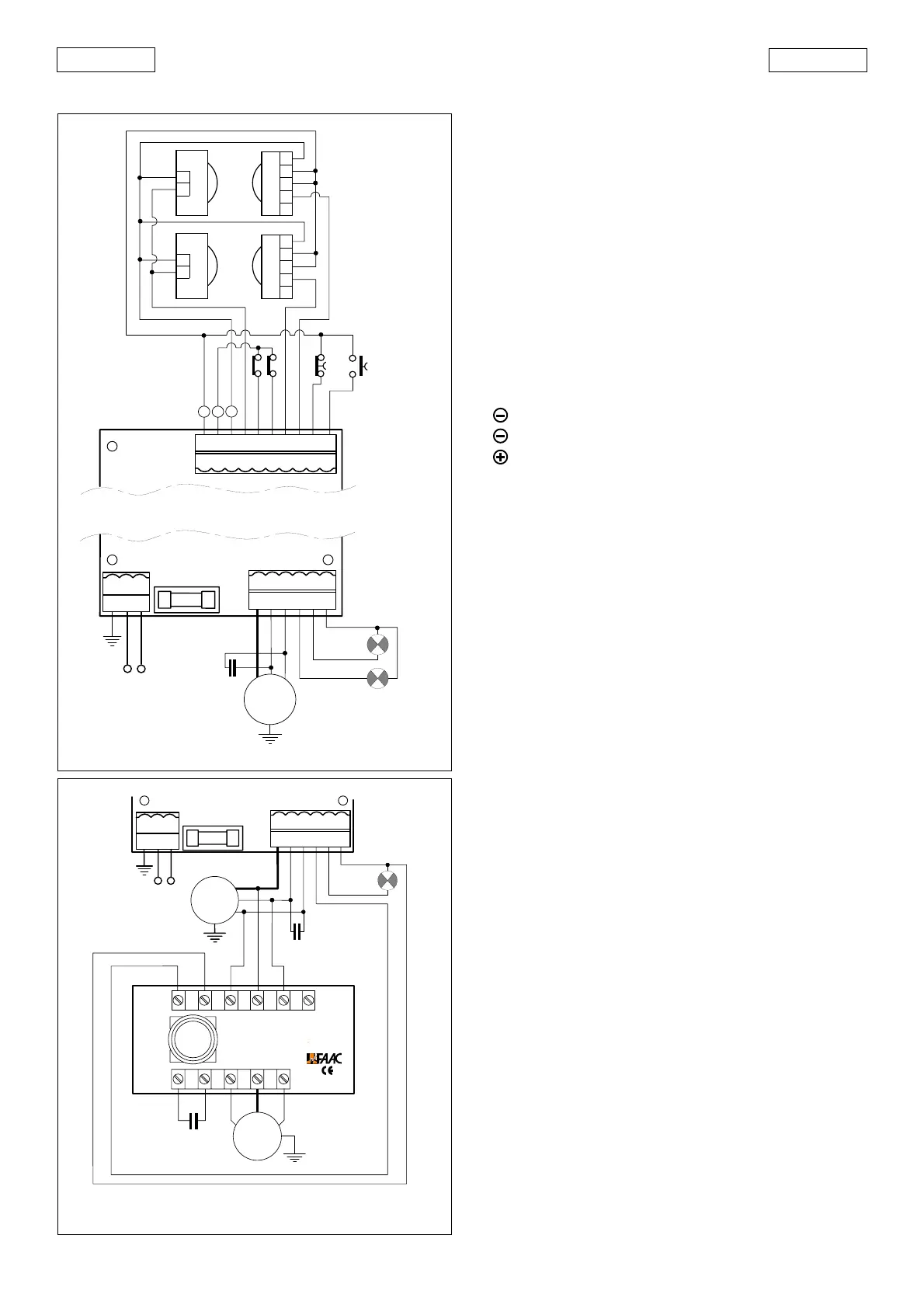

5.1.3. ELECTRIC CONNECTIONS
Fig. 15
5.2. DESCRIPTION
5.2.1. TERMINAL BOARD J1 (high voltage)
Terminal board for power supply 230V~ 50Hz (L= Phase N=Neutral).
Connect the earth wire of the electric system and the earth wire
of the operator to the "PE" terminal.
5.2.2. TERMINAL BOARD J2 (high voltage)
230V~ terminal board for connection of:
Motor: connect motor phases (Black and Brown wires) to the
OP and CL terminals, connect the common (Blue wire)
to the COM terminal. Connect the thrust capacitor in
parallel to the phases.
Flashing lamp: connect a flashing lamp with max. power of 60W
between terminals 15 and 16.
Courtesy lamp: connect the courtesy lamp of the 550 Slave or the
outside courtesy lamp with max. power of 250W between
terminals 14 and 16.
5.2.3. TERMINAL BOARD J3 (low voltage)
1 = = Accessories supply input/Negative common.
2 = = Accessories supply input/Negative common.
3 = = Positive for powering 24 Vdc (+) accessories
Max. load of accessories: 300 mA.
To calculate absorption values, refer to the instructions for
individual accessories.
4 = -FSW TX = Negative for power supply to photocell transmitters.
Separate connection of the transmitters negative enables
use of Failsafe control on the photocells, thus increasing
the system's safety level.
5 = FCA = Opening limit-switch contact (N.C.)
The opening limit-switch (optional) consists of a microswitch
which, when activated by the cam as the door reaches
open position, stops movement according to
programming.
6 = FCC = Closing limit-switch contact (N.C.)
The closing limit-switch (optional) consists of a microswitch
which, when activated by the cam as the door reaches
closed position, stops movement according to
programming.
Ü
If safety devices are not connected, jumper connect "FCC"
and "FCA" to the inputs Common.
7 = FSW OP = Opening safety devices contact (N.C.)
Safety devices are all devices (photocells, sensitive
edges,...) with N.C. contact, which, if there is an obstacle
in the area they protect, operate to stop or reverse door
opening movement (see chapter 5.3.2. - Advanced
programming ).
They have no effect during closing.
If the opening safety devices are engaged with the door
closed, they inhibit any Open pulse.
To install several safety devices, connect the N.C. contacts
in series.
Ü If opening safety devices are not connected, jumper connect
"FSW OP" to "-FSW TX".
8 = FSW CL = Closing safety devices contact (N.C.)
Safety devices are all devices (photocells, sensitive
edges,...) with N.C. contact, which, if there is an obstacle
in the area they protect, operate to reverse door closing
movement. They have no effect at opening, with the
exception of the Ad function (see chapter 5.3.2. -
Advanced programming ).
If the closing safety devices are engaged with the door
open they inhibit any Open pulse.
To install several safety devices, connect the N.C. contacts
in series.
Ü If closing safety devices are not connected, jumper connect
"FSW CL" to "-FSW TX".
230VAC
C
8µF
50Hz
FAACLAMP
MINILAMP
12345678910
11 12
13
14 15
16
PE NL
J3
J2
J1
F1
M
OPEN
STOP
FCC
FCA
-
-
+
FSW CL
FSW OP
-
FSW TX
FSW
CL
EXT. LAMP
COM
OP
CL
5
4
3
2
1
1
2
FSW
OP
5
4
3
2
1
1
2
Fig. 15 bis
C
8µF
550 SLAVE
COM OP CL
456
max
25W
230VAC
C
8µF
50Hz
11 12
13
14
15
16
PE NL
J2
J1
F1
M
550 I
COM
OP
CL
FAACLAMP
MINILAMP
M
550 S
EXT. LAMP
230V~
