FAAC C720 User Manual

C720-C721 3 732568 - Rev.E
햲
햳
햴
햵
햶
햷
햸
햹
햺
Fig. 1
ENGLISH
Translation of the original instructions
C720 - C721
We thank you for choosing our products. We are certain that they will fully meet your needs with respect to the performance that
have been designed for.
These products have been designed and built to control vehicle access. AVOID ANY DIFFERENT USE.
Read this manual provided with the product carefully because it provides important information on safety,
installation, use and maintenance.
1 GENERAL REMARKS
These instructions apply to the following models:
C720 - C721
The above-mentioned models are electromechanical operators designed for sliding gates with different features and technical
specifications.
A practical and functional mechanical lock that acts directly on the motor ensures the gate is locked when the operator is not
working and, therefore, no electric lock needs to be installed.
A convenient manual release device allows the gate to be manoeuvred in the event of a power cut, if emergency batteries are
not installed or if the operator is not in service.

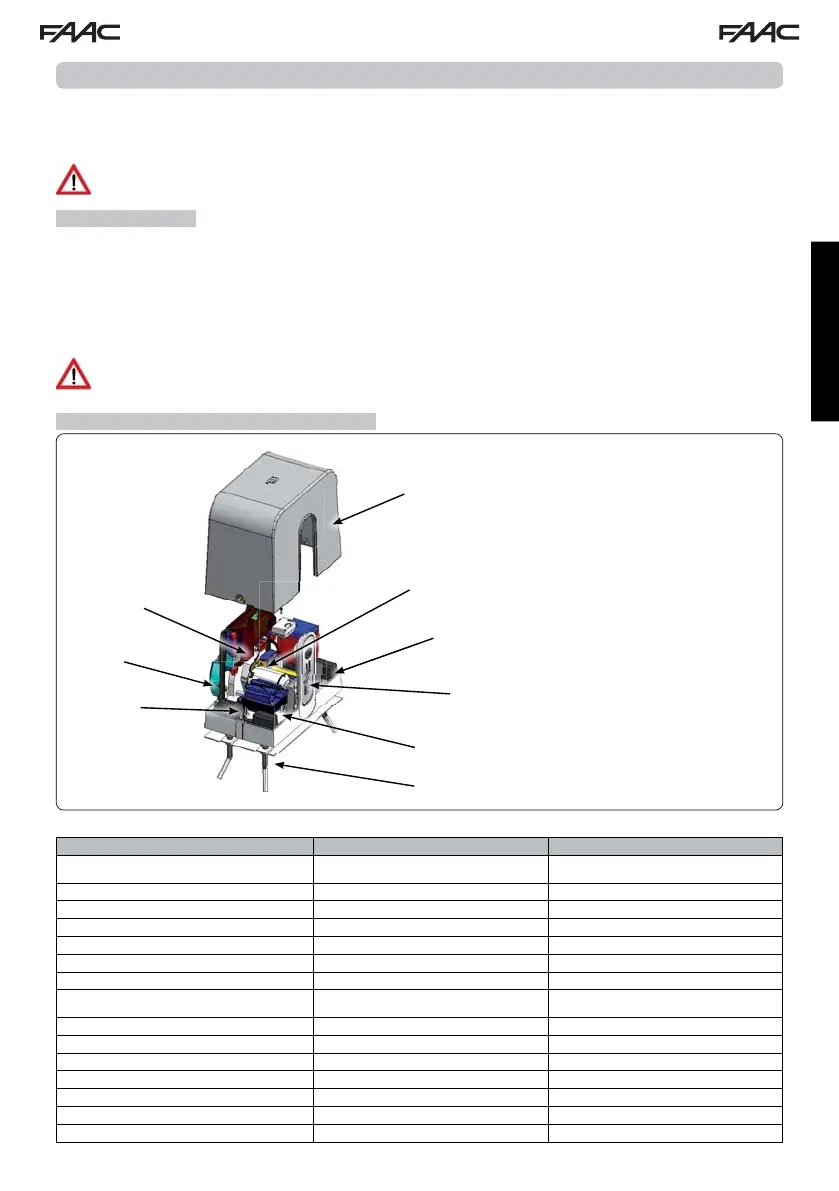

1. Cover casing
2. Motor lock
3. Link cover
4. Motor release handle
5. Transformer
6. Foundation plate
7. Cable passage holes
8. Pinion and pinion cover
9. Electronic board
2 DESCRIPTION AND TECHNICAL SPECIFICATIONS
These operators, in addition to having different features and technical specifications, also differ as to the following
components: motor (larger in the C721), transformer (larger in the C721), pinion (different materials), release lever
(different colours). These assembly instructions apply to both models, unless otherwise specified.
MODEL C720 C721
Power supply
230 V VERSION : 230 V~ 50 Hz
115V VERSION : 115 V~ 60 Hz
230 V~ 50 Hz
Max. Absorbed power (W) 170 290
Thrust on pinion (N) 320 530
Max. Torque (Nm) 18 30
Type of pinion Z28 module 4 Z28 module 4
Gate max. recommended length (m) 15 15
Max. leaf weight (Kg) 400 800
Gate speed (m/min)
min 8
max 18
min 8
max 18
Limit switch type Magnetic Magnetic
Clutch Electronic Electronic
Operating temperature (°C) -20 +55 -20 +55
Gearmotor weight (kg) 610
Protection class IP44 IP44
Gearmotor dimensions See Fig.2 See Fig.2
Use frequency RESIDENTIAL RESIDENTIAL

FAAC C720 Specifications

General

Power Supply	230V AC (+6% -10%) 50Hz
Operating Temperature	-20°C to +55°C
Protection Class	IP44
Protection Rating	IP44
Usage	Residential
Motor Voltage	230V
