C720-C721 6 732568 - Rev.E
Fig. 8
Fig. 10
Fig. 9
햲
햲
ENGLISH
Translation of the original instructions

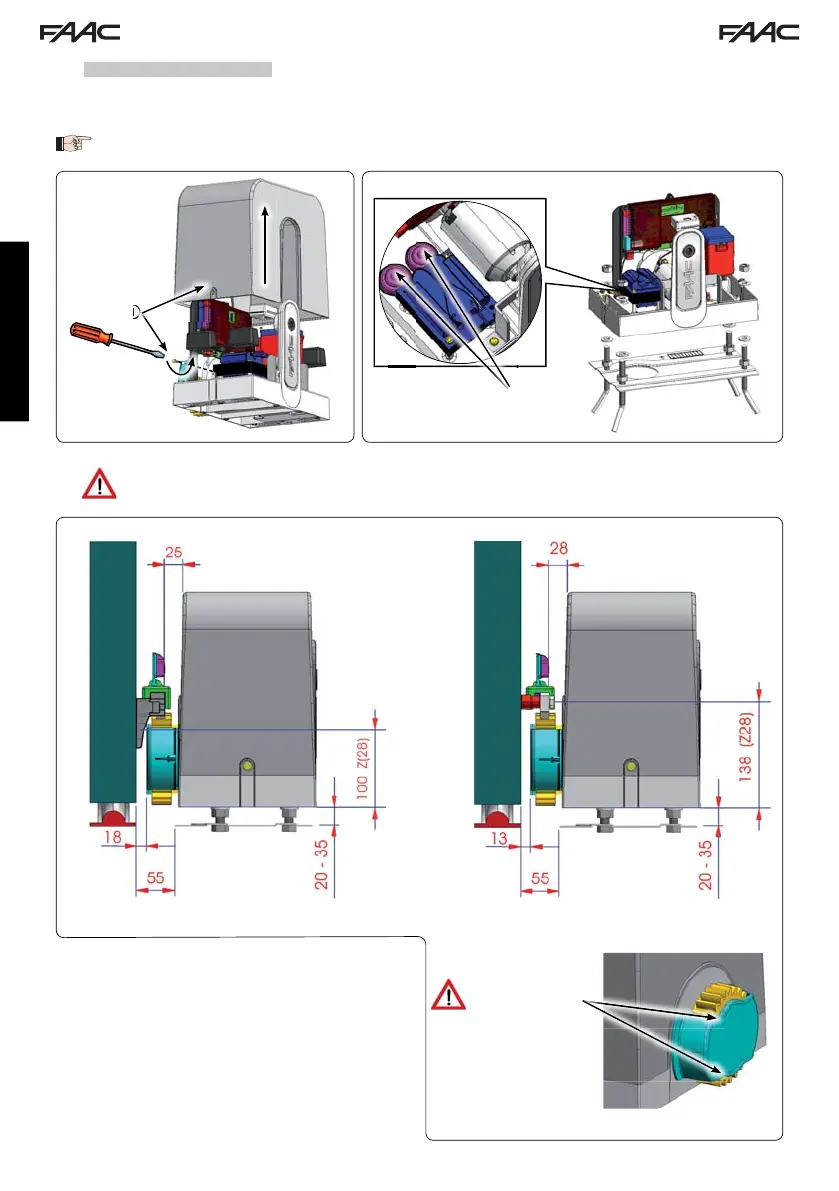

5.3 MECHANICAL INSTALLATION
1. Remove the cover casing by loosening the two suitable side bolts and lifting it (Fig. 8).
2. Position the operator on the foundation plate using the nuts and washers provided as shown in Fig. 9. During this operation,
pass the cables though openings in the motor casing (see Fig. 9 re.
햲).
Dimensions in mm with rack in
REINFORCED NYLON
Dimensions in mm with rack in
GALVANISED STEEL
3. Adjust the height of the gearmotor and the distance from the gate with reference to the dimensions in Fig. 10.
Operation required for correct fastening of the rack and to keep open the option of new adjustments.
4. Secure the gearmotor to the plate by tightening the fasten-
ing nuts.
5. Prepare the gearmotor for manual operating mode as
described in paragraph 8.
Make sure that
the gate, or
parts of it,
doesn’t touch the
pinion support during
the whole movement.
Fig. 8 and Fig. 9 refer to operator C720
