8 MEMORY STORING THE RADIO CODE
The control unit has an integrated 2-channel decoding system
(DS, SLH, LC) named OMNIDEC. This system makes it possible to
memory-store both total opening (OPEN A) and partial opening
OPEN B) of the automated system - this is made possible by an
additional receiver module (fig.3A ref. ) and Fig.3B ref. 1 for
E024S for 391) and radio controls on the same frequency.
The 3 types of radio codes (DS, LSH, RC) cannot
coexist.
Only one radio code can be used at a time.
8.1
MEMORY STORAGE OF DS RADIO CONTROLS
A maximum of two codes can be stored. One
on the OPEN A channel and one on the OPEN B
channel.
On the DS radio control, select the required ON-OFF
combination for the 12 dip-switches.
Press the LOGIC (SW3) or SPEED (SW2) push-button, to
memory store respectively total opening (OPEN A) or partial
opening (OPEN B), and as you hold it down, also press the
SETUP (SW1) push-button. The relevant LED starts to flash
slowly for 5 sec.
Release both push-buttons.
Within these 5 sec., press the appropriate push-button on
the radio control.
The relevant LED lights up on steady beam for 1 second and
then goes OFF, indicating that storage was executed.
To add other radio controls, set the same ON - OFF
combination used in point 1.
8.2
MEMORY STORAGE OF SLH RADIO CONTROLS
A maximum of 250 codes can be memory
stored, split between OPEN A and OPEN B.
On the SLH radio control, simultaneously press and hold
down push-buttons P1 and P2.
The radio control LED begins to flash.
Release both push-buttons.
Within 5 s, while the radio control LED is still flashing, press and
hold down the selected push-button on the radio control
(the radio control LED lights on with steady beam).
Press the LOGIC (SW3) or SPEED (SW2) push-button to
respectively memory store total opening (OPEN A) or
partial opening (OPEN B) and, by holding it down, press the
push-button SETUP (SW1
The LED on the board lights up on steady beam for 1
second and then goes OFF, indicating that storage was
executed.
Release the radio control push-button.
Quickly press twice the memory stored radio control push-
button.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
7.
8.
7.2 MEMORY STORAGE OF BUS ACCESSORIES
You can add the BUS photocells to the system at any time,
simply by memory-storing them on the board, observing the
following procedure:
Install and program the accessories using the required
address (see paragraph 7.1)
Cut power to the board.
Connect the two accessories cables to the red terminal-
board J10 (any polarity will do).
Power up the board, taking care to first connect the main
power supply (transformer output) and then any batteries
and wait for the BUS LED to light on.
Quickly press once only the SW1 (SETUP) push-button, to
execute learning. The BUS LED flashes.
Give an OPEN impulse, leaves will move and the BUS
learning procedure is over.
The board has memory stored the BUS accessories. Follow the
instructions in the table below to check if the BUS connection
is correct.
Tab. 4 - Description of BUS LED
Steady light
Normal operation (LED ON even in the
absence of photocells)
Slow flashing
lamp (flash
every 0.5 sec)
At least one input engaged: photocell
engaged or not aligned, Open A or Open
B or Stop input engaged
Light OFF
(flash every 2.5
sec)
BUS line short circuited
Fast flashing
lamp (flash
every 0.2 sec)
If you have detected a BUS connection
error, repeat the acquisition procedure. If
the error is repeated, make sure that there
is no more than one accessory with the
same address in the system (also see the
accessories instructions)
1.
2.
3.
4.
5.
6.
To change over from one code to another, you must
delete the existing one (see paragraph on deletion),
and repeat the memory-storage procedure.

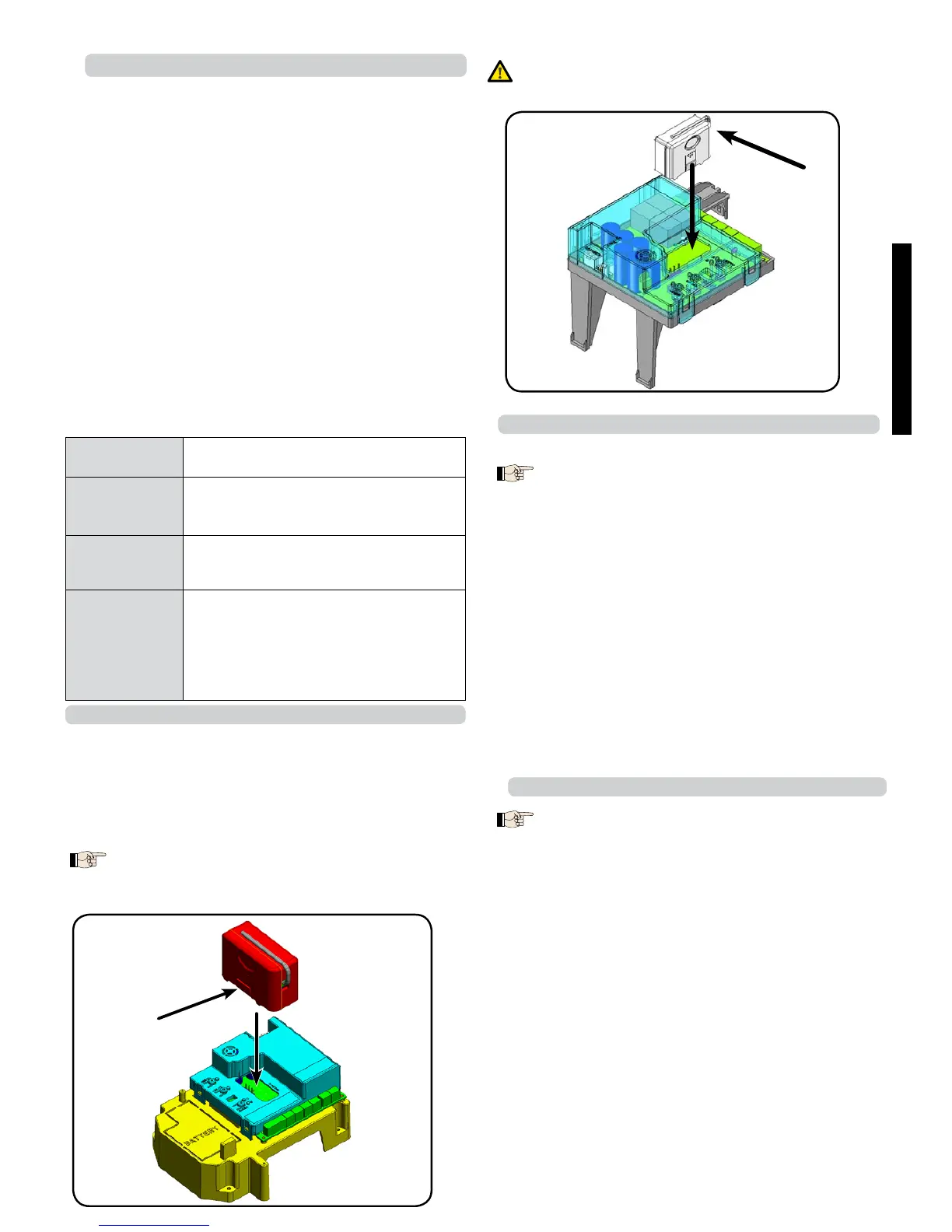

Fig. 3B
Fig. 3A
E024S on 391
E024S in box
ENGLISH
