FAAC E024S Manual

~
=
=
=
=
1 WARNINGS
Before attempting any work on the control unit (connections, maintenance), always turn off power.
- Install, upstream of the system, a differential thermal breaker with adequate tripping threshold,
- Always separate power cables from control and safety cables (push-button, receiver, photocells, etc.).
- To avoid any electrical disturbance, use separate sheaths or a shielded cable (with the shield earthed).
CONTROL UNIT E024S fitted on 391

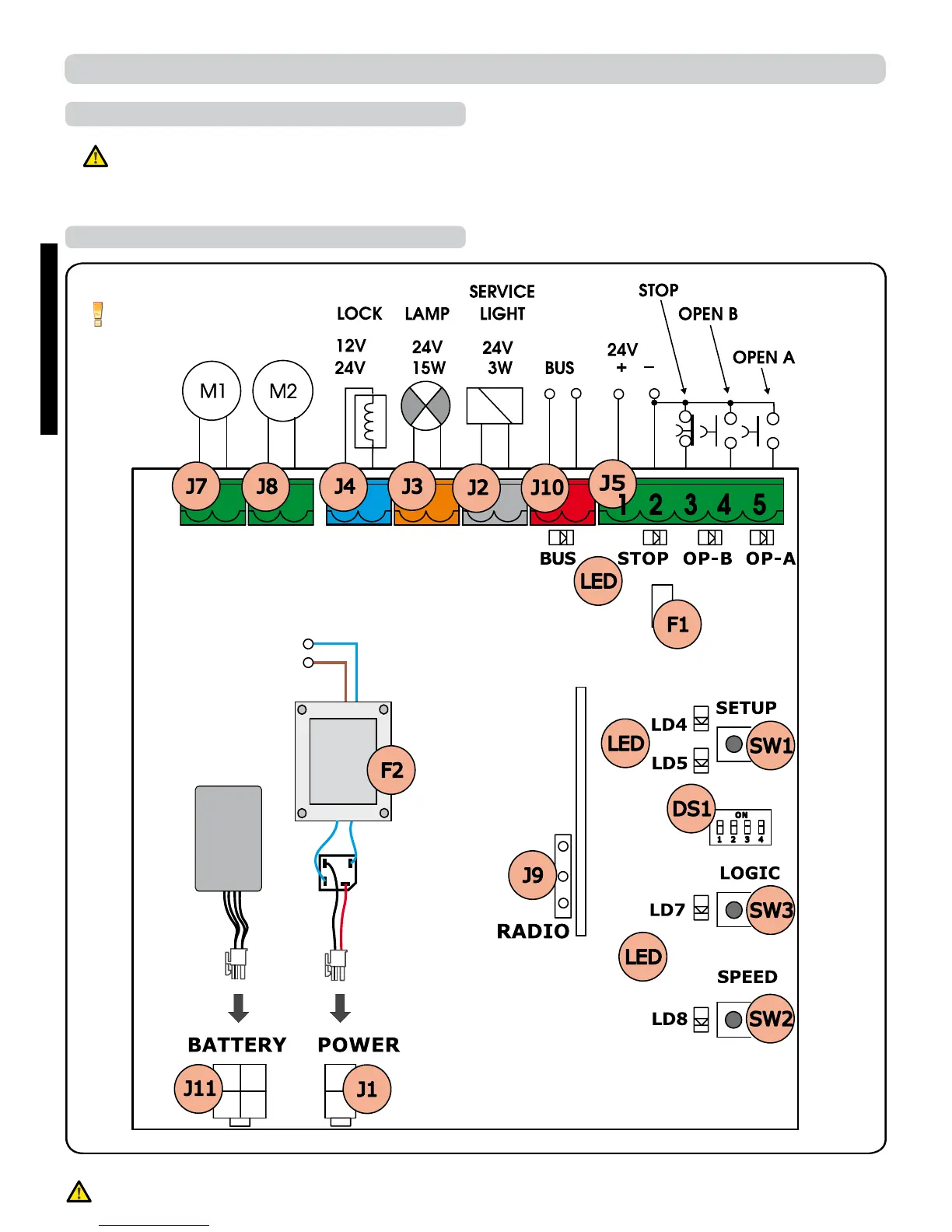

2 LAYOUT AND CONNECTIONS
(PARTIAL OPENING)
(TOTAL OPENING)
230 V~ 50HZ
or
115 V~ 60Hz *
1
*
1
THE POWER SUPPLY IS RELATED TO THE E024S PURCHASED VERSION.
Fig. 1B
Motors connection
2x2.5 mm ² / AVG 12
for motor (minimum)
(Max. length 20 m)
ENGLISH
4

FAAC E024S Specifications

General

Motor Output Voltage	24V DC
Operating Temperature	-20°C to +55°C
Housing	ABS
Power Supply	230 Vac ± 10% 50/60 Hz
Outputs	2
