FAAC E045 Quick Guide

E045 6 732785 - Rev.D
ENGLISH
Translation of the original instructions

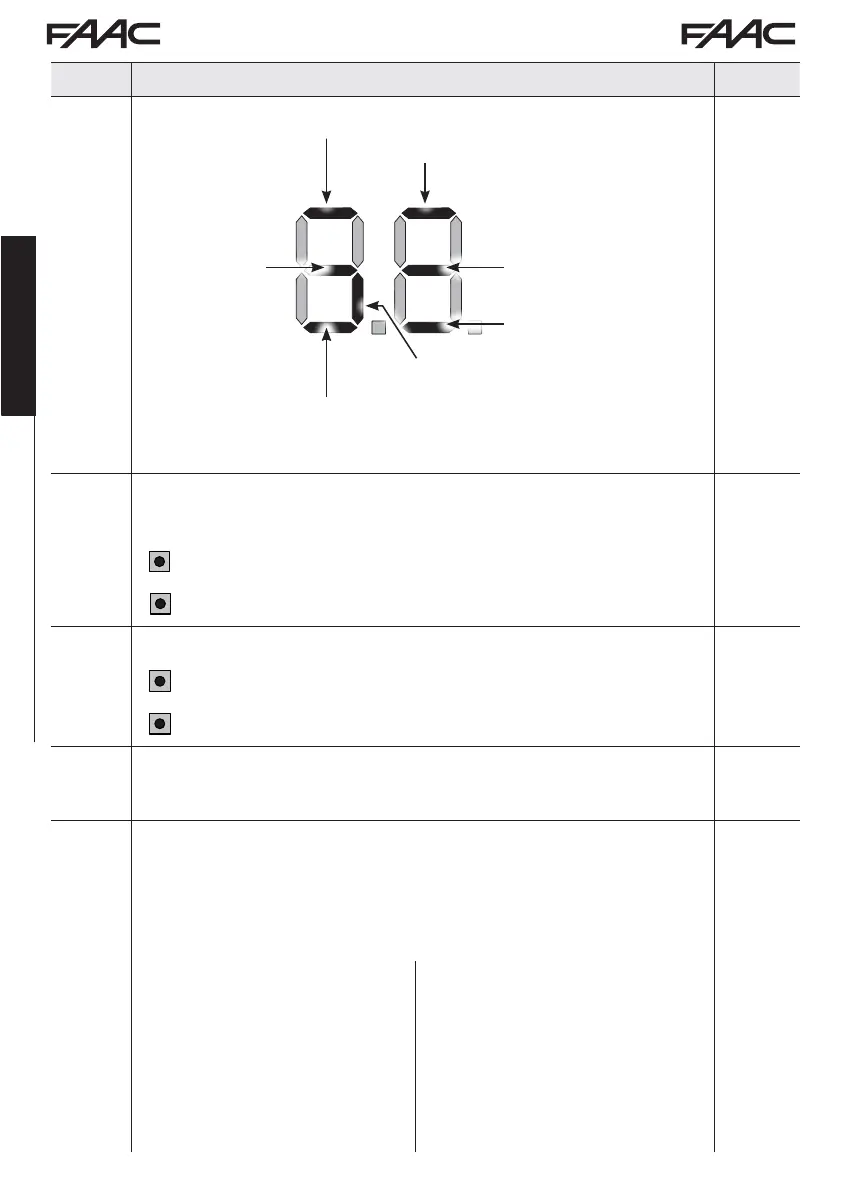

Display Basic Function Default
Encoder 1: ON = connected and
registered correctly
Encoder 2: ON =
connected and registered
correctly
BUS Status:
always ON
OPEN Photocell:
ON = registered and committed
Opening and
closing photocells: ON = registered and committed
Closing photocells:
ON = registered and committed
Opening
and closing
photocells:
ON = registered
and committed
M2
MOTOR 2 dead-man DRIVE mode (only displayed with the Mn = 2
function):
+
/ R
1
OPENS (displaying oP) for as long as the button is pressed
-/ R2
CLOSES (displaying cL) for as long as the button is pressed
--
M1
MOTOR 1 dead-man DRIVE mode:
+
/ R1
OPENS (displaying oP) for as long as the button is pressed
-/ R2
CLOSES (displaying cL) for as long as the button is pressed
--
tL
WORK TIME LEARNING OPERATIONS (SET UP):
Refer to the relative paragraph.
--
St
STATUS OF THE AUTOMATED SYSTEM:
1. set the selection:
Y to SAVE and EXIT programming
no to EXIT programming WITHOUT SAVING
2. press F to confirm; when completed, the status of the automated system
will appear on the display once again:
Y
00 = CLOSED
01 = OPEN
02 = Stationary and then “OPENS”
03 = Stationary and then “CLOSES”
04 = In “PAUSE”
05 = Opening
06 = Closing
07 = FAIL SAFE in progress
08 = Verifying BUS-2EASY devices
09 = Pre-flashes and then “OPENS”
10 = Pre-flashes and then “CLOSES”

FAAC E045 Specifications

General

Brand	FAAC
Model	E045
Category	Control Unit
Language	English
