UK/IRL
12 < < < <
restrictor. Remove the flue restrictor!
When calculating on basis of theMV150 table nr. 4: Allowed but without
flue restrictor. Remove the flue restrictor!
When calculating on basis of the Roundscreen table nr. 5: Allowed but
without flue restrictor. Remove the flue restrictor!
Example calculation 2

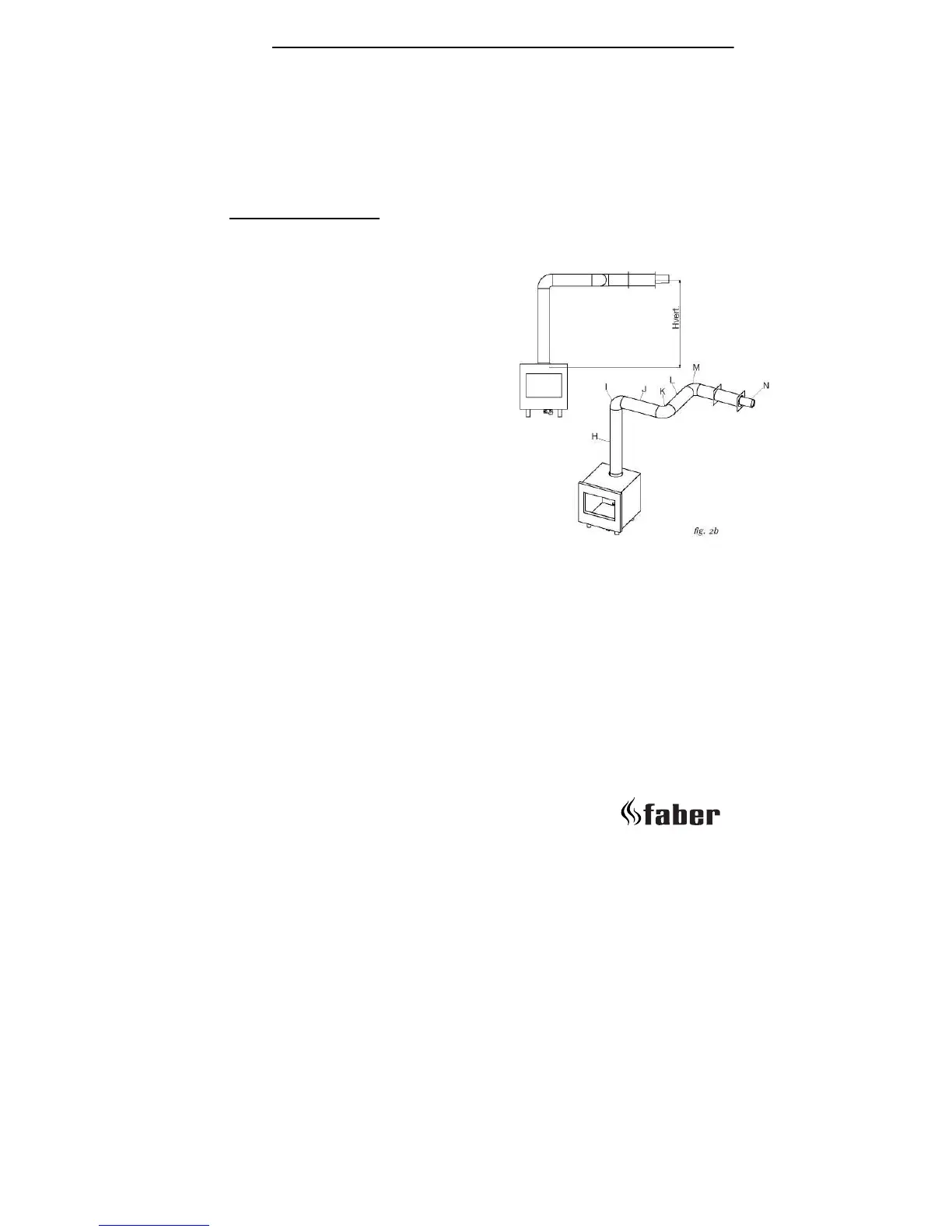

Calculation horizontal extension fig. 2b:
Flue lenght J + L = 0,5 + 0,5 1 m
Elbows K + M = 2m + 2m 4 m
Terminal 1 m
Total horizontal extension 6 m
Calculation effective height (Hvert)
Flue lenght H 1 m
When calculating on basis of the
Widescreen table nr. 2: Combination not
allowed.
When calculating on basis of the MV100
table nr. 3: Allowed but without flue
restrictor. Remove the flue restrictor!
When calculating on basis of the MV150
table nr. 4: Combination not allowed.
When calculating on basis of the Roundscreen table nr. 5: Combination
not allowed.
4.3 Tables for determining the right flue restrictor
Calculate the total horizontal- and vertical length of the flue, according
to the calculations displayed above. Determine according to tables 2, 3, 4
and 5 on the following pages the right flue restrictor size. When meeting
an X, and when the values are outside the table, the combination is not
allowed. Normally the 30 mm flue restrictor is preinstalled.
