Faber STRATUS NB Series - Wiring Preparation

12

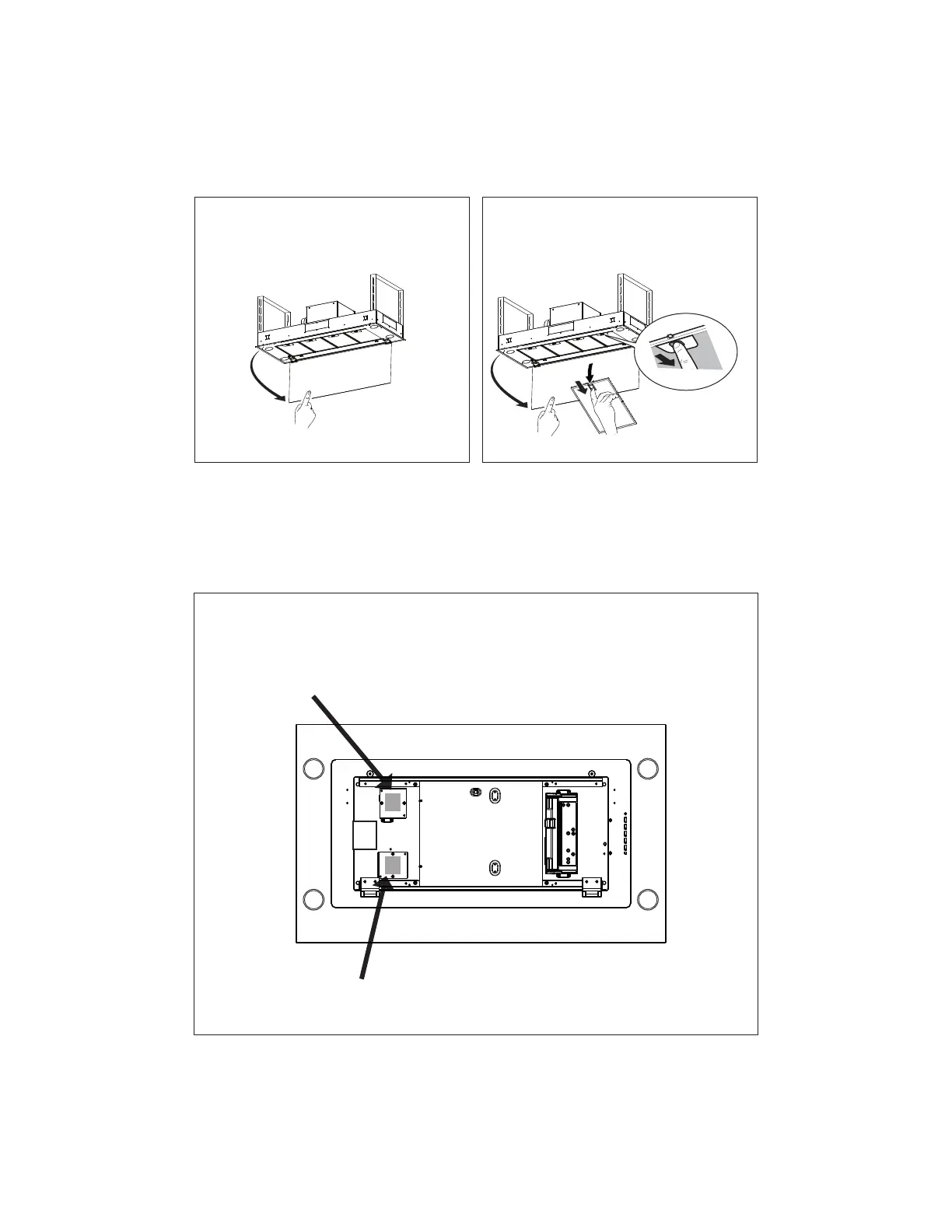

2SHQWKH¿OWHUFRYHUSDQHO7KH¿OWHUFRYHUSDQHO
is held by a magnet catch, pull down with enough
force to release as shown below.
5HPRYHWKHJUHDVH¿OWHUVRQHDWDWLPHSXVKLQJ
them towards the back of the unit, and at the
same time pulling downward and set aside.
12
WIRING PREPARATION
WIRING BOX 1 for
connecting the Home
power supply cable
with the Hood.
WIRING BOX 2
for connecting the
External Blower with
the Hood.
+RXVH3RZHU6XSSO\&DEOH:LULQJ%R[5HPRWH%ORZHU:LULQJ%R[
Choose wiring method based on blower type
1
2
