15
1
3

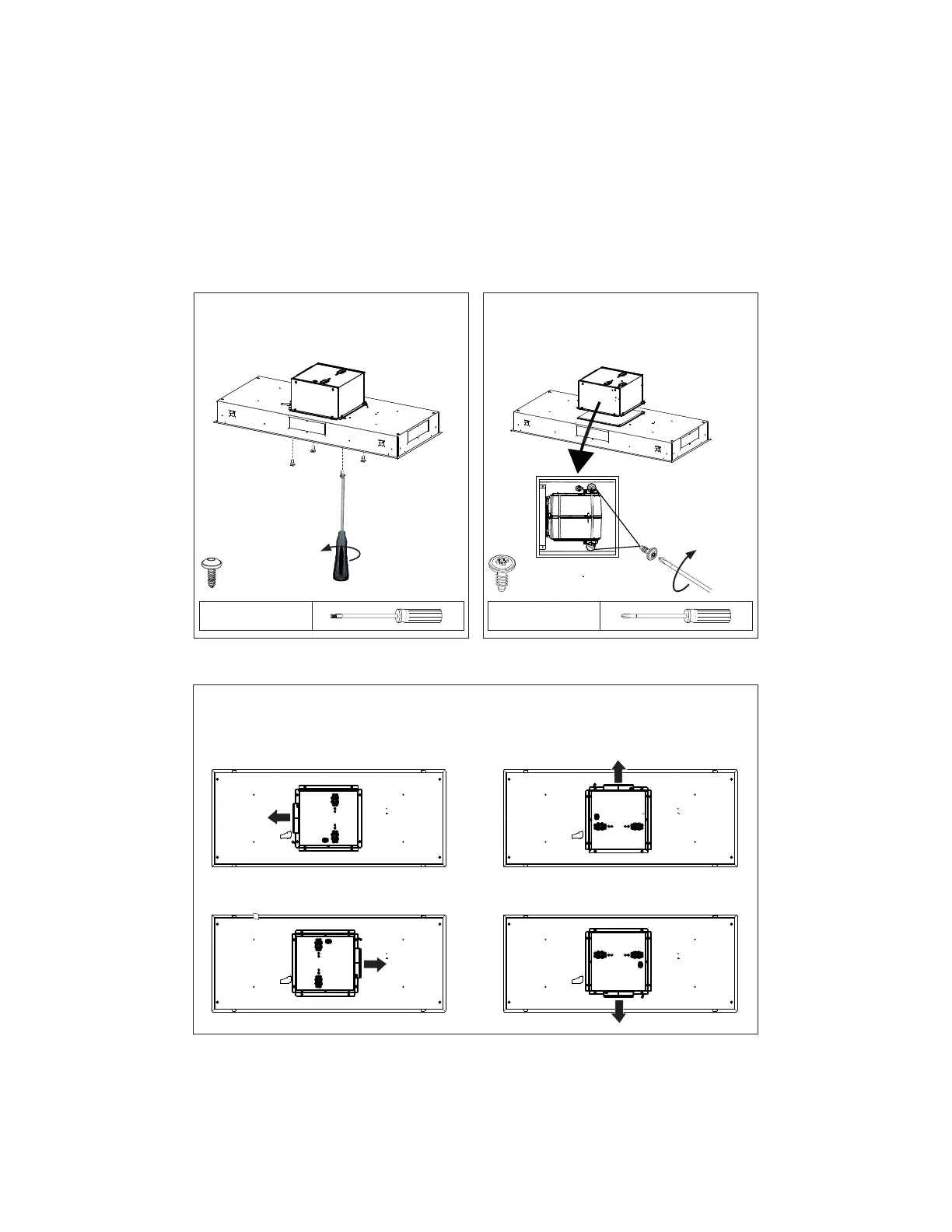

Unfasten the 4 screws to dismount the
Box for the blower.
The blower can be positioned in four different venting directions as shown.
Rotate the Box with Blower in the correct position.
2
Position Internal Blower as shown into the
removed Blower Box. Secure the Internal
Blower in the Blower Box with the two screws
provided with the Internal Blower.
INTERNAL BLOWER INSTALLATION
Left
Right
Back
Front
Separate Box and Range Hood
Choose the Box position (Left-Right-Back-Front)
Attach the Internal Blower
Phillips ScrewdriverTorx Screwdriver
OI\RXXVHWKHLQWHUQDOEORZHUNLW,%NLWRU,%NLWRU,%NLWSOHDVHWKURZDZD\WKHWKHÁDQJH
%DQGWKHFDEOH%JLYHQZLWKWKHLQWHUQDOEORZHUNLWVKRZQRQSDJHDQGXVHRQO\µ)ODQJH
To Next Page
