Fagor BCS3D - Connection between Cncelite & QC-CD-X-Fx-X Spindle Drive

Installation Manual
Ref.2403 | Beta EtherCAT Servo 3 Drive series BCS3D EtherCAT - 27|52

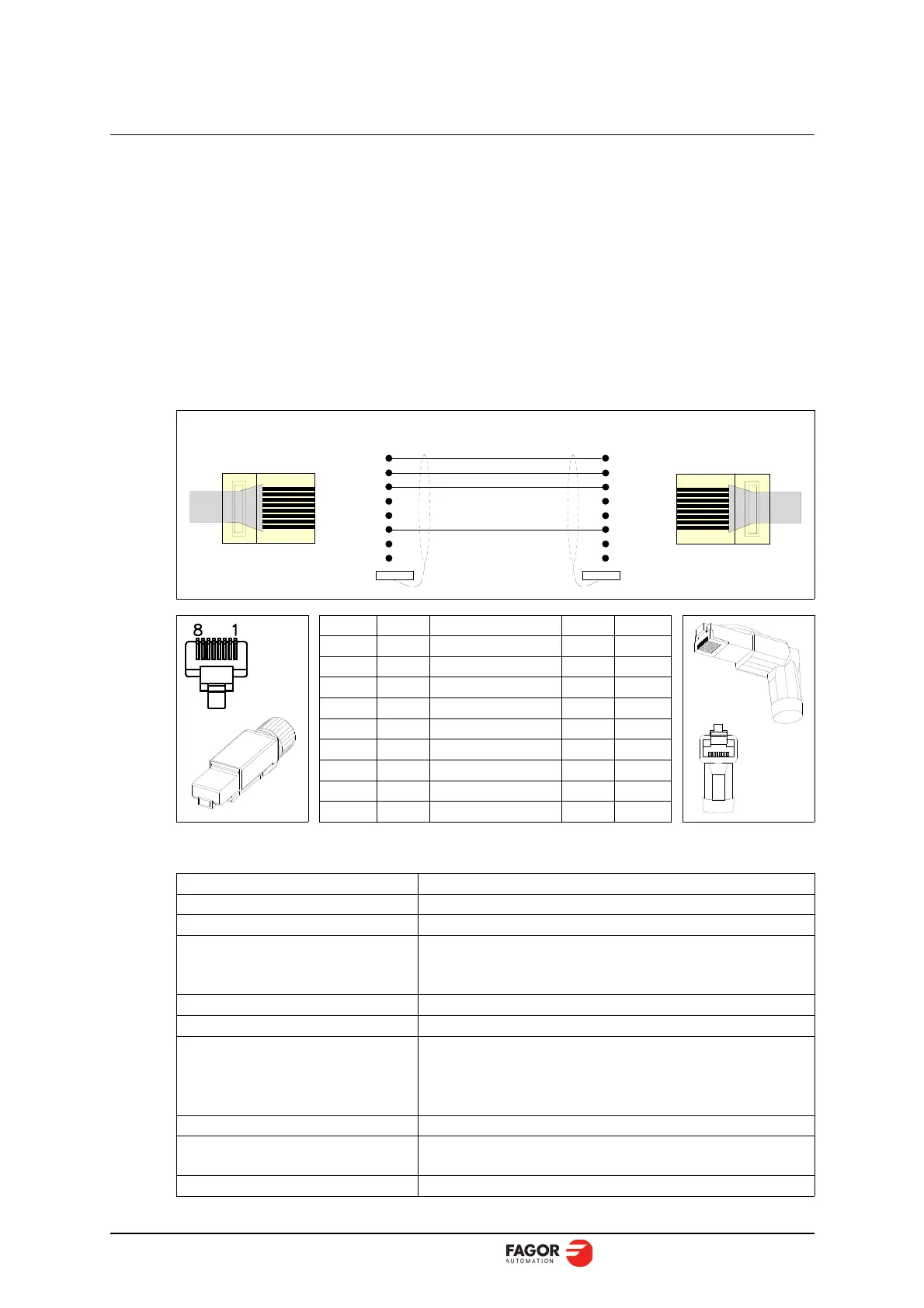

3.4 Connection between CNC elite & QC-CD-x-Fx-x Spindle Drive
Cable name: QC-FBC- 
Cable between CNCelite communications board SERCOS III · B10 connector · and QC-CD-
 -F  -  spindle compact single-drive · B10B connector · .
Length
 : 1/2/3/5/7 m.
Cable name: QC-FBC-FLEX- 
Cable between CNCelite communications board SERCOS III · B10 connector · and QC-CD-
 -F  -  spindle compact single-drive · B10B connector · .
Length
 : 10/15/20/25/30/35/50/60/75/100 m.
Pinout
2x RJ-45 connectors.
Characteristics
PIN SIGNAL DESCRIPTION SIGNAL PIN
1TD + T ransmission D ata + TD + 1
2TD -
T ransmission D ata - TD - 2
3RD +
R eceiver D ata + RD + 3
4
- - - 4
5
- - - 5
6RD -
R eceiver D ata - RD - 6
7
- - - 7
8
--- 8
Housing SHield Screening SHield Housing
Reference
QC-FBC-

Frequency Up to 100 MHz
out approx. 6.5 mm
Type
SERCOS III industrial cable, AWG22 type B, shielded.
4 wires (twisted pairs).
CAT 5. Suitable for flexible assemblies.
Characteristic impedance 100  ± 15 
Sheath colour RAL 6018. Yellowish green.
Flexibility.
Bending radius
Minimum static bending radius: 3 x out.
Minimum dynamic bending radius: 5 x out.
Torsional strength: ± 180 º in 1 meter,
30 000 cycles.
Outer sheath PVC. PolyVinylChloride
Permissible temperature range
Work: - 40 °C ... + 70 °C (- 40 °F ... + 158 °F)
Storage: - 20 °C ... + 60 °C (- 4 °F ... + 140 °F)
Connectors RJ-45, IP 20
S H
I E L D
1
2
3
4
5
1
2
3
4
5
P i n
P i n
6
7
8
C N C
e l i t e
· B 1 0 ·
Q C - C D - X - F X - X · B 1 0 B ·
6
7
8
T D +
T D -
H O U S I N G
H O U S I N G
S H
I E L D
R D +
R D -
T D +
T D -
R D +
R D -
QC-CD-  -F  -  · B10B ·CNCelite · B10 ·
